Isothermal Carousel LN2 Freezer

Item #:ASISOTHERMCAR1

5 Years Vacuum, 2 Years Electronics/Parts

Item Number
77301C
77302CEH
77501C
77502CEH
Model Number
V-3000AB-C
V-3000EHAB-C
V-5000AB-C
V-5000EHAB-C
LN2 Capacity
70 L
89 L
93 L
140 L
Exterior Dimensions: w x d x h
c
37 x 48 54.5 in. | 939 x 1219 x 1384 mm
47 x 54 x 49.5 in. |  1194 x 1372 x 1257 mm
47 x 54 x 54.5 in. |  1194 x 1372 x 1384 mm
Interior Dimensions: h x dia
27 x 29 in. | 686 x 737 mm
36 x 29 in. | 914 x 737 mm
29 x 38 in. | 737 x 965 mm
34 x 38 in. |864 x 965 mm
Max Storage: Vials [2 mL]
16,800
21,000
36,400
42,000
Max Storage: Blood Bags [50 mL]
876
1,168
1,736
1,984

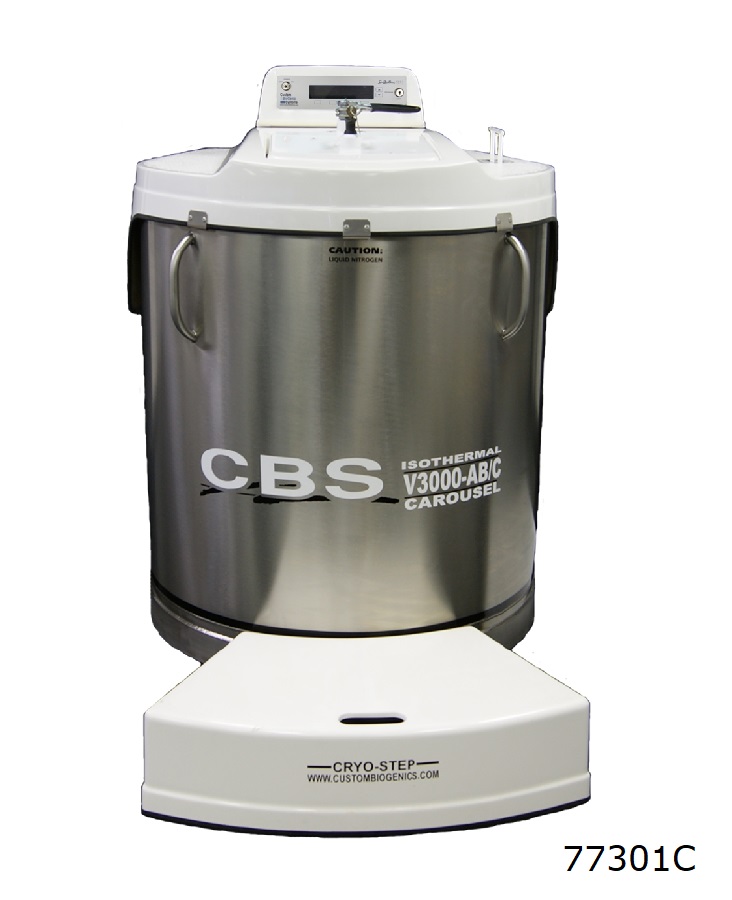

Isothermal Carousel LN2 Freezer

Custom BioGenic Systems V3000-AB/C Isothermal Carousel Liquid Nitrogen Freezers offer liquid nitrogen storage temperatures without liquid nitrogen contact. Liquid nitrogen is stored in our patented jacketed space in the wall of the freezer. This technology offers safe dry storage for your samples. With no liquid nitrogen in the storage area the risk of cross contamination and the safety risks associated with the handling of liquid nitrogen are greatly reduced. Our built-in carousel can be safely rotated with an external handle, there is no need to reach inside the freezer and our square lid opening won't restrict access to square racks. All Isothermal Carousel freezers use our time tested and reliable 2301 controller with a dual temperature display, autofill and many additional features. Custom BioGenic Isothermal Carousel Liquid Nitrogen Freezers have an industry best temperature gradient that averages -193°C inside the storage area.

Features:

  • No need to remove one rack to access another
  • No unnecessary exposure to room temperatures
  • Carousel is rotate from outside of the freezer reducing the risk of injury or temperature fluctuations
  • Exceptional temperature uniformity
  • Easy access to samples from the front of the freezer
  • Removable console allows for complete access to the sample storage space if necessary
  • CBS Isothermal Carousel Freezers are cooled by a patented liquid nitrogen jacket, with no liquid in the sample storage space
  • The only true dry storage freezer available
  • No risk of cross-contamination though liquid nitrogen contact without the need for special packaging
  • The isothermal design also provides added user-safety eliminating contact with or splashing of liquid nitrogen.

Accommodates:

  • Aluminum square racks
  • Stainless steel square racks
  • Vertical racks
  • Mini racks
  • Canister and frame systems
  • Vials
  • Boxes
  • Canisters / Cassettes
  • Platform dividers



Our 2301 controller is time tested, reliable and designed to keep your sample storage safe and secure.

New 16 Port Connector:

  • 0-5 volt outputs provide temperature & level data for connection to existing alarm/monitor system.
  • 4-20 mA outputs provide temperatur & level data for connection to existing alarm/monitor system.
  • Sequential and One-Fill-All-Fill input and output connection for filling systems.

New two level temperature display option:

  • Temp. A displays temperature at the lid, approximately 11" (27.94 cm).
  • Temp. B displays temperature inside the storage space, approximately 20" (50.80 cm)

Additional Features:

  • Records 12 alarms & events such as fill start, fill stop, etc. with dated time stamp, printed or displayed.
  • Download cryomonitor data files to PC and convert them .csv files for use in Microsoft Excel.
  • Ethernet and auxiliary RS485 for future expansion.
  • Dedicated 24Vdc signal output to activate a third 24Vdc valve to control the LN2 supply.
  • Global Remote Alarm-Dry contact that switches during any alarm condition.
  • Date Log- Print or display Temp. A, Temp. B and level with date and time stamp.

PNCBSCYRO

Type
Isothermal Carousel LN2 Freezer
Alarm
2301 Controller
SKU Number Alarm Capacity (Liters) Type 2.0 mL Vial Capacity 25-Well Box Capacity 81/100-Well Box Capacity Web Price Quantity Add to Cart
77301C 2301 Controller 70 L Isothermal Carousel LN2 Freezer 16,800 Please Inquire 168
33945.82
Each
77302CEH 2301 Controller 89 L Isothermal Carousel LN2 Freezer 21,000 Please Inquire 210
31810.00
Each
77501C 2301 Controller 93 L Isothermal Carousel LN2 Freezer 36,400 Please Inquire 364
40512.17
Each
77502CEH 2301 Controller 140 L Isothermal Carousel LN2 Freezer 42,000 Please Inquire 420
41470.86
Each
