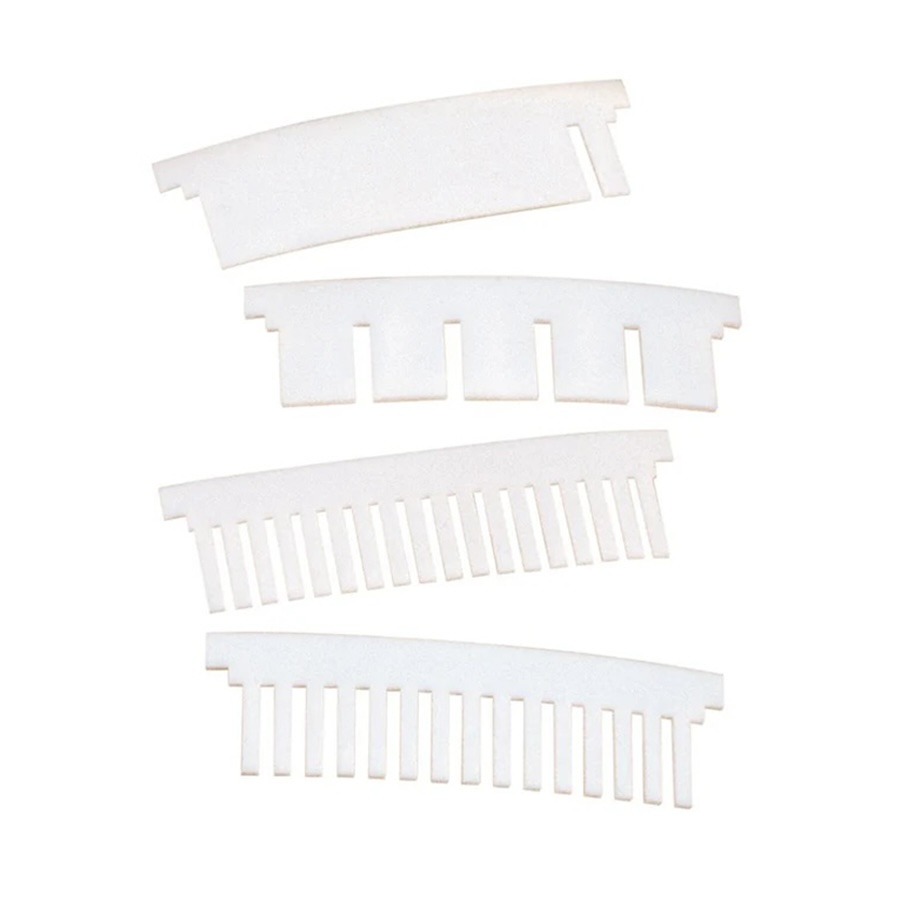

Hoefer® Standard and Preparative Combs for Mini Vertical Systems

Compatible with SE300 MiniVE, SE260, and the SE250 Series Vertical Electrophoresis Systems.

Precision machined from Teflon®, which is highly resistant to acids, bases, and all commonly used buffer systems. An important benefit of Teflon® combs, compared to other types, is that they are easily removed while maintaining gel integrity. They are lightweight and virtually unbreakable when used with reasonable care. Some combs have microtiter spacing for use with multi-channel pipettes. (See Specifications.)

Standard Combs come attached to a standard back, which produces maximum well depths of 25 mm, except for the 28-well combs, which produce well depths of 15 mm.

• 9- and 18-well Standard Combs have microtiter spacing for use with multichannel pipettes.
• Preparative Combs have adjustable comb backs (10, 15, and 25 mm depth) and form 1 large preparative well plus 1 or 2 small reference wells.

Specifications


Item #	Type	Wells	Teeth	Thickness	Width	Depth
SE211A-5-75	Standard Comb	5 Wells	5 Teeth	0.75 mm	13 mm	9.8 mm
SE211A-5-10	Standard Comb	5 Wells	5 Teeth	1 mm	13 mm	13 mm
SE211A-5-15	Standard Comb	5 Wells	5 Teeth	1.5 mm	13 mm	19.5 mm
SE211A-9-10	Standard Comb, w/ Microtiter Spacing	9 Wells	9 Teeth	1 mm	5.8 mm	5.8 mm
SE211A-10-75	Standard Comb	10 Wells	10 Teeth	0.75 mm	4.8 mm	3.6 mm
SE211A-10-10	Standard Comb	10 Wells	10 Teeth	1 mm	4.8 mm	4.8 mm
SE211A-10-15	Standard Comb	10 Wells	10 Teeth	1.5 mm	4.8 mm	7.2 mm
SE211A-12-10	Standard Comb	12 Wells	12 Teeth	1 mm	4.75 mm	4.75 mm
SE211A-15-75	Standard Comb	15 Wells	15 Teeth	0.75 mm	2.9 mm	2.2 mm
SE211A-15-10	Standard Comb	15 Wells	15 Teeth	1 mm	2.9 mm	2.9 mm
SE211A-15-15	Standard Comb	15 Wells	15 Teeth	1.5 mm	2.9 mm	4.4 mm
SE211A-18-10	Standard Comb, w/ Microtiter Spacing	18 Wells	18 Teeth	1 mm	2.9 mm	2.9 mm
SE211A-R-75	Preparative Comb	1/1 Wells	1/1 Teeth	0.75 mm	68/5 mm	51/3.8 mm
SE211A-R-10	Preparative Comb	1/1 Wells	1/1 Teeth	1 mm	68/5 mm	68/5 mm
SE211A-R-15	Preparative Comb	1/1 Wells	1/1 Teeth	1.5 mm	68/5 mm	120/7.5 mm
