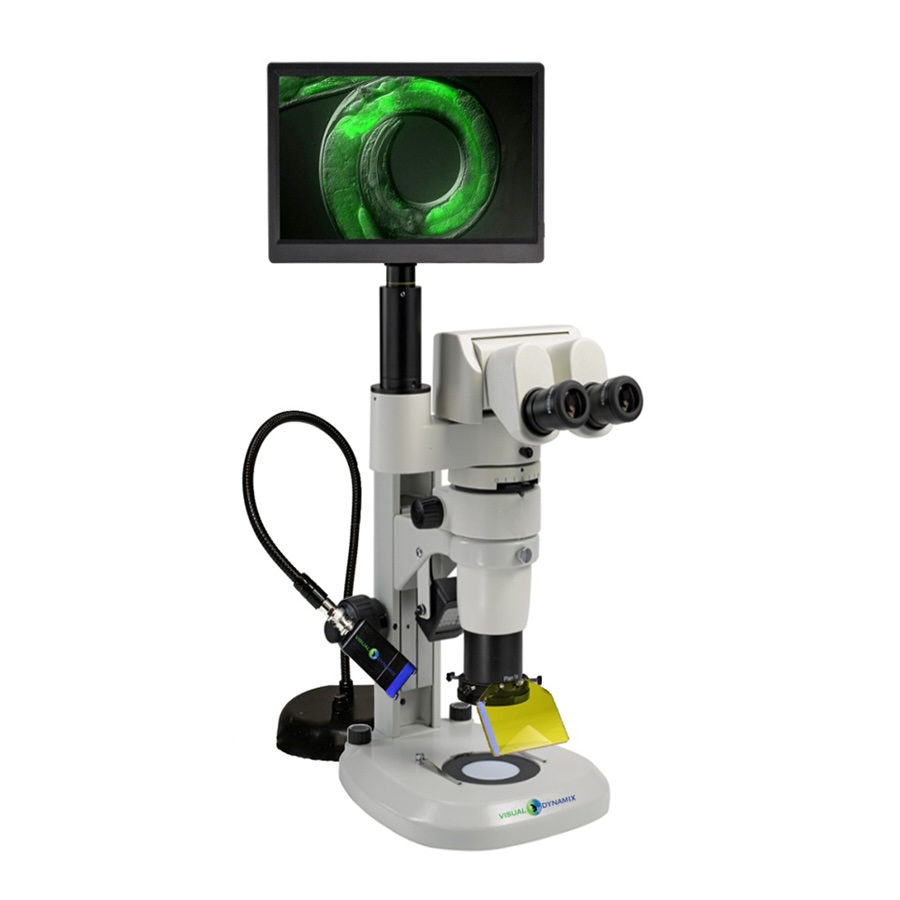

Z Series Custom Stereo Microscopes

Z Series microscopes are the next revolution in stereo microscopy. With their large zoom ranges and enhanced optics, the Z series scopes cover you from macro to micro applications - all on one scope.

The scopes are built on a parallel optical system, producing images that are both high in contrast and resolution. Using a single common objective and having two independent zoom paths, users will experience magnificent images with incredible depth of focus. Never before have users been able to see such depth in one, unfocused image. Coupled with this advanced optical system, the scope offers both Plan and Plan APO objectives in multiple magnifications, providing a vast range of magnifications for a wide variety of applications.

In addition to the unsurpassed image quality, the scope has unprecedented ergonomics, and users can select from a wide assortment of accessories to enhance the workflow. All the scopes are modular and building block designs, so we can configure the scope to meet your immediate needs, all while keeping your future needs in mind with upgradeability. Techniques like fluorescence, oblique illumination, and micromanipulation are all readily available with the Z Series scopes.

Contact us for a quote and custom configuration of any of the Z series scopes.

Specifications


Item #	SMZ-12-CUSTOM	SMZ-10-CUSTOM	SMZ-8-CUSTOM	SMZ-6-CUSTOM
Zoom Ratio	12:1	10:1	8:1	6:1
Zoom Range	0.8X to 12.0X	0.8X to 10.0X	0.8X to 8.0X	0.8X to 6.0X



Optical System	Parallel Optical Zoom
Click Stops	Click stops at every 1X magnification (Can be disengaged)
Axillary Objectives	0.3X, 0.5X, 1.0X, 1.5X, 2.0X Plan Achromat 0.5X, 1.0X Plan APO
Working Distance	32.5, 45, 70, 78, 82, 156, 280 mm
Nosepiece	Single nosepiece standard w/ Dual Objective Nosepiece Available
Eyepieces	10X UW (24 mm F.O.V) | 15X (16 mm F.O.V) | 20X (12 mm FOV)
Total Magnification	2.4X to 400X
Illumination	External LED w/ Adjustable Light Guides External LED w/ Ring Light
Stands	Platform Stand Platform Stand w/ Integrated Episcopic & Diascope LED Illumination Enhanced OCC (Oblique Contrast) Stand w/ LED illumination Diascopic Embryo Transfer Stand Boom Stand
Eyetube	Fixed Low Profile Binocular Eyetube Ergonomic Tilting Binocular Eyetube Ergonomic Tilting Trinocular Eyetube w/ Integrated Photo Port
Epi-Fluorescence	4 Position Epi Fluorescence Module Option External Single or Dual LED Light Guide Option
Photo Port	Single & Dual camera photo port module
Polarized Light	Episcopic and Diascopic Polarized Light Option
