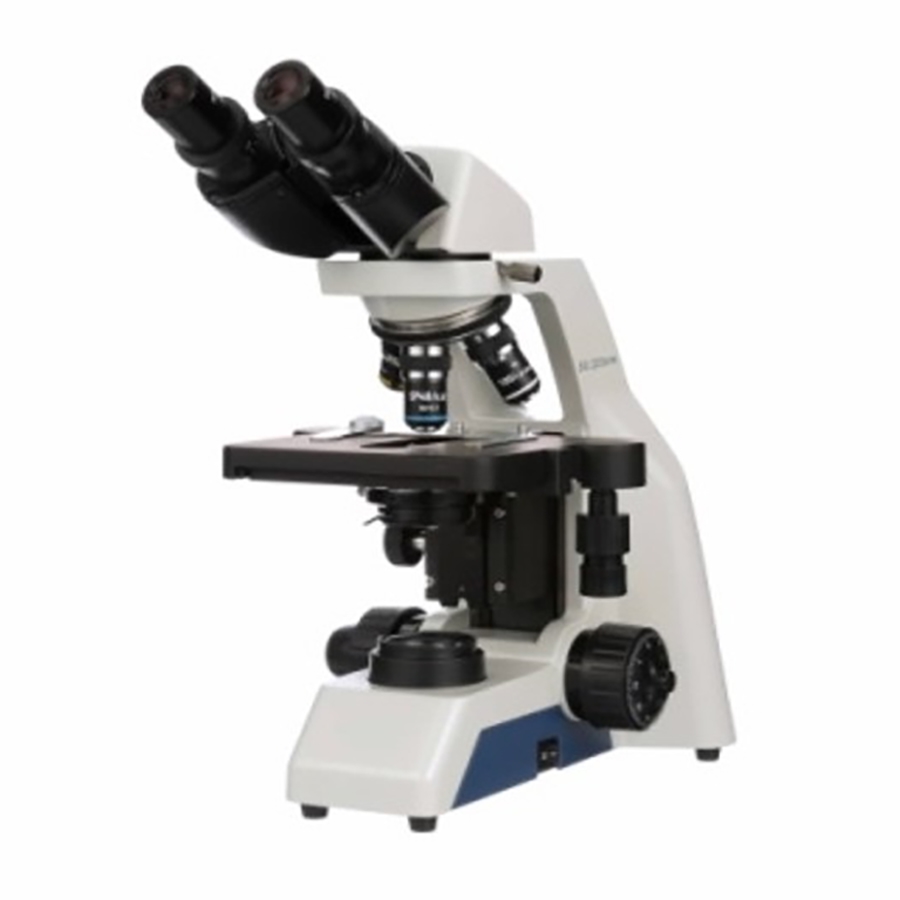

X120 Series Compound Upright Microscopes

Engineered for classroom and clinical applications, the X120 series is equipped with high contrast objectives on a rugged, die-cast. The aluminum frame is designed for years of heavy use. Cast frame includes a carry handle for easy transportation with a built-in cord hanger for proper storage.

The Deutsche Industrial Normen (DIN) optical system and Plan Achromat lenses provide high-quality images with exceptional color reproduction. Coupled with the LED illumination, the sample can be viewed from edge to edge of the large field of view in either the binocular or trinocular photo version of the scope.

The scope has a focus travel limit stop to ensure that users do not accidentally crash the lenses into the sample, and the all-metal coaxial focus controls have user-adjustable tension to ensure smooth focus for each user.

For classroom use, all the components on the X120 are locked down and tamper-proof. In addition, the Mechanical XY stage is a rackless design, ensuring smooth sample movement, improved precision, enhanced stability, and a more durable life span.

Simple ordering with packages to easily meet your needs!

• X120-3 Package: X120 scope with 4X, 10X, 40X Plan Achromat lenses and Binocular or Trinocular Photo Eyetube.
• X120-4 Package: X120 scope with 4X, 10X, 40X, and 100X oil Plan Achromat lenses and Binocular or Trinocular Photo Eyetube.

Specifications


Stand	Cast Aluminum Allory Built in focus stop to avoid specimen and objective damage Built in carry handle and cord hanger
Focus	Co-Axial Course and Fine focus controls, All metal gears
Illumination	Integrated: Variable intensity, 20,000 hour life
Eyetubes	Binocular with 30 degree eyepiece inclination Trinocular with 30 degree eyepiece inclination
Eyepieces	Eyepieces can be rotated 180 degrees Interpupillary Adjustment 48-75 mm 10X (18 mm FOV) standard
Condenser	Abbe condender: 1.25NA: Adjustable Iris Diaphragm Phase turret condenser (Optional)
Nosepiece	Rear facing to protect Objective lenses Ball bearing rotatable with positive click stops
Stage	Double layer Single slide holder with Mechanical XY controls
Storage	Carry handle and integrated Cord storage
Darkfield	Oil and dry objectives Darkfield (Optional)
Polarized Light	Polarizer and analyzer set (Optional)



Item #	Objectives	Rechargeable
X120-4	Plan Achromat 4x, 20x, 40x, 100x oil standard Plan Achromat 20x, 60x (Optional) Plan Achromat 4x, 10x, 20x, 40x 100x oil Phase (Optional)	Rechargeable base (Optional)
X120-4T	Plan Achromat 4x, 20x, 40x, 100x oil standard Plan Achromat 20x, 60x (Optional) Plan Achromat 4x, 10x, 20x, 40x 100x oil Phase (Optional)	Rechargeable base (Optional)
X120-3	Plan Achromat 4x, 20x, 40x, standard Plan Achromat 20x, 60x (Optional) Plan Achromat 4x, 10x, 20x, 40x 100x oil Phase (Optional)	Rechargeable base (Optional)
X120-3T	Plan Achromat 4x, 20x, 40x, standard Plan Achromat 20x, 60x (Optional) Plan Achromat 4x, 10x, 20x, 40x 100x oil Phase (Optional)	Rechargeable base (Optional)
X120-4	Plan Achromat 4x, 20x, 40x, 100x oil (Optional) Plan Achromat 20x, 60x (Optional) Plan Achromat 4x, 10x, 20x, 40x 100x oil Phase	N/A
X120-4	Plan Achromat 4x, 20x, 40x, 100x oil (Optional) Plan Achromat 20x, 60x (Optional) Plan Achromat 4x, 10x, 20x, 40x 100x oil Phase	N/A
X121-4	Plan Achromat 4x, 20x, 40x, 100x oil (Optional) Plan Achromat 20x, 60x (Optional) Plan Achromat 4x, 10x, 20x, 40x 100x oil Phase	N/A
X120-4	Plan Achromat 4x, 20x, 40x, 100x oil standard Plan Achromat 20x, 60x (Optional) Plan Achromat 4x, 10x, 20x, 40x 100x oil Phase (Optional)	N/A
