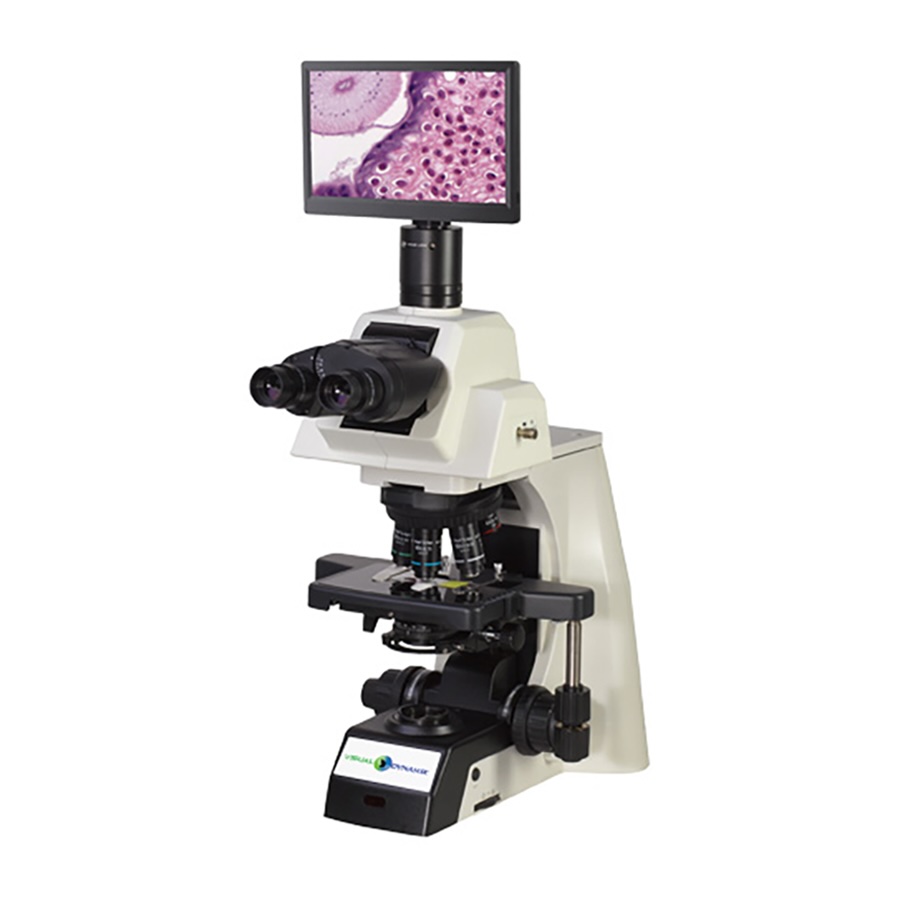

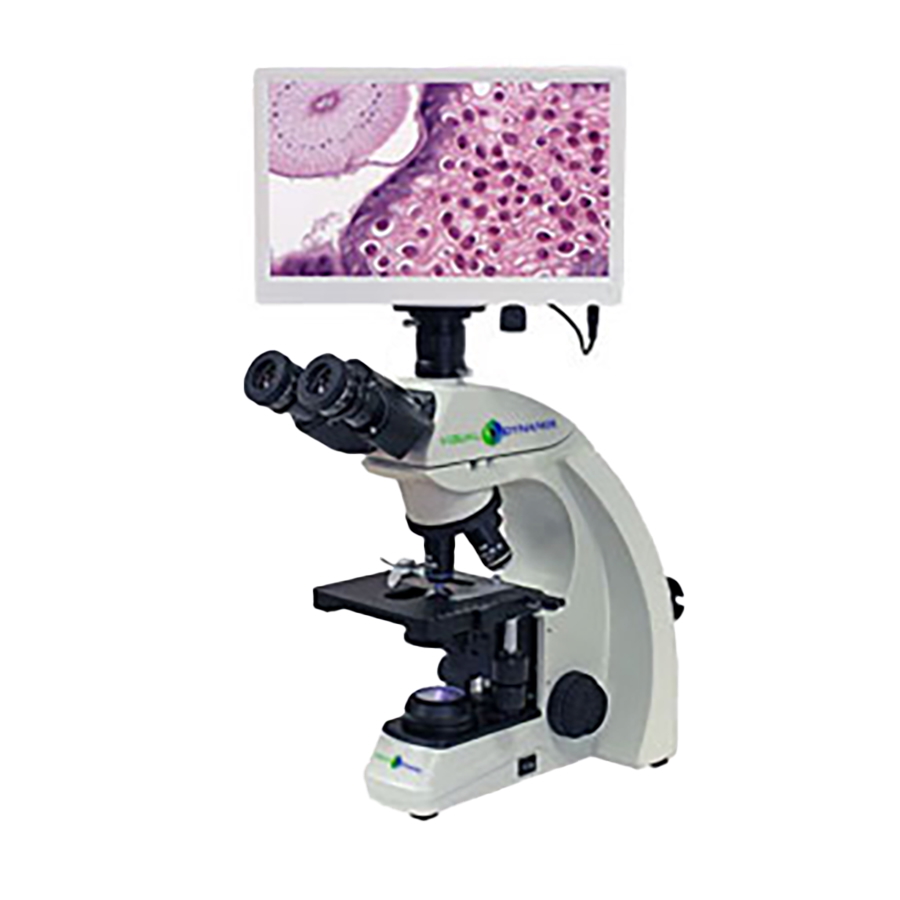

X360 Series Compound Upright Microscopes

X360 clinical microscopes deliver exceptional optical performance, versatility, and durability for any laboratory, clinical, or teaching environment.

With an infinity optical design and plan achromat objectives, the X360 produces high resolution and contrast images and reproduction with full optical correction from edge to edge of the 22 mm Field of View. The LED illuminator, tuned to 5600º, provides a homogenous field of view and enriches the color and contrast in the images.

All configurations include a trinocular eyetube with a built in photo port to accommodate any camera and easy upgrading. In addition, the light is directed simultaneously to the eyepieces and camera port via the integrated dichotic mirror, eliminating the need to consistently move a slider to determine light distribution. The design also eliminates vibration for digital imaging, reducing the need for constant focus updating. The eyepieces are at a comfortable 30º inclination (eliminating fatigue) and can be rotated 180º to accommodate users of all heights.

The stage features a double-layer, ceramic surface with user-adjustable XY controls for slide movement. Rackless design provides stability and durability. There is a 1 uM fine focus to ensure crisp images and a focus travel stop to prevent accidental damage to the objective lenses or sample. There is a carry handle on the back for easy transportation and an integrated cord hanger for storage.

The X360 offers a USB port on the back of the scope, allowing users to charge other devices while using the scope. It’s the only microscope in this class that offers a focusable field lens, allowing for Koehler illumination and helping to foster the best in class performance.

Simple ordering with packages to easily meet your needs!

• 360T Package: X360 scope with 4X, 10X, 40X, and 100X oil Plan Achromat lenses.
• 360T-3 Package: X360 scope with 4X, 10X, and 40X Plan Achromat lenses.
• 360T-APO Package: X360 scope with 4X, 10X, 40X, and 100X Plan Apo lenses.
• 360T-PH Package: X360 scope with 4X, 10X, 40X, and 100X Plan Achromat Phase lenses and Phase Condenser.

Specifications


Stand	Metal Frame with Plastic protective shell Focusable fiend lens for Koehler Illumination USB charge port
Focus	Co-Axial Course and Fine focus controls User adjustable focus tension and refocus stop Stage travel Lock to prevent sample damage All metal gears with brass fine focus gears
Illumination	Integrated 3 watt LED: Variable intensity Tuned to 5600º | 25,000 hour life
Eyetube	30º eyepiece inclination Eyepieces can be rotated 180º Integrated dichotic w/ 50% visual / 50% photo simultaneous split Interpupillary Adjustment 50 to 75 mm Ergonomic Tilting Eyetube (Optional)
Eyepieces	10X (22 mm F.O.V) standard 15X (16 mm F.O.V) and 20X (12 mm F.O.V) Optional
Nosepiece	Rear facing to protect Objective lenses Ball bearing rotatable with positive, vibration free click stops
Stage	Double layer, ceramic surface Single slide holder with Mechanical XY controls Single slide holder with Mechanical XY controls
Storage	Carry handle and integrated Cord storage
Fluorescence	Up to 3 channel\LED illumination (Optional)
Darkfield	Oil and dry objectives Darkfield (Optional)
Polarized Light	Polarizer and analyzer set (Optional)



Item #	Condenser	Objectives
X360T	Abbe condenser: 1.25NA: Adjustable Iris Diaphragm Slot for phase\darkfield slider:  optional 2x Diffuser Phase turret condenser (Optional)	Plan Achromat 4x, 20x, 40x, 100x oil standard Plan Achromat 2x, 20x 50x oil, 60x (Optional) Plan APO 4x, 10x, 20x, 40x, 100x oil (Optional) Plan Achromat 4x, 10x, 20x, 40x 100x oil Phase (Optional)
X360T3	Abbe condenser: 1.25NA: Adjustable Iris Diaphragm Slot for phase\darkfield slider:  optional 2x Diffuser Plan Achromat 4x, 20x, 40x, standard	Plan Achromat 4x, 20x, 40x, standard Plan APO 4x, 10x, 20x, 40x, 100x oil (Optional) Plan Achromat 4x, 10x, 20x, 40x 100x oil Phase (Optional)
X360T-APO	Abbe condenser: 1.25NA: Adjustable Iris Diaphragm Slot for phase\darkfield slider:  optional 2x Diffuser Phase turret condenser (Optional)	Plan APO 4x, 10x, 20x, 40x, 100x oil Standard Plan Achromat 4x, 20x, 40x, oil (Optional) Plan Achromat 4x, 10x, 20x, 40x 100x oil Phase (Optional)
X360T-PH	Phase turret condenser (Standard) Abbe condenser: 1.25NA: Adjustable Iris Diaphragm Slot for phase\darkfield slider:  optional 2x Diffuser	Plan Achromat Phase  4x, 10x, 40x, 100x oil Standard Plan Achromat 4x, 20x, 40x, oil (Optional) Plan APO 4x, 10x, 20x, 40x, 100x oil (Optional)
