Haier Energy-Saving ULT Freezers

Item #: ASULTECOFREZ

Specifications

Item # DW-86L730BPT DW-86L830BPT
Cabinet Type Upright
Climate Class N
Cooling Type Direct Cooling
Defrost Mode Manual
Refrigerant HC
Sound Level ≤42  (dB(A)) ≤46  (dB(A))
Cooling Performance -86ºC (-122.8ºF)
Temperature Range -40 to -86ºC (-40 to -122.8ºF)
Controller Microprocessor
Display Touch Screen LCD
Power Supply (V/Hz) 100~230/50/60
Max Power (W) 900 1050
Capacity (L/Cu.Ft) 730/25.8 830/29.3
Net/Gross Weight (approx.) 694.5/811.3 lbs | 315/368 kg 740.8/859.8 lbs | 336/390 kg
Interior Dims (W x D x H) 30.2 x 28.2 x 51.6 In. | 766 x 716 x 1310 mm 34.3 x 28.2 x 51.6 In. | 870 x 716 x 1310 mm
Exterior Dims (W x D x H) 41.2 x 39.3 x 77.6 In. | 1046 x 998 x 1970 mm 1145 x 998 x 1970 In. | 34.3 x 28.2 x 51.6
Packing Dims (W x D x H) 43.3 x 45.3 x 85 In. | 1110 x 1150 x 2160 mm 48 x 45.3 x 85 In. | 1220 x 1150 x 2160 mm
Container Ld. (20'/40'/40'H) 10/20/20 8/20/20
Alarms High/Low Temperature Alarm, Hot Condenser Alarm, Power Failure Alarm, High/Low Voltage
Alarm, Low Battery, High Ambient Temperature Alarm, Door Ajar Alarm, Start-Up Delay
Caster Y(4)
Leveling Feet Y(2)
Porthole 2 Rear, (15 mm)Diameter
Inner Doors 4
Shelves 3- Stainless Steel Adjustable Shelves
Shelf Dimensions (W x D) 752 x 650 mm 856 x 650 mm
Max. Load per Shelf 90 kg 108 kg
Freezer Racks Qty 20- 2 In. Boxes 24- 2 In. Boxes
Capacity 500- 2 In. Boxes 600- 2 In. Boxes
USB Interface Yes
Remote Alarm Yes
5V Power Supply Port Yes
Temperature Chart Recorder Optional
RS232/485 Port NA/Standard
CO₂ Backup System Optional
LN₂ Backup System Optional
Certifications CE, UL, ENERGY STAR

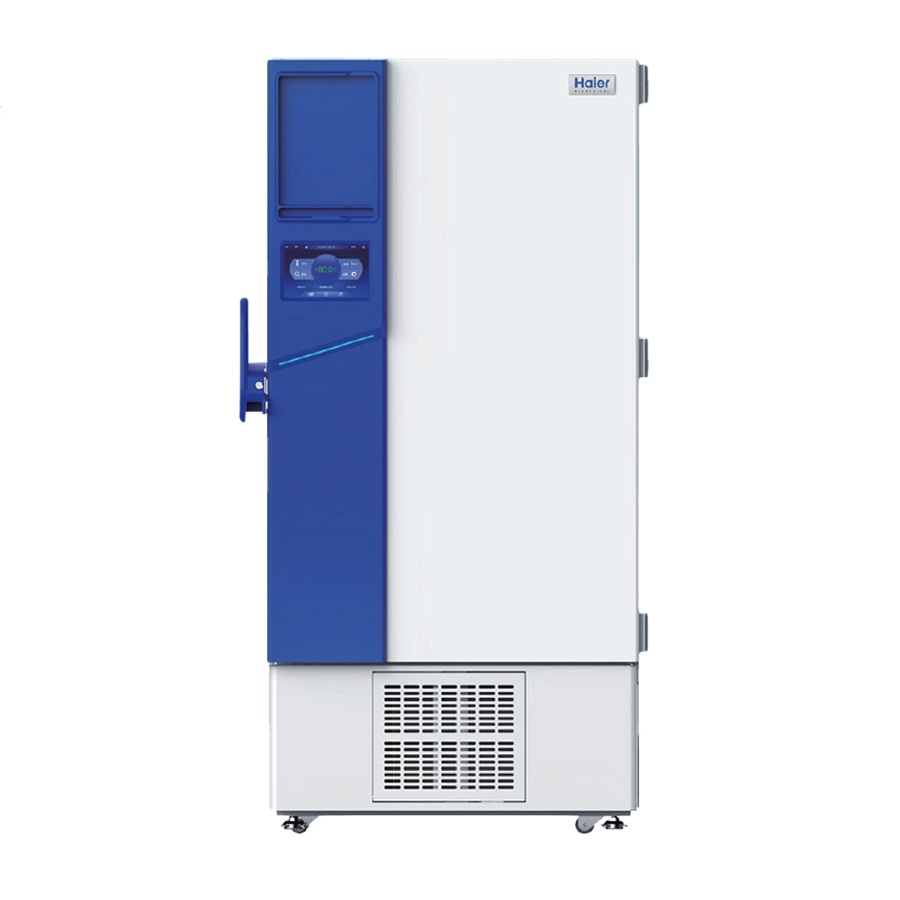

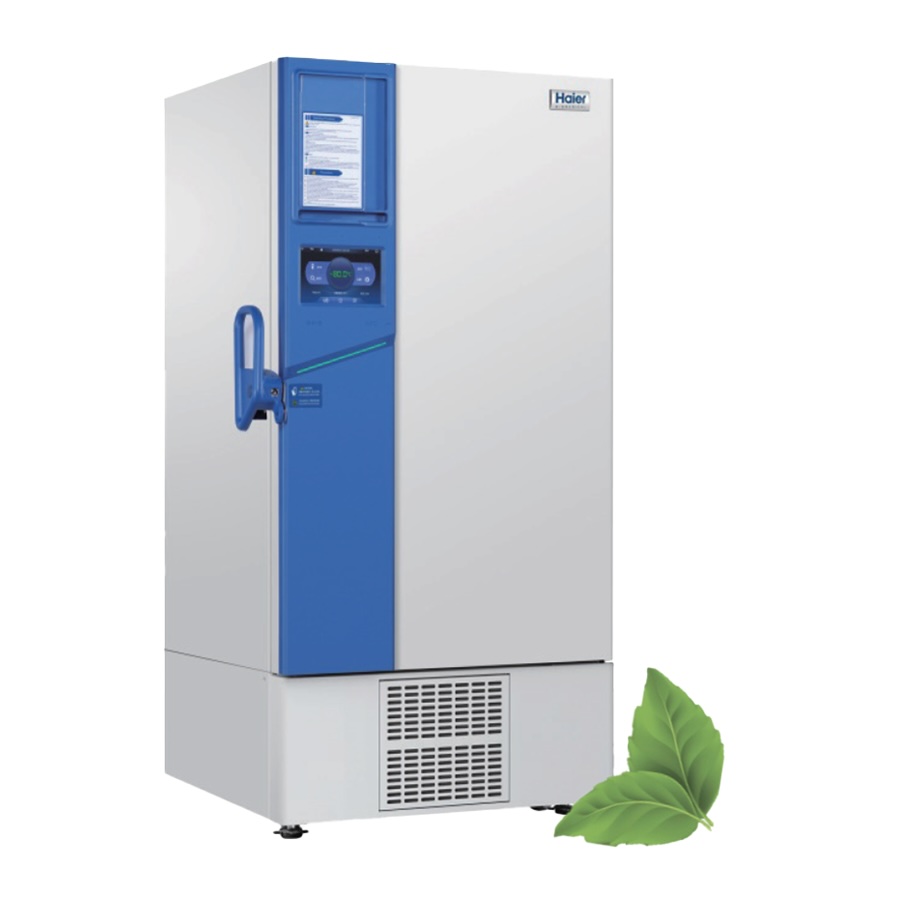

Haier Energy-Saving ULT Freezers



The Haier Energy-Saving Ultra-Low Temperature (ULT) Freezer is the ideal solution for laboratories and medical facilities seeking maximum sample protection with minimum energy consumption. Certified by ENERGY STAR®, this ultra-efficient ULT freezer offers industry-leading energy performance, superior temperature uniformity, and environmentally responsible design, all in one advanced storage solution.



The Haier ULT freezer consumes just 4.16 kWh per day and uses HC refrigerants and ultra-low GWP insulation materials, making it one of the greenest ultra-low temperature freezers available (based on model DW-86L730BPT).



Precision Temperature Control



Tested at 20 internal measurement points, the freezer maintains temperature uniformity within ±2°C, even in challenging environments with 20°C ambient conditions. Ideal for critical sample preservation and regulatory compliance.



Advanced Cooling and Insulation Technology



Upgraded compressor system for faster temperature. recovery after door openings. Enhanced insulation minimizes warm-up time and protects against temperature fluctuations. Designed to maintain consistent -80°C storage performance, even under frequent access.



Intelligent Visual Monitoring



A newly designed LED light bar provides at-a-glance visual indicators of the freezer’s status, including operational performance and alarm notifications, improving monitoring efficiency and safety.



USB Data Export for Compliance



Easily download historical temperature data through the built-in USB port for auditing, regulatory submissions, or internal quality control documentation.



Enhanced Security and Ergonomic Design



Ergonomic handle enables effortless door access. Multiple locking options: mechanical locks with 4 keys, optional padlocks, fingerprint recognition, or NFC card access for high-security environments.



Optional Backup System for Maximum Sample Protection



Ensure continuous operation during power outages with an optional integrated backup system and independent control panel. Keep your critical samples safe at all times.



Ideal For

  • Biomedical research labs
  • Biobanking facilities
  • Clinical & pharmaceutical storage
  • University and institutional research centers
  • COVID-19 vaccine and biological sample storage
DW-86L828JA
Item#:
ASULTLOWFREZ

TwinCool Freq Converter
Item#:
ASTWINCOOLBPST

SKU Number Cu Ft Operating Temp Range Style Monitoring System Price Quantity Add to Cart
DW-86L730BPT 25.7 Cu Ft (730 L) -40 to -86C Upright, 110/230 V / 60 Hz Yes, see Spec Tab
25000.00
Each
DW-86L830BPT 29.3 Cu Ft (830 L) -40 to -86C Upright, 110/230 V / 60 Hz Yes, see Spec Tab
26900.00
Each
