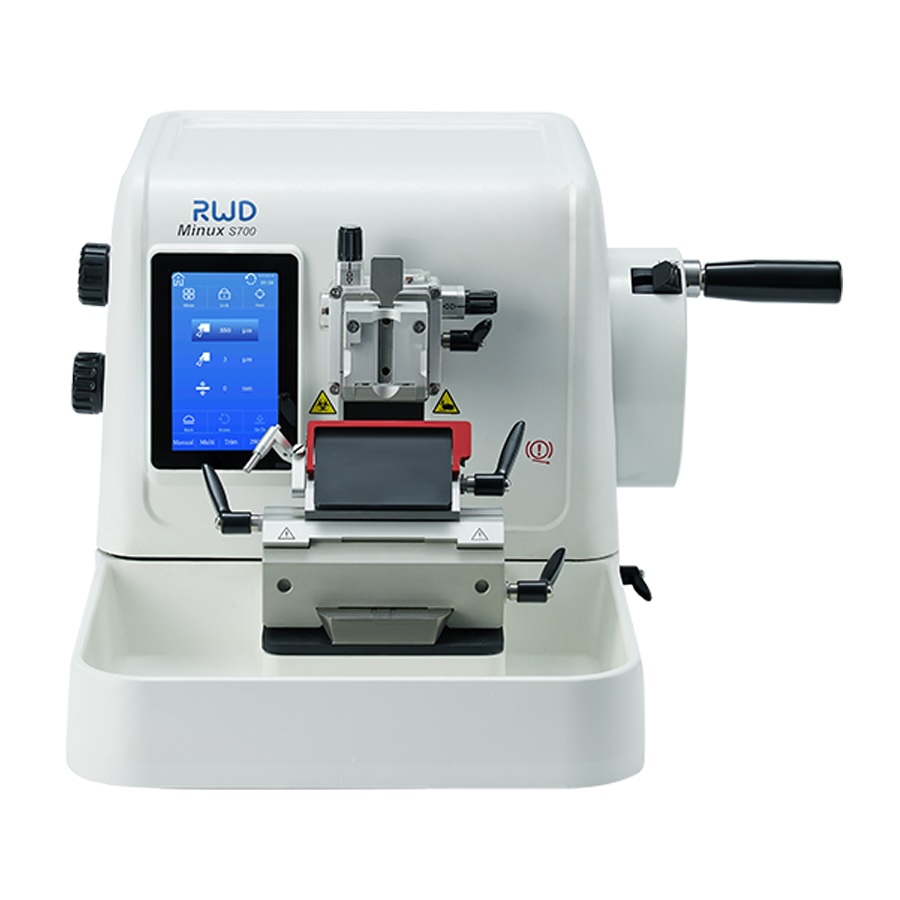

Minux® S700 Semi-Automatic Rotary Microtome

The Minux® S700 Semi-Automatic Rotary Microtome enables you to cut sections precisely, safely, and is easy to operate. It displays extraordinary ergonomic characteristics for comfortable operation. RWD’s S700 Rotary Microtome is a semi-automatic model, to align with your slicing habits.

When working with delicate specimens, an example being brain samples, the rotary microtome system provides reproducible, thin, serial sections of maximum quality. Unique side specimen knob and visual pointer design make specimen advance and retraction more precise. Handwheel double lock system, knife ejector, and guard enhance safety. 2-in-1 blade holder satisfies the use of high and low-profile blades.

Applications include Histopathology/Anatomical Pathology.

• Accurate
• Cross roller bearings and spindle combined with a 5-phase high-resolution stepper motor and a link block made of aviation aluminum form a high-precision sampling system that ensures slice quality.
• With patented pointer identification technology, our rotary microtome machine enables visual adjustment of the sample angle for pinpoint accuracy in positioning; the knife holder has a small lateral displacement which further enhances accuracy. The base has a scale, which is convenient for the knife holder to locate and improve the quality of slices.
• Safe
• The handwheel dual locking system comes with a lock prompt sound and is equipped with a knife ejector and knife guard so the user can safely replace the sample and blade.
• Intelligent
• 5 In. touch screen and history recording system make it easy to trace back past information and quickly solve problems.
• Convenient
• German military-grade side injection knob conforms to ergonomic design, and the operation is more comfortable and coordinated.
• Special material waste tank, non-wax, easy to clean

Specifications


Type	Semi-motorized: Motorized feeding, Manual sectioning
Section Thickness Range	Range: 0.5 - 100 uM Setting values: 0.5 - 5.0 uM in 0.5 uM increments 5 - 20 uM in 1 uM increments 20 - 30 uM in 2 uM increments 30 - 60 uM in 5 uM increments 60 - 100 uM in 10 uM increments
Trimming Section Thickness	Range1 - 800 uM Setting values: 1 - 10 uM in 1 uM increments 10 - 20 uM in 2 uM increments 20 - 50 uM in 5 uM increments 50 - 100 uM in 10 uM increments 100 - 800 uM in 50 uM increments
Specimen Feed	1.102 In. | 28 mm
Vertical Stroke	2.756 In. | 70 mm
Max Sample Size	2.362 x 1.969 x 1.575 In. | 60 x 50 x 40 mm
Specimen Orientation	X axis / Y axis 8° Z axis 360°
Specimen Retraction	0 - 250 uM Adjustable
Blade Holder	2-in-1
Remain. Horiz. Stroke	1 mm, acoustical and visual prompts
Weight	61.729 lb | 28 kg
Dims (W x D x H)	18.503 x 21.771 x 12.008 In. | 470 x 553 x 305 mm



*RWD S700, S700A, S710 and S712 microtomes have been registered and listed by the US FDA (available on the FDA official website) and have been approved for clinical use.
