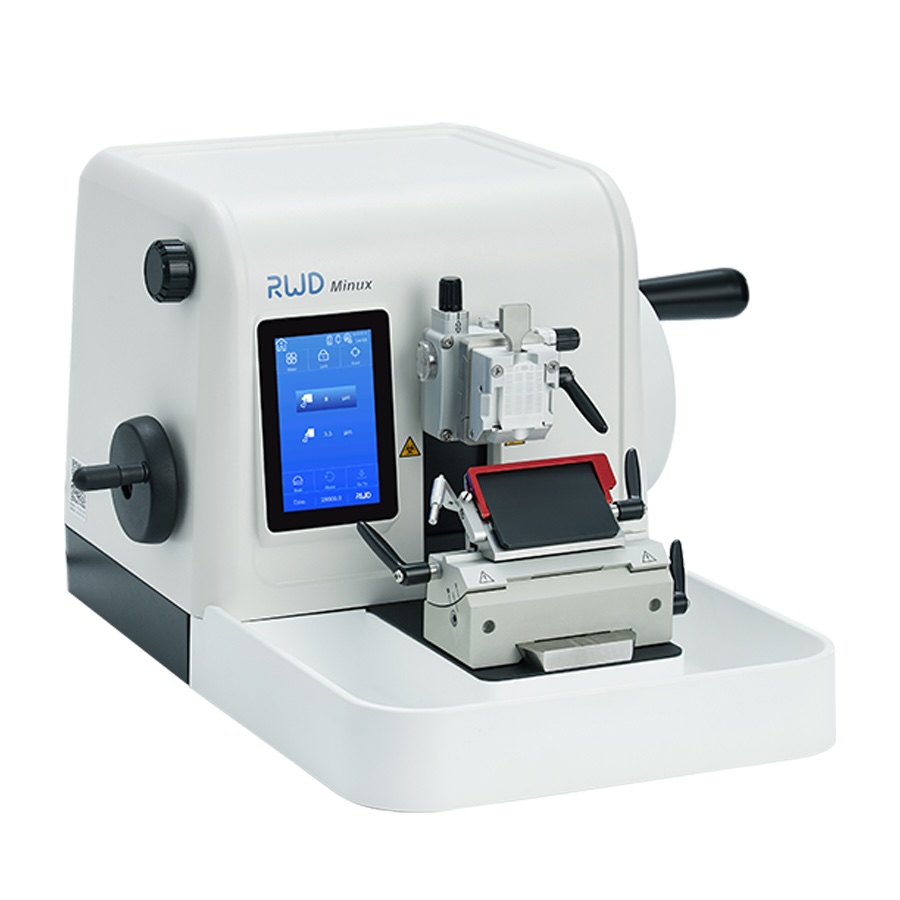

Minux® S710 Semi-Automated Rotary Microtome

RWD’s S710 Microtome is specially designed to meet the various habits of most operators. S710 combines manual sectioning and a semi-automated setup to ensure microtome slicing precision, especially for hard tissue sectioning. The historical record system shows operation and alarm logs on a 5 In. touch screen to examine microtome usage and facilitate information tracking. Maintenance is low-cost. 2-in-1 blade holder satisfies the use of high and low-profile blades.

• Precise Sampling System
• Precise cross roller bearings and screw rod, combined with a 5-phase high-resolution stepper motor and a link block made of aviation aluminum, form a high-precision sampling system to ensure section quality.
• In a stable gantry structure design, the hard tissue section is still accurate.
• Precise Knife Holder
• The position change is extremely small after changing the knife edge by moving sideways.
• Scales on the knife holder help determine the best position of the blade holder.
• Dual Handwheel Locking System
• The handwheel can be stopped at any position, making it more secure.
• Knife Guard Device
• The knife guard covers the full length of the blade to avoid potential injury during operation.
• Easy to Clean
• Easy to disassemble and install with magnetic function.
• Large capacity, special coating waste tray allows for easy cleanup and shortens cleaning time to a few seconds.
• Rapid Positioning
• Unique visual pointer and visible angle adjustment. Sample positioning is faster and more precise.
• Adjust multiple devices to the same angle easily and quickly.

Unique Features

• Control panel
• Rock mode
• Position memory function

Specifications


Section Thickness Range	0.5 - 100 uM
Trimming Thickness Range	1 - 800 uM
Electric Coarse Feed	100 - 3000 uM / Second Adjustable
Specimen Retraction	0 – 250 uM Adjustable
Horizontal Feed	1.102 In. | 28 mm
Vertical Stroke	2.756 In. | 70 mm
Specimen Orientation	X axis / Y axis 8°
Max Specimen Size	2.362 x 1.969 x 1.575 In. | 60 x 50 x 40 mm
Dims (W x D x H)	19.291 x 16.929 x 13.582 In. 490 x 430 x 315 mm
Weight	33.139 lb | 30 kg
