OHAUS Multi-Tube Vortex Mixers

Powerful hands-free vortex mixer for efficient high-throughput mixing.

OHAUS Multi-Tube Vortexers are ideal for hands-free, high-throughput sample processing. Interchangeable foam racks for vortexing tubes from 10 to 29 mm in diameter are available. Strong suction cup feet reduce motion and prevent sliding on the work surface for safe operation in the lab. Digital models offer exact speed control for applications that demand repeatable results. Non-digital variable speed models are an economical alternative.

• Applications
• Suspensions, Genotyping, High Throughput DNA and RNA Testing in Clinical Labs
• Display
• Independent LED displays for speed/time allow the operator to view both settings simultaneously (digital models)
• Operation
• Detachable 3-wire cord and plug (included)
• Communication
• N/A
• Construction

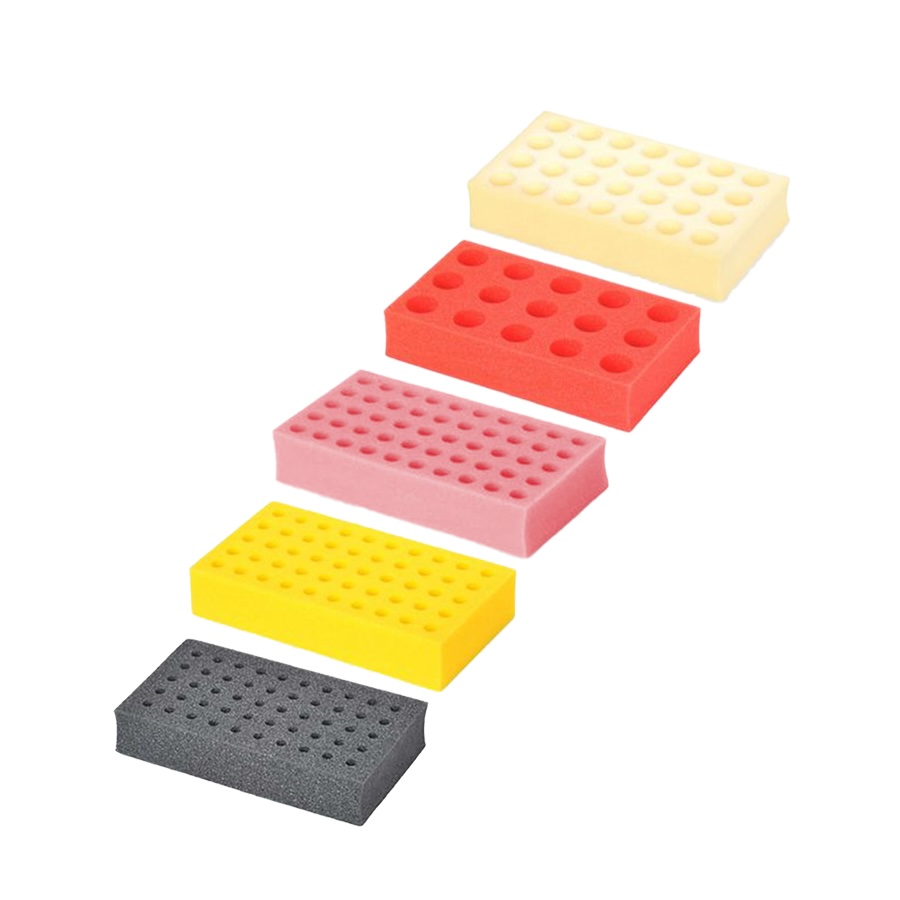

• Stainless steel foam rack for 50 x 12 mm diameter tubes (included), interchangeable foam racks for vortexing tubes from 10 - 29 mm in diameter
• Design Features
• N/A

Specifications


Item #	30573831	30573836	30392164	30392171
Control	Analog	Digital	Analog	Digital
Duty Rating	Continuous
Orbit	0.1 In. | 3.6 mm
Speed Range	1200 – 2400 rpm	500 – 2500 rpm	1200 – 2400 rpm	500 – 2500 rpm
Capacity	4.5 kg
Timer	N/A	1 sec - 9999 min	N/A	1 sec - 9999 min
Dims (D x W x H)	9.5 x 15.1 x 16 In. | 241 x 384 x 406 mm
Net Weight	41 lb | 18.7 kg		44.8 lb | 20.3 kg
Power	120V, 5A, 50/60Hz
Power Consumption	100 W
Safety Certification	TUV
Tray Size (D x W)	7.25 x 12.25 In. | 184 x 311 mm
Work Environment	4ºC - 40ºC (39ºC - 104ºF), 20% to 80% RH, non-condensing
