Home > Equipment > Centrifuges > Mini Microcentrifuges > Mini Microcentrifuge

Mini Microcentrifuge

Item #: ASMINCENMLX

Tube Revolver

Ergonomically designed for simple operation and minimal space usage
Includes 5 unique interchangeable rotisseries
Rotisseries can be mixed to accommodate a variety of tube sizes simultaneously
The maintenance-free motor is powerful and quiet
TR-02UA can be programmed to oscillate at every 40° to simulate hand mixing with rotation and shaking

The Tube Revolver can be used in a variety of laboratory fields such as Molecular Biology, Biochemistry, Clinical, and Histochemistry. The rotisseries are interchangeable so that the unit works with a variety of tube sizes. The four rotisserie paddles can be mixed for a combination of different tubes. Each paddle direction can be independently adjusted from 0-90 degrees.

In addition to the speed adjustability and digital display, Model TR-02U can be programmed to operate in a back and forth oscillating mode, simulating the mixing process by hand. The oscillation occurs every 40 degrees in the rotation. The combination of rotation and oscillation mixes liquid more effectively.

Specifications:

Model	TR-01A	TR-02UA
Product Name	Fixed Speed Tube Revolver	Variable Speed Tube Revolver
Speed	25 rpm	10~40 RPM
Capacity	84×0.5/0.8 mL / 60×1.5/2.0 mL / 28×5/7 mL / 28×10/15 mL / 6x50 mL Tubes	±1 rpm
Accessories Included in standard Packaging	2xTRA01 (10/15 mL Paddle) + 2xTRA02 (5/7 mL Paddle) + 2xTRA03 (1.5/2 mL Paddle)	84×0.5/0.8 mL / 60×1.5/2.0 mL 28×5/7 mL / 28×10/15 mL / 6x50 mL Tubes
Accessories Included in standard Packaging	+ 2xTRA04 (0.5/0.8mL Paddle) + 1xTRA05 (50mL Tube Paddle)	2xTRA01 (10/15 mL Paddle) + 2xTRA02 (5/7 mL Paddle) + 2xTRA03 (1.5/2 mL Paddle) + 2xTRA04 (0.5/0.8 mL Paddle) + 1xTRA05 (50 mL Tube Paddle)
Rotation Direction	Switches rotation direction when rotisserie encounters resistance or power switch is toggles	Oscillation mode oscillates rotisserie every 40°
Ambient Temperature	4°C~60°C	4°C~60°C
Ambient Relative Humidity	≤80%	≤80%
Power Supply	AC110V±11V, 60 Hz	AC110V±11V, 60 Hz
Max. Power	4 W	10W
Dimensions (W x D x H)	148 x 225 x 195 mm (5.8 x 8.9 x 7.7 in.)	148 x 260 x 195 mm (5.8 x 10.2 x 7.7 in.)
Net Weight	0.8 kg (1.8 lb)	1 kg (2.2 lb)
Protection Level	IP21	IP21
Certifications	CE, RoHS, WEEE	CE, RoHS, WEEE

SKU Number	Capacity	Speed	Type of Centrifuge	Price	Quantity	Add to Cart

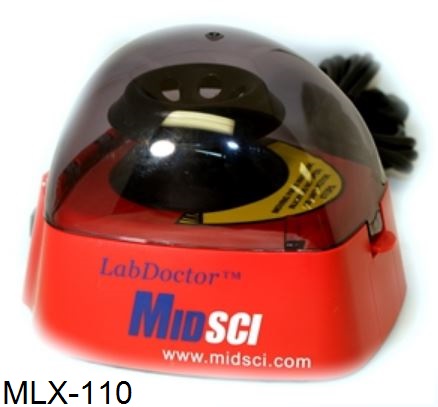

MLX-110	6 x 1.5mL	10,000 rpm	Mini Microcentrifuge	200.0000 200.00 Each		Item is no longer available.
MLX-306A	6 x 1.5mL	6,000 rpm	Mini Microcentrifuge	190.0000 190.00 Each
MLX-304A	6 x 1.5mL	4,000 RPM	Mini Microcentrifuge	190.0000 190.00 Each
MLXF-1	0.5 mL Tubes	N/A	Adapter	13.0000 13.00 Each
MLXF-2	6 x 1.5mL	N/A	Adapter	13.0000 13.00 Each
MLXF-3	0.2 mL Tubes	N/A	Adapter	13.0000 13.00 Each
MLXF-7	6 x 1.5mL	N/A	Rotor	13.0000 13.00 Each
