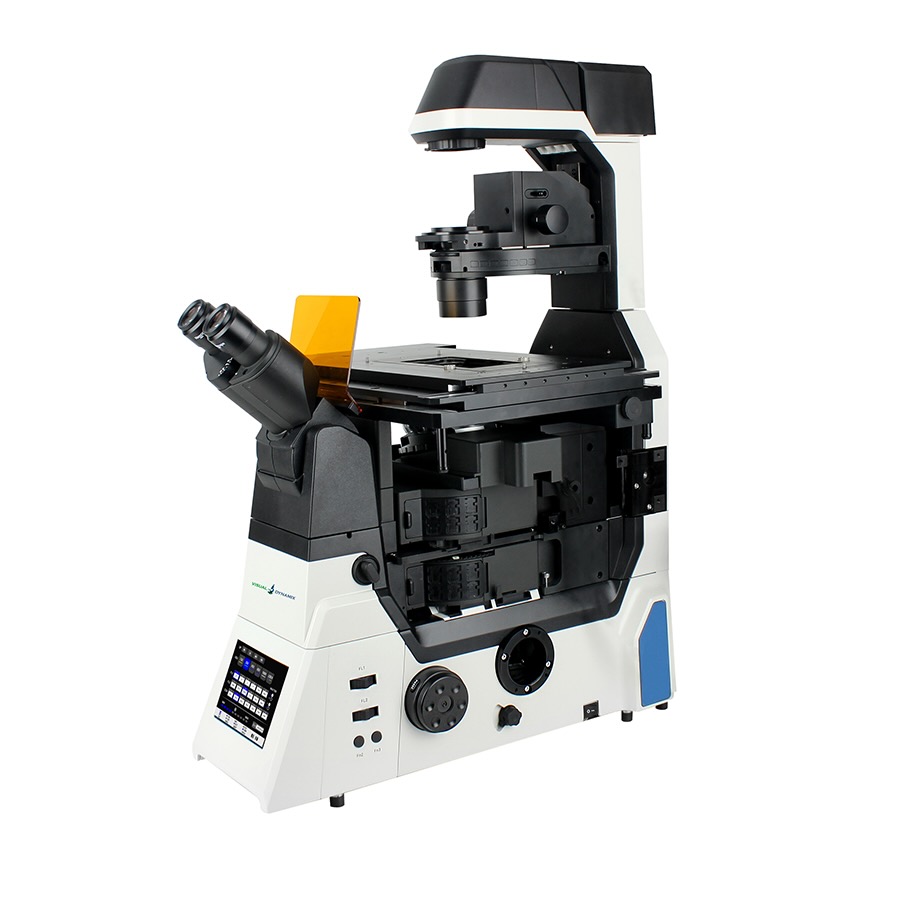

I1000 Motorized Custom Inverted Microscopes

The most advanced and intuitive motorized microscope on the market.

The I1000 microscope is the next generation in live cell microscopy and imaging microscopes. A completely motorized microscope with an open design, the I1000 is a perfect budget-conscious solution for any lab working with live cells and beyond.

The backbone of the scope is the NIS60 optical technology which incorporates the most advanced infinity optics. These optics are designed with custom coatings, high numerical apertures, and long working distances to provide unsurpassed imaging for all applications. One scope in any configuration can perform brightfield, phase, DIC, Hoffman Contrast, fluorescence, confocal, TIRF, and micromanipulation.

Full motorization of every component allows users to streamline the workflow, and with the advanced imaging software included, automated, 6-D, long-term experiments can be set up and run with the click of a button. Users can perform all imaging modalities, including confocal, on a single microscope platform.

There is an integrated LED control panel to control all components manually. This allows users to set up their experiments or use the scope for other microscopy applications, making the scope a valuable tool for any laboratory.

While the scope and all components are motorized, modularity is not lost. Labs can grow with this scope and add other imaging techniques like confocal, TIRF, FRAP, and others to enhance your imaging requirements.

Please contact us for more information, a demonstration, or a quote.

Specifications


Optical System	NIS60 Infinity Optical System
Main Body	Alloy Frame with Metal Housing for drift stability Integrated LED keypad to control all components: Programmable 3 Motorized Imaging Ports (Left, Right, Top) with Motorized selectable light path manager Motorized Integrated Optical Zoom Module with 1X & 1.5X positions Motorized and Encoded Coarse (1 uM) and Fine (0.5 uM) Planetary Focus Design Optional 2 Tier Deck Imaging Upgrade
Eyepieces	10X (22 mm F.O.V)
Eyetube	Ergonomic Binocular with integrated Bertrand Lens: IP Adjustment
Condenser	Motorized and Encoded Universal Module with 26mm working Distance: 0.55 NA Selectable Phase Rings, DIC Prisms and Hoffman Apertures Integrated Aperture Diaphragm
Nosepiece	Motorized and Encoded Transmitted LED pillar: LED Tuned to 5600 Daylight White Motorized Drop to focus Design with Auto Return to Focal Plane
Illumination	Motorized and Encoded Transmitted LED pillar: LED Tuned to 5600 Daylight White Tilt back Pillar for easy access to Samples
Illumination Techniques	Brightfield, Phase, Darkfield Transmitted Light Nomarski DIC\Hoffman Modulation Contrast Transmitted Light Epi-Fluorescence
Epi Fluorescence	Epi-fluorescence Illuminator (Modular and Optional) Motorized and Encoded 6 position NT Filter Turett (Module and Optional)
Polarized Light	Seamount compensators for Polarized Light Applications
Stage	3 Plate Mechanical with XY controls Motorized XY stage (Linear Encoded, Rotary Encoded, Non Encoded)
Environment	Temperature and Co2 Chambers Available
Software	Software for control of all components for live Cell and Automate Image Acquisition
