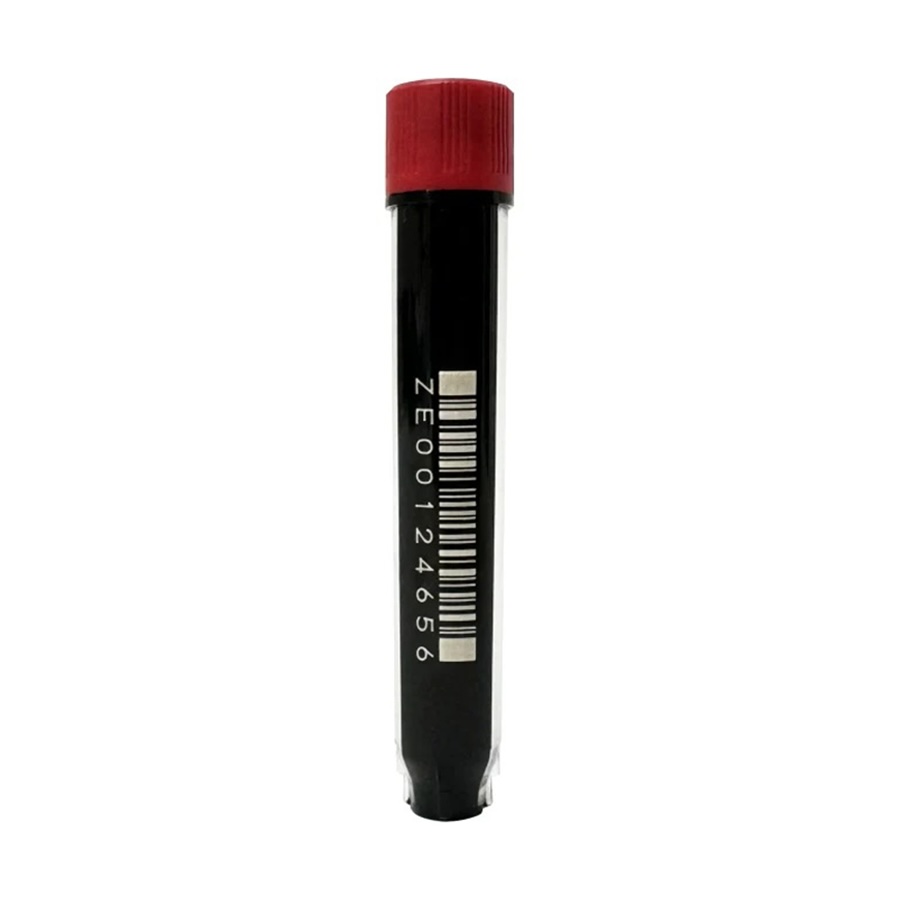

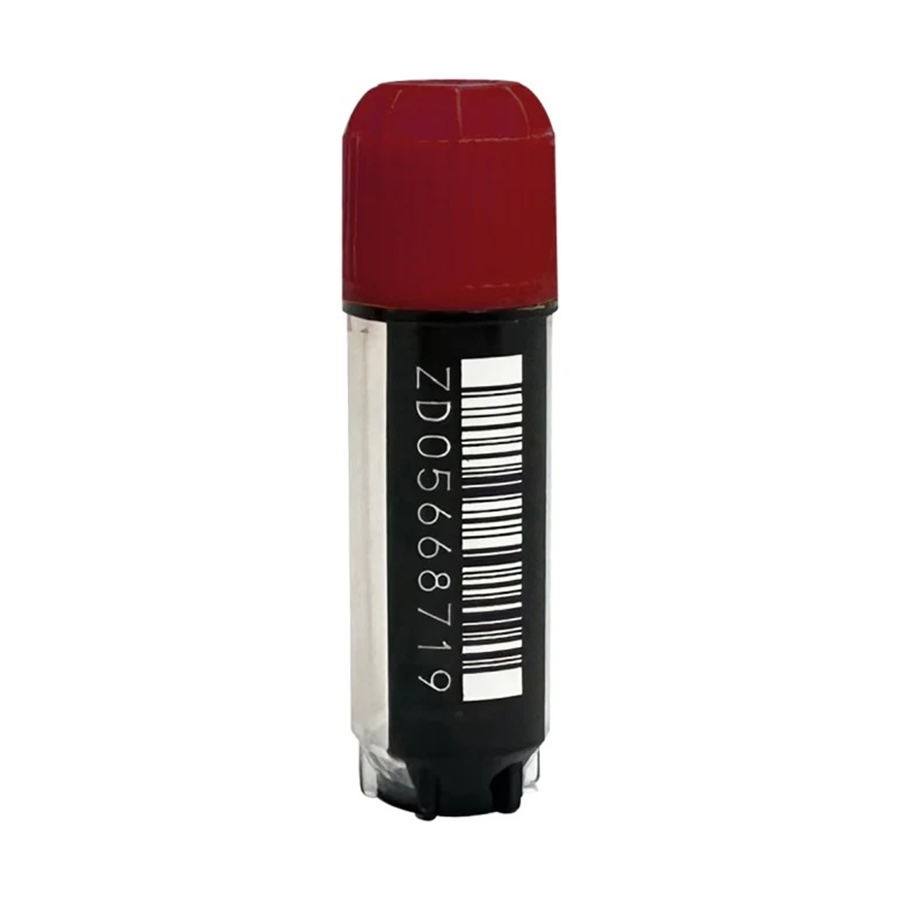

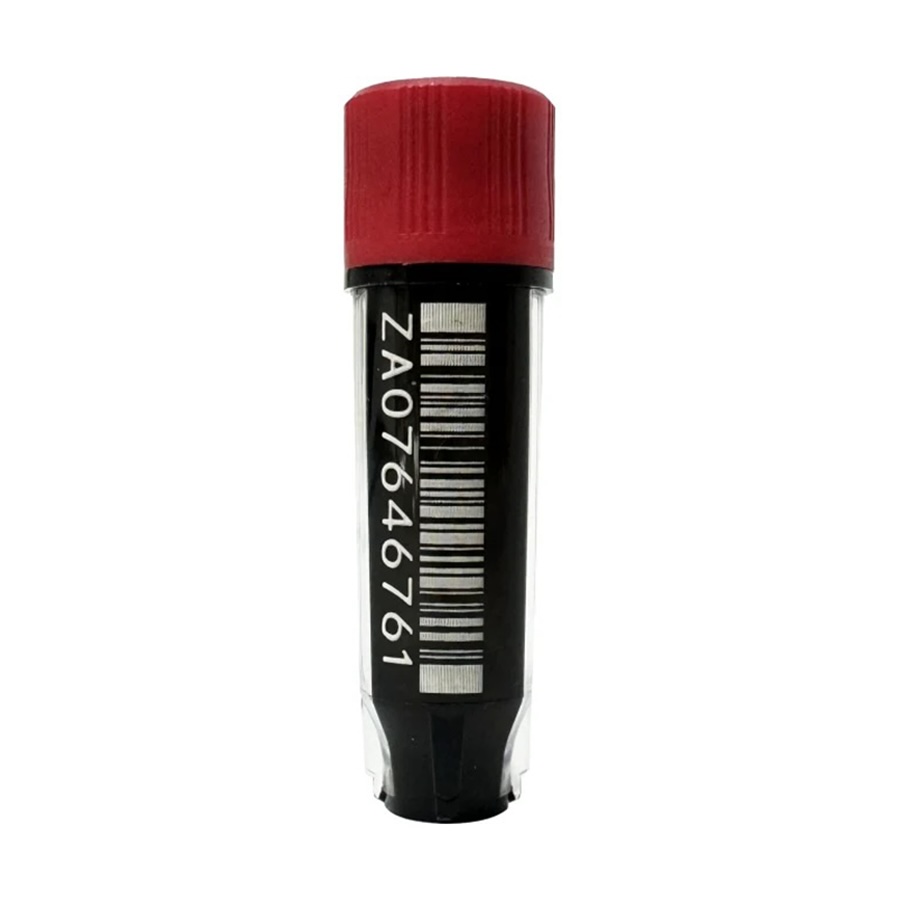

Hoefer® 0.5 to 2.0 mL Tri-Coded Cryo Tubes

• Manufactured in clean workshop complying with GMP 8 and certified with ISO 9001 and 13485
• Laser-etched code on the tube bottom and side, easy to read, scratch resistant
• Strict quality control, Tri-Coded system, to provide readability and uniqueness, and unequaled sample audit traceability
• Super-toughened materials with standing temperatures from -196°C to 120°C for various storage conditions
• RNase / DNase and pyogen-free, can be sterilized using gamma irradiation
• Same material for cap and tube, effectively prevents the uneven expansion during freeze-thaw cycles

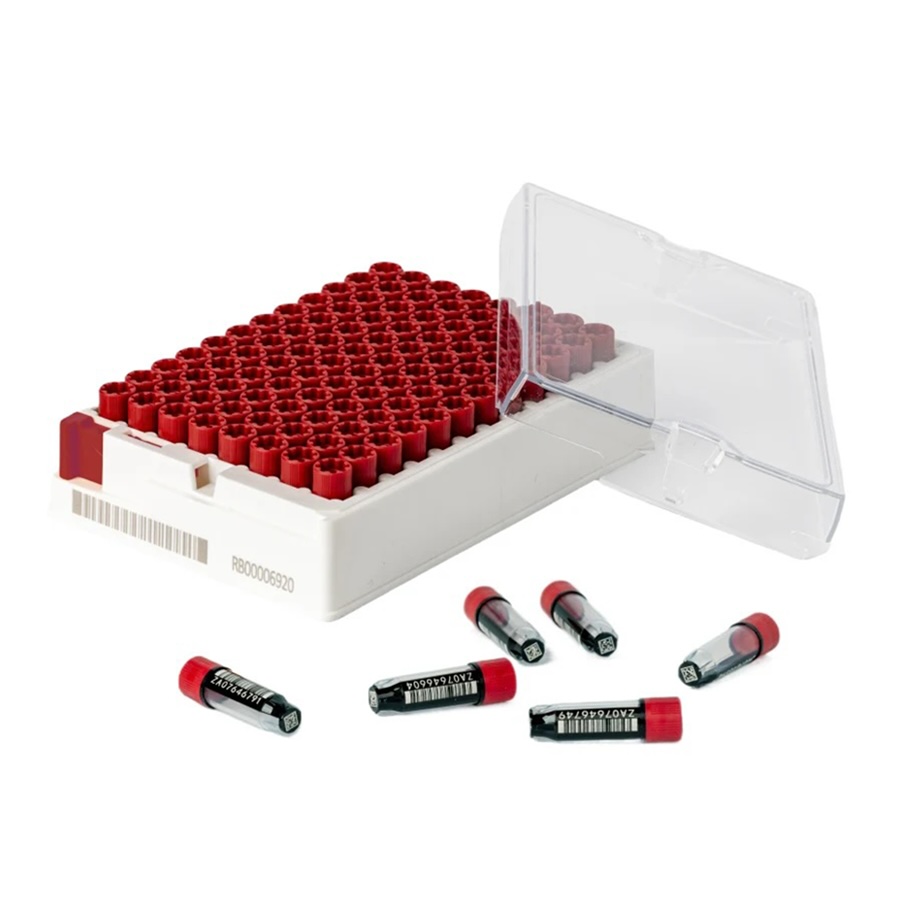

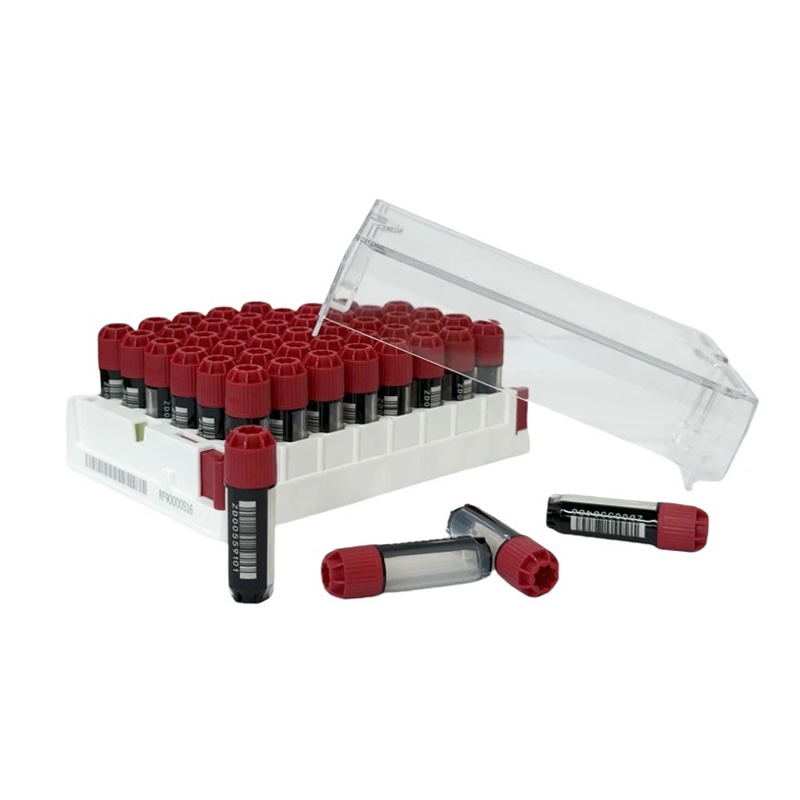

• Direct code reading with the tubes on the rack. Rack is SBS format
• External thread tubes provide a larger working volume
• Multi-color caps offer 5 different options to facilitate research for different samples
• Non-silicone seal with unique thread to prevent over-tightening

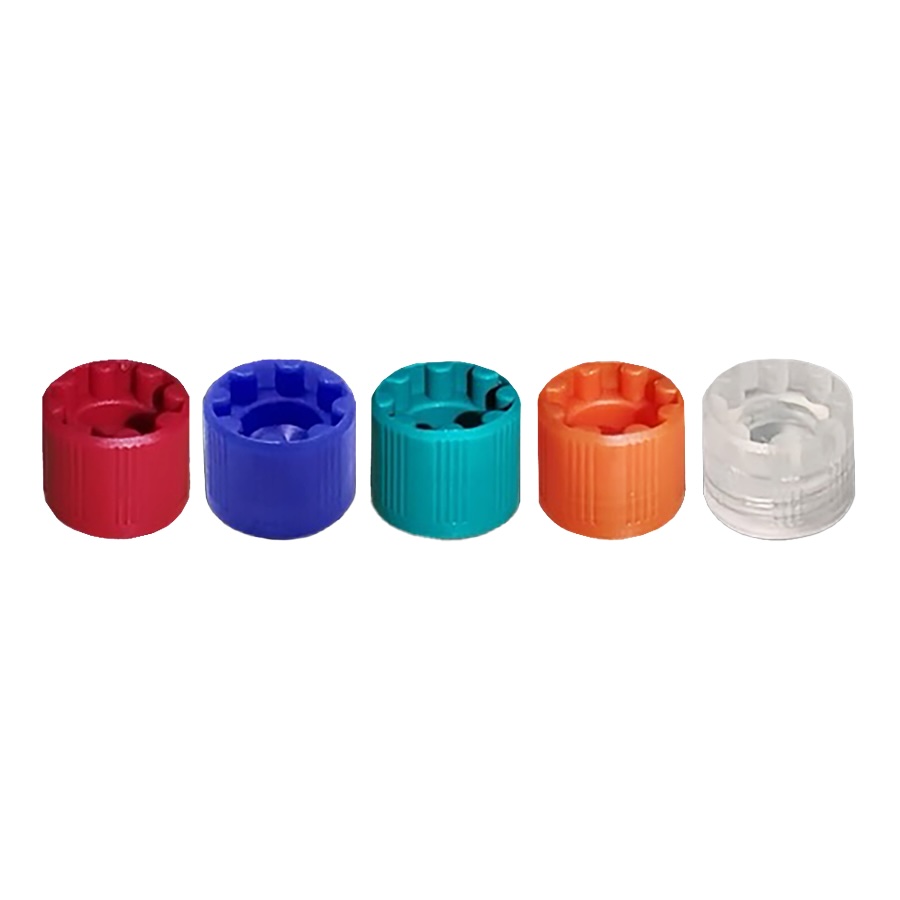

Multi-color caps and racks for customization

• Caps Color: Red, Green, Blue, Orange, Transparent
• Tube Racks: White base, Black base

Specifications


Tube Vol.	0.5 mL	1 mL	2.0 mL
Max. Working Vol.	0.58 mL	1.15 mL	2 mL
Tube Height	1.06 In. | 26.82 mm	1.83 In. | 46.59 mm	1.51 In. | 38.43 mm
Tube Height w/ Cap	1.16 In. | 29.58 mm	1.94 In. | 49.34 mm	1.70 In. | 43.12 mm
Inner Diameter	0.26 In. | 6.5 mm	0.26 In. | 6.5 mm	0.38 In. | 9.6 mm
Outer Diameter w/ Cap	0.34 In. | 8.7 mm	0.34 In. | 8.7 mm	0.50 In. | 12.8 mm
Center to Center	0.35 In. | 9 mm	0.35 In. | 9 mm	0.53 In. | 13.5 mm
Min. Temp.	-196 ºC (-320 ºF)	-196 ºC (-320 ºF)	-196 ºC (-320 ºF)
Format	96-format	96-format	48-format
2D-code on base	√	√	√
1D Linear Barcode on side	√	√	√
1D Linear Barcode on rack	√	√	√
Rack Dimensions (D x W x H)	5.04 x 3.34 x 1.42 In. 128 x 85 x 36 mm	5.04 x 3.34 x 2.13 In. 128 x 85 x 54 mm	5.04 x 3.34 x 1.89 In. 128 x 85 x 48 mm
Rack Weight	0.315 lb | 0.143 kg	0.445 lb | 0.202 kg	0.450 lb | 0.204 kg
Case Weight	3.46 lb | 1.57 kg	4.89 lb | 2.22 kg	5.00 lb | 2.27 kg
