Hoefer® Submarine Gel Electrophoresis Systems

• Color-coded and height-adjustable combs easily identify comb thickness at a glance and control well depth
• Colored loading strips - for easy well detection when loading
• UV-transparent running tray allows user to image gel without risk of damage due to handling
• Buffer recirculation ports may be connected to a peristaltic pump for buffer recirculation during electrophoresis to maintain buffer pH and prevent ionic gradient formation (*Not included for SUB6 and SUB10)
• Includes
• Buffer Chamber Assembly, 1/ea
• Safety Lid, 1/ea
• High Voltage Leads, 1/ea
• Colored Loading Strips, 1/ea
• Buffer Recirculation Ports, 2/pk (*Not included for SUB6 and SUB10)
• Running Tray, 1/ea
• Combs, 1/ea

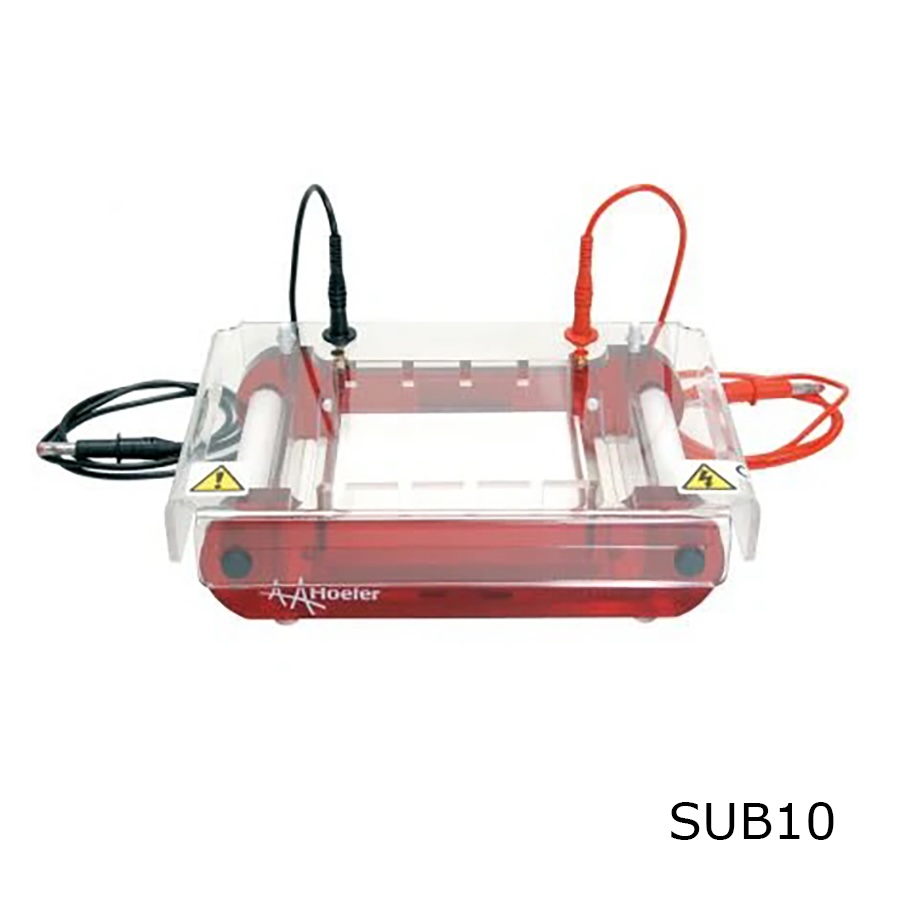

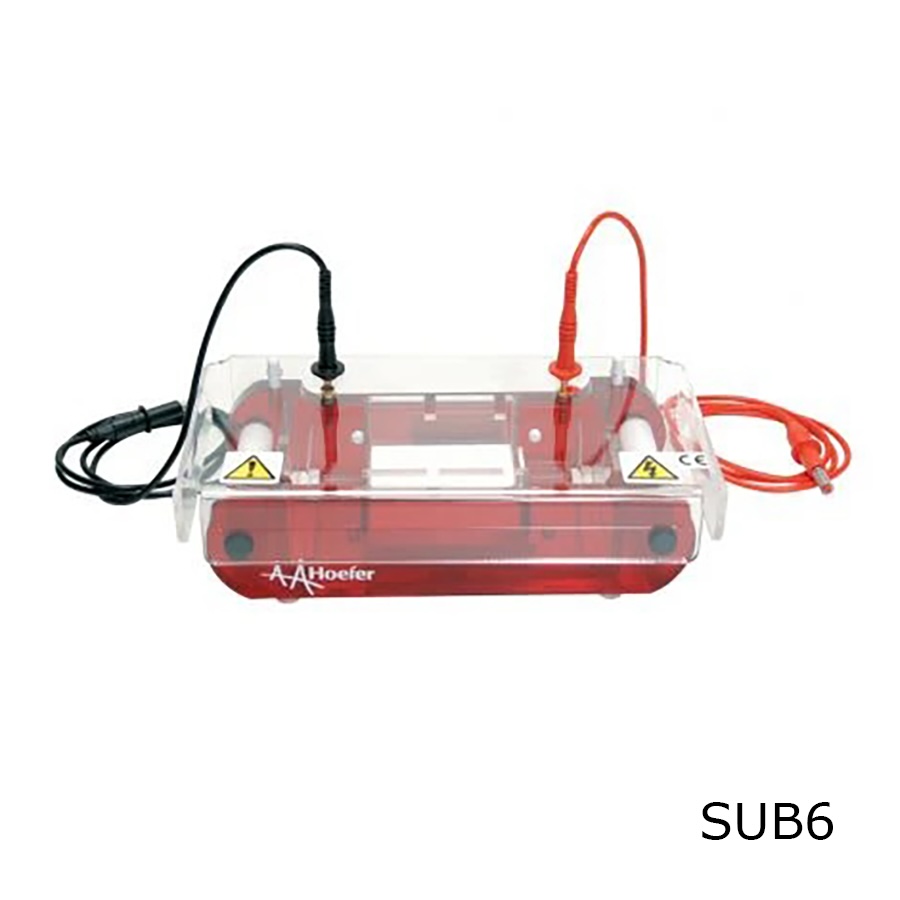

Mini (SUB6), Mini+ (SUB10) and Midi (SUB13) Submarine Gel Electrophoresis Systems

The SUB6 and SUB10 are ideal for routine nucleic acid preparatory and analytical electrophoresis techniques. SUB13 Midi is ideal for analytical and preparative studies of nucleic acids. Maximum of 32-sample (SUB6), 80-sample (SUB10), or 112-sample (SUB13) throughput capacity and features a removable gel-casting tray with end gaskets that allow gels to be cast directly within the tank.

• Compact tank reduces the buffer volume required to cover the gel, providing greater control over the voltage gradient and run-time
• Side handles for safe and easy transportation around the laboratory
• Includes
• Running Tray with Silicone Gasket*
• 1 mm thick, 8-well combs, 2/pk (SUB6 Only)
• 1 mm thick, 16-well combs, 2/pk (SUB10 and SUB13 Only)

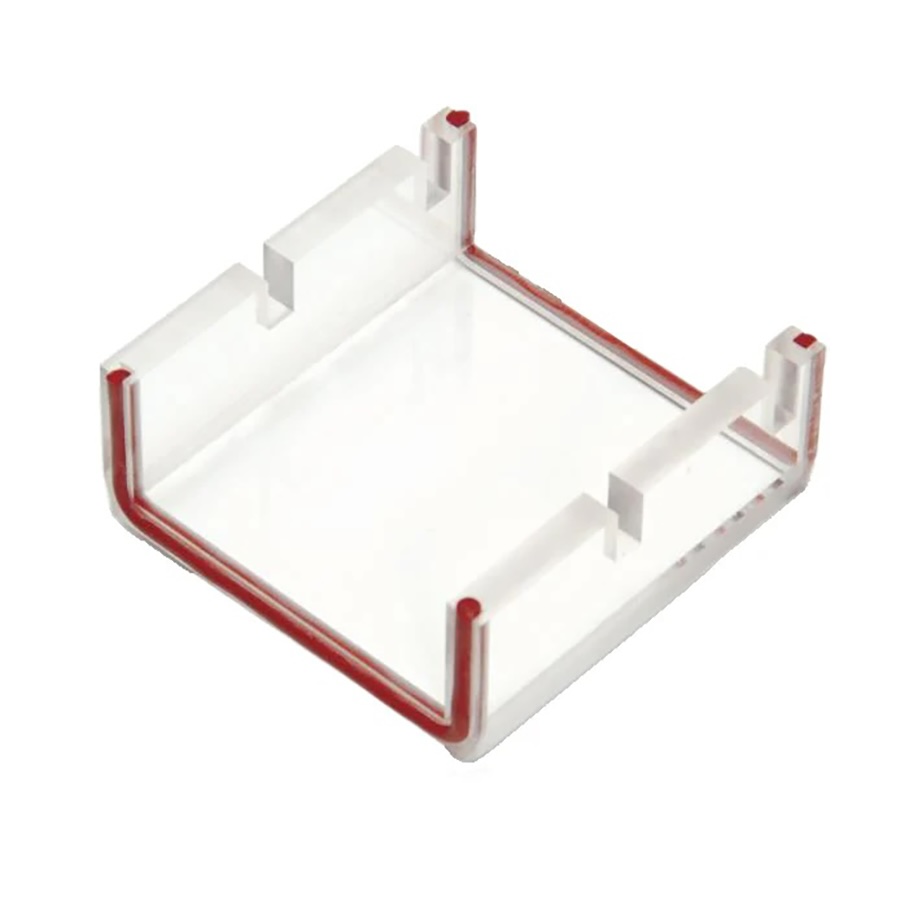

*The included running tray is lined with silicone gaskets, which form a leak-proof seal against the inner walls of the running chamber when the running tray is turned 90° to the direction of electrophoresis.

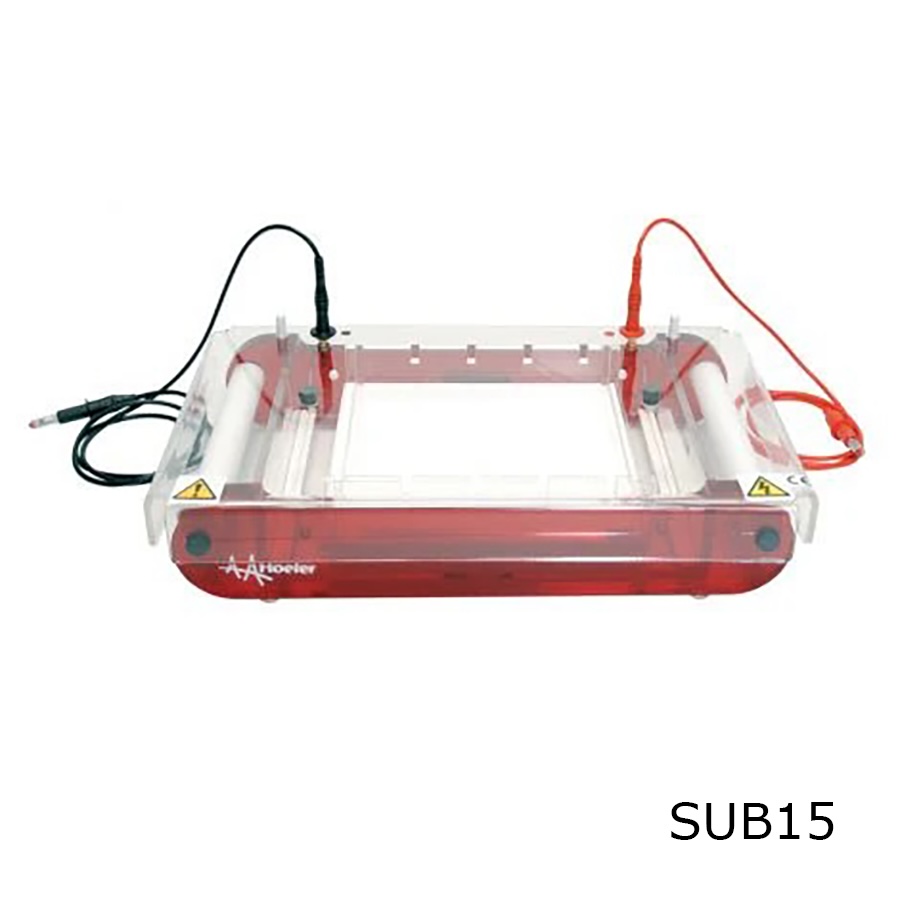

Standard (SUB15) Submarine Gel Electrophoresis System

Provides the most commonly used tray size and comb options. Highly versatile option for screening nucleic acid samples ranging from DNA mini-preps to PCR products. 120-sample maximum throughput.

• The market standard - a 15 x 15 cm gel tray, with comb options ranging from 1 to 30 samples
• Multi-channel pipette compatible combs with a maximum 30 sample throughput reduce gel loading time, while preparatory combs enable nucleic acids to be scaled up for cloning
• Side handles for safe and easy transportation around the laboratory
• Includes
• Running Tray with Casting Gates*
• 1 mm thick, 16-well combs, 2/pk

*The included casting gates conveniently and efficiently seal the running tray without the hassles of using tape.

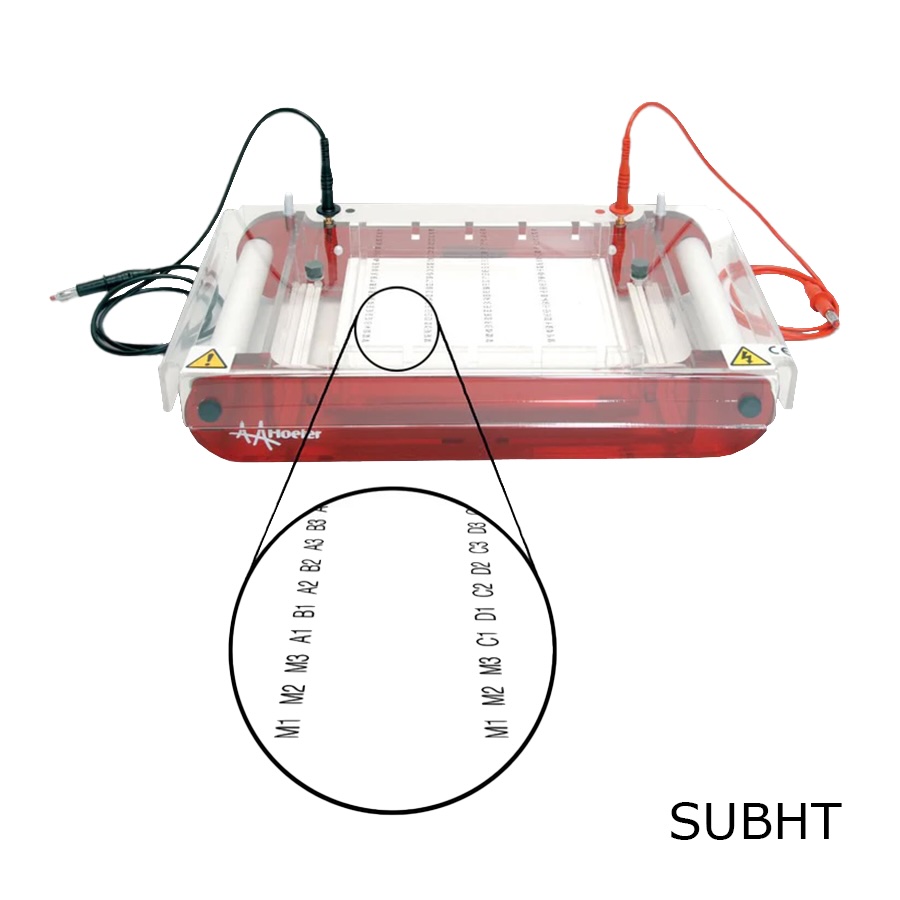

High Throughput (SUBHT) Submarine Gel Electrophoresis System

Ideal for high throughput screening applications like single strand polymorphism (SSP) analysis following PCR. This horizontal gel unit can resolve DNA strands from 50 – 1000 base pairs in 30 minutes and accommodate up to 120 samples (96-well plate + 24 control and/or marker samples).

• Fast, error-free loading - Load an entire 96-well plate using a multichannel pipette
• Simplified analysis - Fluorescent labels for each sample printed on a UV transparent gel tray allows for instant sample identification (matched to a 96-well plate) during post-run visualization
• Eliminate variability caused by running buffer pH drift and ionic gradient formation with optional buffer recirculation capability
• Compact tank design needs less buffer to cover gel which not only reduces buffer consumption but provides greater control of voltage gradients and run times
• Fully compatible with a wide range of combs and accessories to meet all your high throughput and standard gel analysis needs
• Includes
• Fluorescent Labeled Running Tray with Casting Gates
• 1 mm thick, 30 well combs, 4/pk

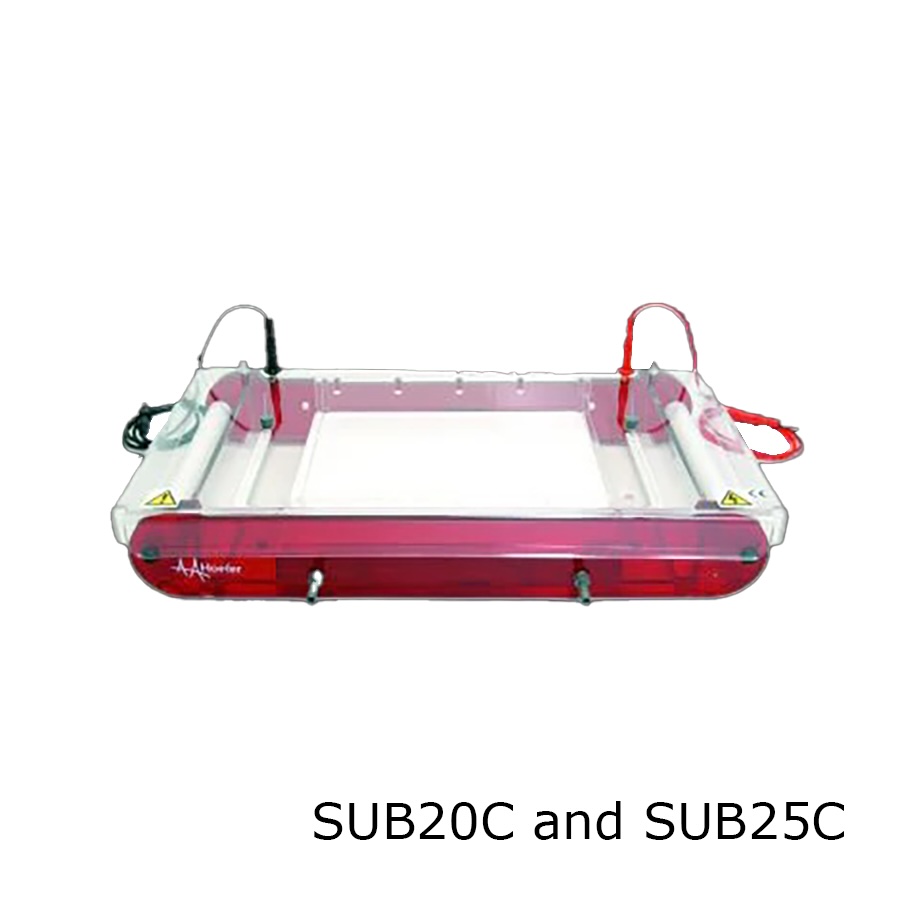

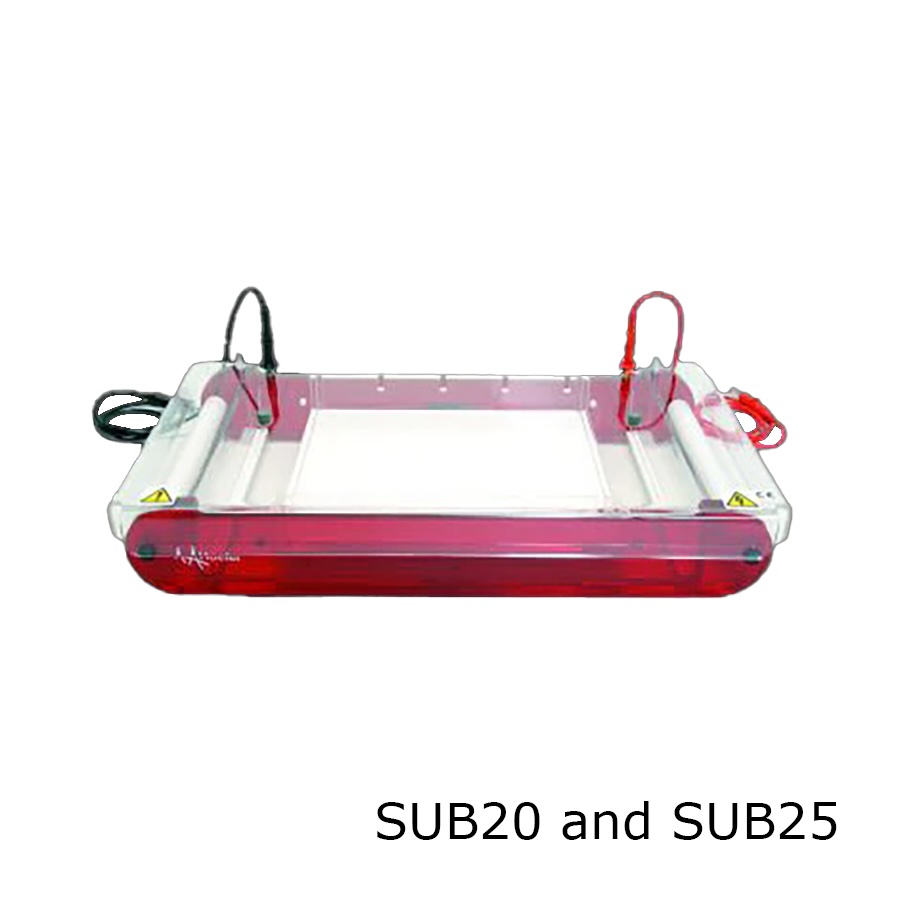

Maxi-Standard (SUB20) and Maxi-Cooled (SUB20C) Submarine Gel Electrophoresis Systems

20 x 20 cm gel-running tray with four comb positions, which allows the user to perform high-resolution analytical and preparative studies of nucleic acids. Handles up to 168 samples.

• Multichannel pipette compatible combs with a maximum 40 sample throughput reduces gel loading time
• Side handles for safe and easy transportation around the laboratory
• Includes
• Buffer Chamber Assembly with Cooling Ports (SUB20C Only)
• Running Tray with Casting Gates
• 1 mm thick, 16 well combs, 2/pk

*The included casting gates conveniently and efficiently seal the running tray without the hassles of using tape.

Maxi-Plus Standard (SUB25) and Maxi-Plus Cooled (SUB25C) Submarine Gel Electrophoresis Systems

Ideal for high-throughput screening of nucleic acids, particularly PCR products, and in genotyping studies. It has a 25 x 30 cm gel-running tray with 12 comb positions accommodating a maximum throughput of 624 samples.

• Multichannel pipette compatible combs—with a maximum 52 sample throughput, reduce gel loading time
• Side handles—for safe and easy transportation around the laboratory
• Includes
• Buffer Chamber Assembly with Cooling Ports (SUB25C Only)
• Running Tray w/Casting Gates
• 1 mm thick, 26 well combs, 6/pk

Specifications


Item #	SUB6	SUB10	SUB13	SUB15	SUBHT	SUB20	SUB20C	SUB25	SUB25C
Gel Dims (W x L)	2.36 x 2.95 In. 6 x 7.5 cm	3.94 x 4.53 In. 10 x 11.5 cm	2.04 x 5.91 In. 12.8 x 15 cm	5.91 x 5.91 In. 15 x 15 cm		7.87 x 7.87 In. 20 x 20 cm		9.84 x 11.81 In. 25 x 30 cm
Max. Buffer Vol.	325 mL	450 mL	900 mL	1.2 L		2.2 L		3 L
Max. Power	300 V, 200 mA, 60 W					1000 V, 500 mA, 500 W
Max. Capacity	32 Samples	80 Samples	112 Samples	120 Samples	120 Samples	160 Samples	160 Samples	624 Samples	624 Samples
Max. Running Temp.	113ºF | 45°C
Indoor Use	39.2 to 104ºF | 4 to 40°C
Humidity	Up to 80%
Dims (D x W x H)	9.44 x 5.12 x 2.56 In. 24 x 13 x 6.5 cm	9.06 x 6.50 x 2.56 In. 23 x 16.5 x 6.5 cm	12.60 x 7.87 x 2.76 In. 32 x 20 x 7 cm	13.19 x 8.46 x 2.76 In. 33.5 x 21.5 x 7 cm		18.70 x 10.63 x 3.15 In. 47.5 x 27 x 8 cm		22.05 x 13.78 x 3.54 In. 56 x 35 x 9 cm
Weight	3.31 lb | 1.50 kg	3.75 lb | 1.70 kg	5.95 lb | 2.70 kg	6.39 lb | 2.90 kg	6.48 lb | 2.94 kg	N/A		15.87 lb | 7.20 kg
