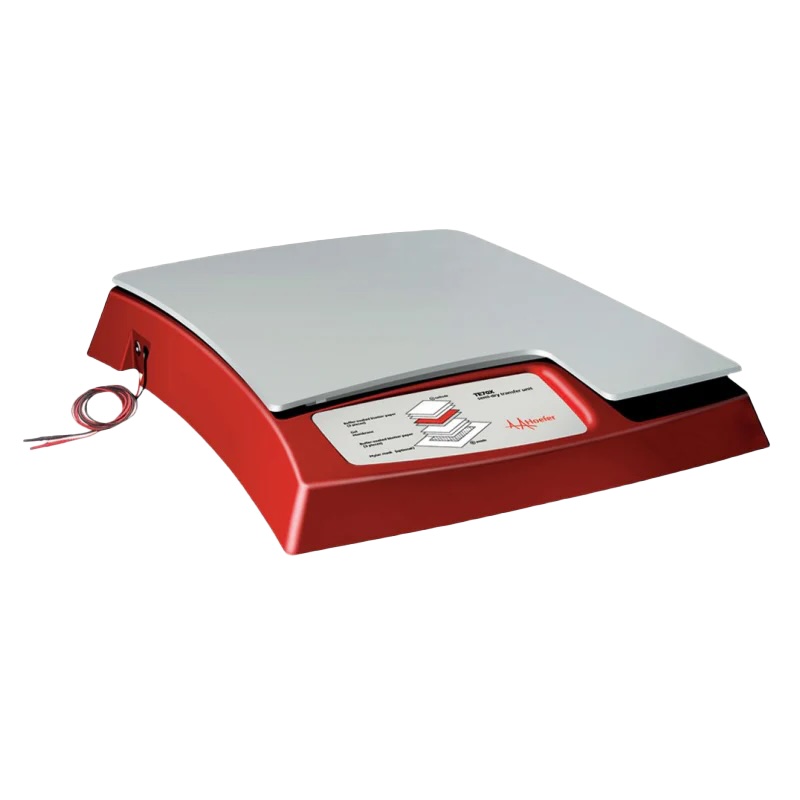

Hoefer® Semi-Dry Transfer Units

Item #: ASHOFRSEMIDRYTNSFR


Hoefer® Semi-Dry Transfer Units



Hoefer® Semi-Dry Transfer Units are efficiently designed to use minimal buffer to transfer proteins from polyacrylamide gels onto membranes (either nitrocellulose or PVDF) in less than an hour. They support as many as two layers of gels being transferred simultaneously. The TE70XP has a 14 x 16 cm maximum transfer area, which can handle up to four mini gels using the stacked format. The TE77X and TE77XP have a 21 x 26 cm transfer area for a capacity of up to 12 mini gels at one time.

  • Included safety circuit breaker—limits voltage and current from the user's power supply, preventing electrical damage to the transfer unit
  • Requires minimal current—does not generate the excessive heat that can dry out the transfer stack and halt transfer or damage transfer units
  • Durable iridium oxide and stainless steel electrodes—allow for contamination free, consistent transfer
  • Vented electrodes—prevent buildup of bubbles which may impair transfer
  • Minimal buffer requirements—reagent cost and preparation time are reduced

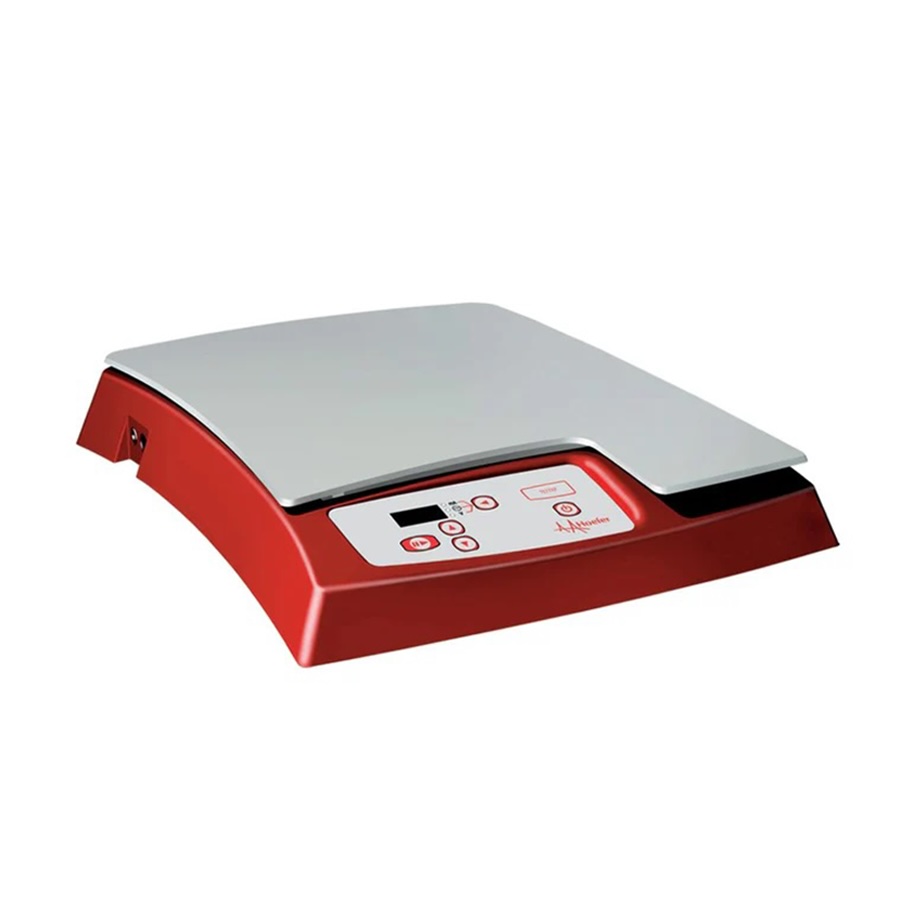

  • The TE70XP and TE77XP Semi-Dry Transfer Units have an intelligent built-in power supply that prevents the stack from overheating by monitoring the transfer status

All units include

  • Molded Base with Platinum-Coated Titanium Anode and High Voltage Leads
  • Hinged Lid with Stainless Steel Cathode

TE77X includes

  • Blotting Paper (21 x 26 cm), 25/pk
  • Porous Cellophane (20 x 35.5 cm), 50/pk
  • Mylar® Masks (23 x 27.5 cm), 2/pk
  • Hinged Lid with Stainless Steel Cathode, 1/ea

TE70XP includes

  • Blotting Paper (14 x 16 cm), 25/pk
  • Porous Cellophane (20 x 35.5 cm), 50/pk
  • Mylar® Masks (16.5 x 18.5 cm), 2/pk

TE77XP includes

  • Blotting Paper (21 x 26 cm), 25/pk
  • Porous Cellophane (20 x 35.5 cm), 50/pk
  • Mylar® Masks (23 x 27.5 cm), 2/pk

Specifications

Item # TE77XTE70XPTE77XP
Transfer
Area		Up to 21 x 26 cm
Up to 8.27 x 10.24 In.		Up to 14 x 16 cm
Up to 5.51 x 3.60 In.		Up to 21 x 26 cm
Up to 8.27 x 10.24 In.
Max. Power30 V, 500 mA, 15 W
Max. Temp.113ºF | 45°C
Indoor Use 39.2 to 104ºF | 4 to 40°C
Humidity Up to 80%
Dims (D x W x H)3.54 x 14.96 x 18.11 In. | 9 x 38 x 46 cm
Weight16.31 lb | 7.40 kg

Proudly made in the USA! Click here for more made in America products!

Standard Transfer Tank
Item#:
ASHOFRSTT

Mighty Small Transfer Tan
Item#:
ASHOFRMSTT

SKU Number Type Blotting Capacity Qty Price Quantity Add to Cart
TE77X Semi-Dry Transfer Unit Transfer from polyacrylamide gels Up to 21 x 26 cm 1/ea
1630.00
Each
TE77XP Semi-Dry Transfer Unit w/ PS Transfer from polyacrylamide gels Up to 21 x 26 cm 1/ea
2200.00
Each
TE70XP Semi-Dry Transfer Unit w/ PS Transfer from polyacrylamide gels Up to 14 x 16 cm 1/ea
2160.00
Each
