Hoefer® miniVE Vertical Protein Electrophoresis and Blotting System

The SE300 minVE is a sturdy, compact vertical protein electrophoresis unit that also performs electrotransfer (blotting).

• Quick, excellent results using minimal buffer
• Passive cooling produces gels with straight lanes and sharp bands
• Cast your own or use precast gels from a variety of manufacturers
• Transfer up to 4 gels in 45 minutes with only 300 mL buffer using optional SE302 Blot Modules
• Designed for use with a wide variety of precast gels

Hoefer® miniVE Complete Unit (SE300-10A-10)

• Lower Buffer Chamber (tank), 1/ea
• Gel Modules with Gaskets, 2 assemblies
• Safety Lid with High Voltage Leads, 1/ea
• Glass Plates, Rectangular, 10 x 10.5 cm, 3/pk
• Glass Plates, Notched, 10 x 10.5 cm, 3/pk
• Combs, 10-well, 1.0 mm thick, 2/pk
• T-Spacers, 1.0 mm thick, 4/pk
• Well-Locating Decals, 2/pk
• Wonder Wedge Plate Separation Tool, 1/ea
• Gel Seal, 1/ea

Hoefer® miniVE Basic Unit (SE300)

The same as above without the combs, spacers, and glass plates. For use with precast gels or order two SE211A combs, two sets of 10.5 cm long spacers, and 10 x 10.5 cm rectangular and notched glass plates separately.

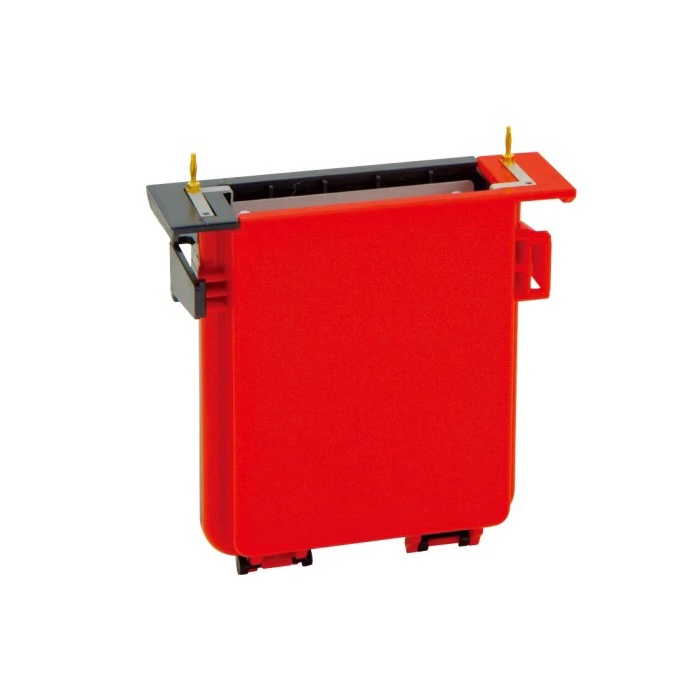

Hoefer® miniVE Blot Module (SE302)

• Blot Module, 1/ea
• Blotter Paper, 25 sheets/pk
• Dacron Sponges, 6 mm thick, 4/pk

Specifications


Plate Size (W x H)	3.94 x 4.13 In or 3.94 x 3.15 In. | 10 x 10.5 cm or 10 x 8 cm
Spacers	0.75 mm, 1.0 mm, 1.5 mm
Max. Power	1000 V, 500 mA, 50 W
Max. Temp.	113ºF | 45°C
Indoor Use	39.2 to 104ºF | 4 to 40°C
Humidity	Up to 80%
Dims (D x W x H)	5.51 x 12.60 x 14.57 In. | 14 x 32 x 37 cm
Weight	4.85 In. | 2.20 kg
