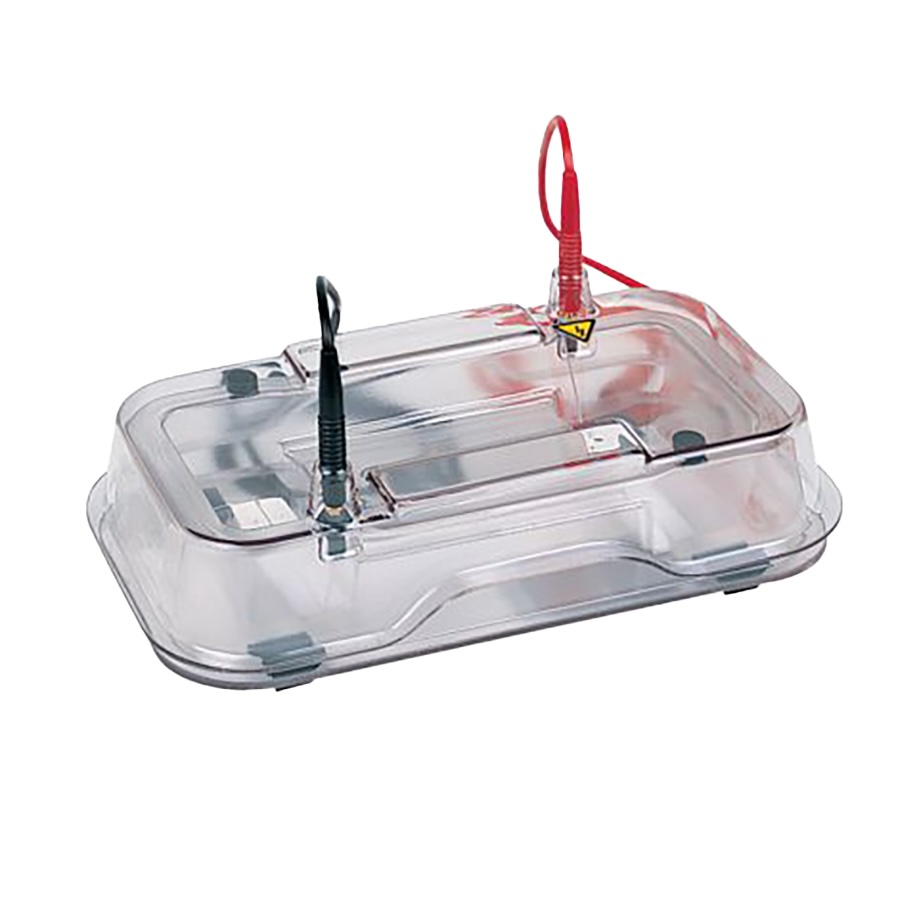

Hoefer® Mini Horizontal Agarose Electrophoresis System

Item #: ASHOFRHE33ES


Hoefer® Mini Horizontal Agarose Electrophoresis System



Designed for very fast separations of DNA restriction fragments in agarose gels. To achieve passive cooling, you simply fill the clear molded base with 50% ethylene glycol coolant solution, seal it, and place it in a freezer or ice bath until ready to use.

  • Fast separations - run a 7 x 10 cm gel in as little as 5 minutes
  • UV-transparent running tray allows the user to image the gel without risk of damage due to handling
  • Variety of comb sizes enables customization of sample throughput to fit your laboratory's requirements
  • Adjustable comb height offers complete control over well depth
  • Gel Casting Kit Includes 7 x 10 cm Running Tray, 7 x 10 cm Casting Tray, and 4 Foam Gaskets

Complete Unit (HE33-8-15)

  • Buffer Chamber Assembly, 1/ea
  • Safety Lid with High Voltage Leads, 1/ea
  • Running Tray, 1/ea
  • Casting Tray, 1/ea
  • Foam Gaskets, 4/pk
  • Bubble Level, 1/ea
  • 1.5 mm thick, 8-well comb, 1/ea
  • Comb Back, 1/ea

Basic Unit (HE33B)

The same as above, without the comb and comb back. Order separately.

Specifications

Gel Dims (W x L)2.76 x 3.94 In. | 7 x 10 cm
Max. Buffer Vol.250 mL
Max. Power500 V for (5 min or less), 500 mA, 15 W
Max. Capacity32 Samples
Max. Temp.122ºF | 50°C
Indoor Use 39.2 to 104ºF | 4 to 40°C
HumidityUp to 80%
Dims (D x W x H) 9.45 x 5.12 x 2.76 In. | 24 x 13 x 7 cm
Weight1.76 lb | 0.80 kg


Proudly made in the USA! Click here for more made in America products!

SE300 miniV
Item#:
ASHOFRSE300MINIVE

Mighty Small II Deluxe
Item#:
ASHOFRMTYSMDLX

SKU Number Type Size Teeth Thickness Qty Price Quantity Add to Cart
HE33-8-15 HE33 Mini (Complete) 7 x 10 cm Varies 0.75, 1.0, or 1.5 mm 1/ea
475.00
Each
HE33B HE33 Mini (Basic) 7 x 10 cm Varies 0.75, 1.0, or 1.5 mm 1/ea
470.00
Each

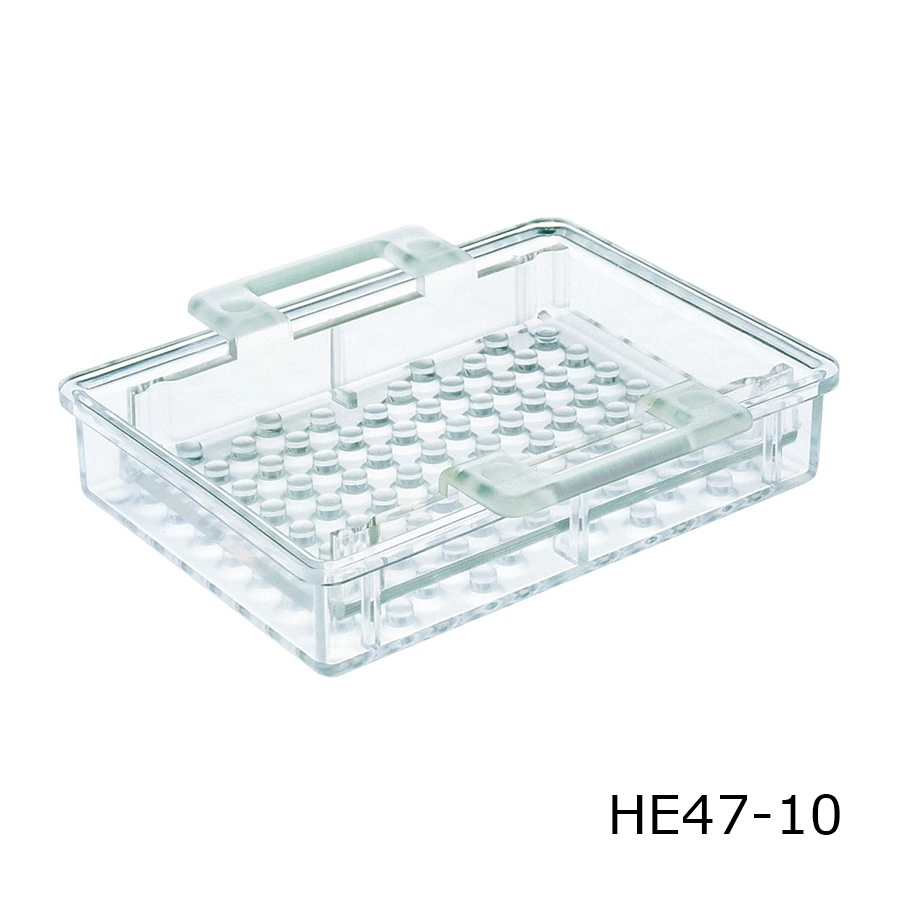

HE47-10 Gel Casting Kit (Cast Tray, Run Tray, 4 Gaskets) 7 x 10 cm N/A N/A 1/ea
138.00
Each

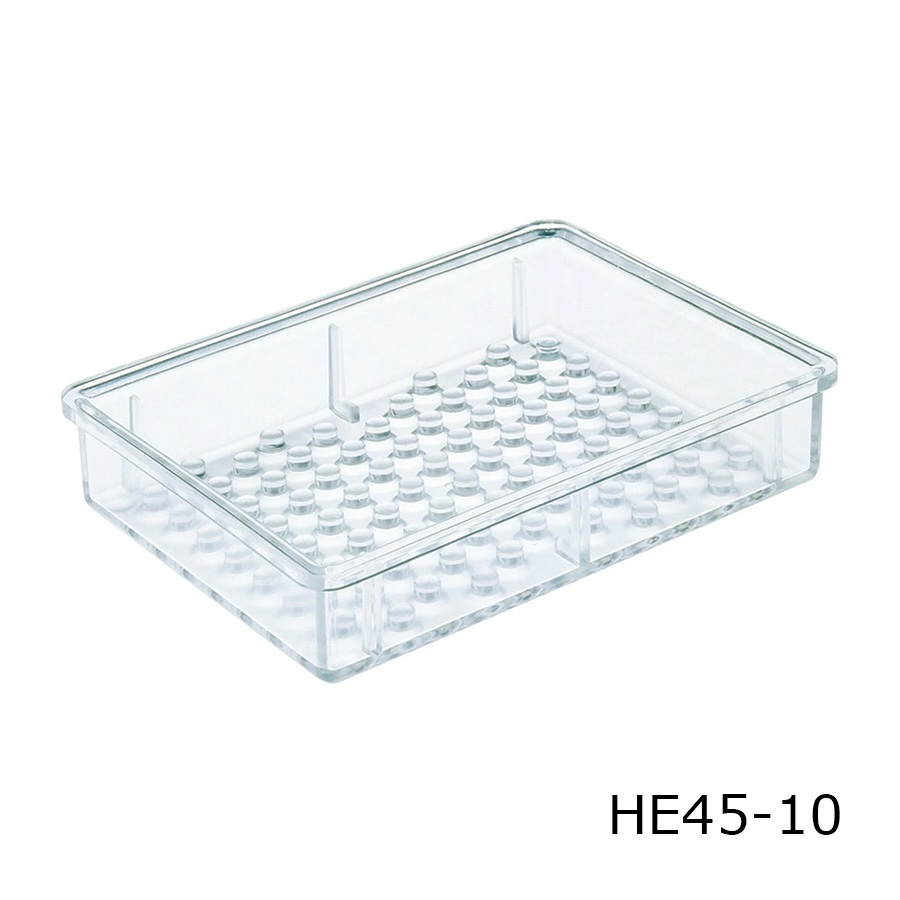

HE45-10 Casting Tray 7 x 10 cm N/A N/A 1/ea
98.00
Each

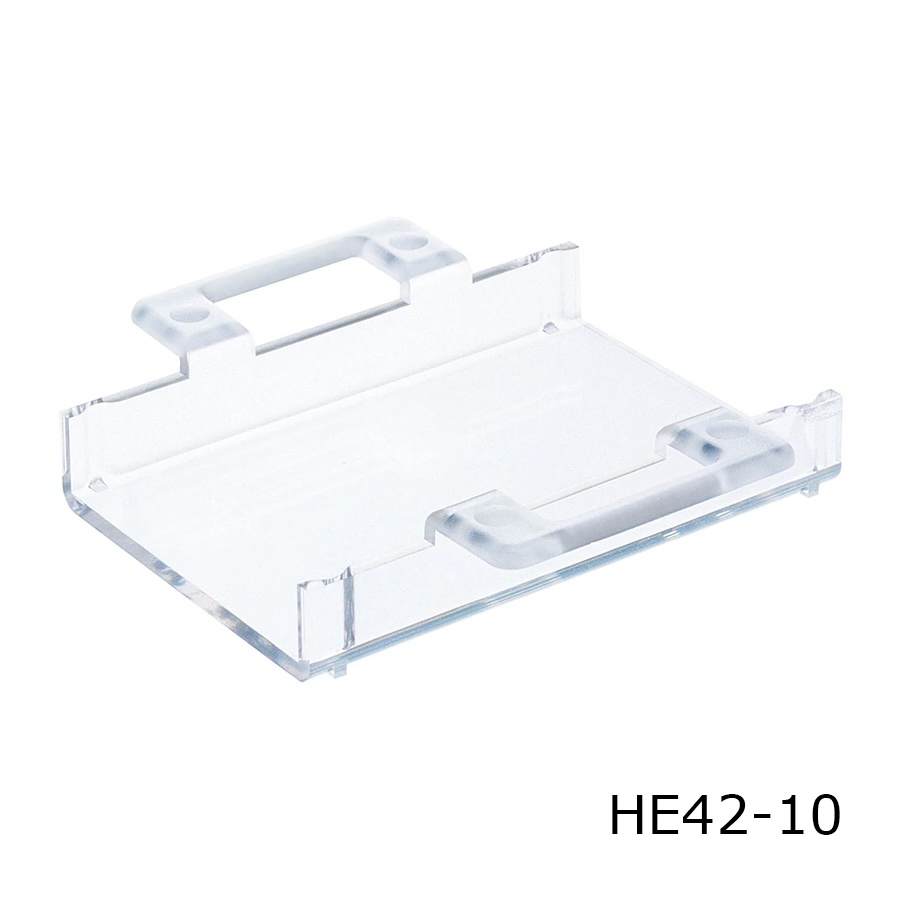

HE42-10 Running Tray 7 x 10 cm N/A N/A 1/ea
98.00
Each
