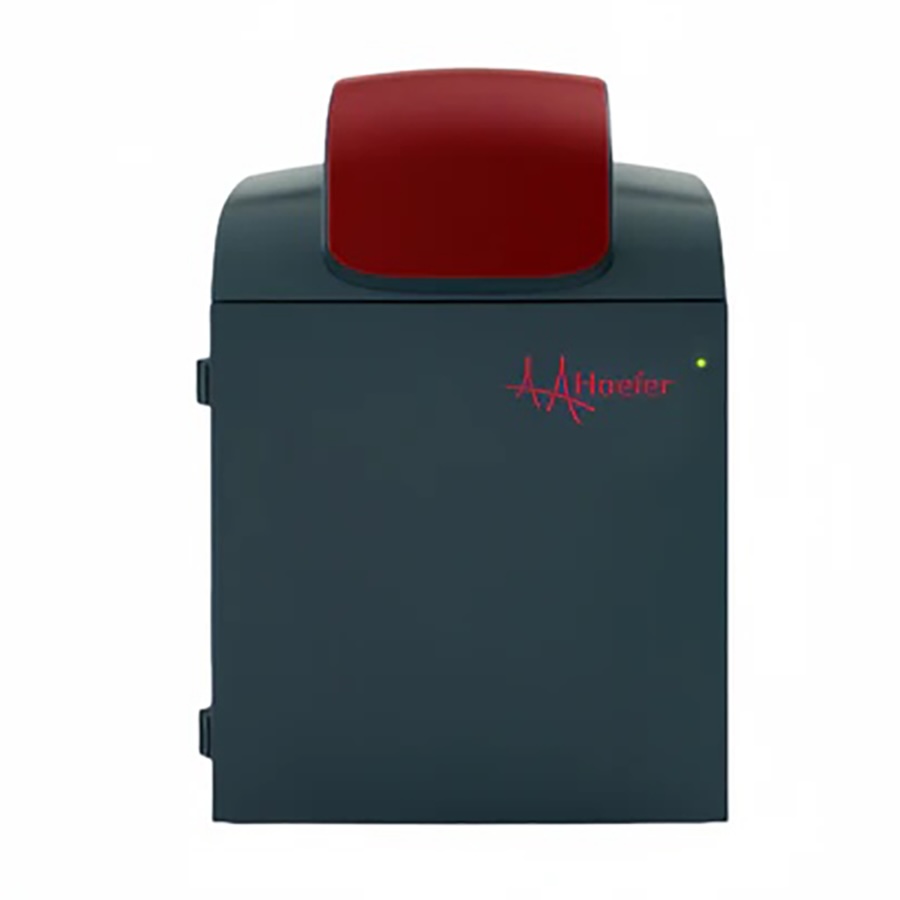

Hoefer® FlexSecure Gel Doc Imaging Systems

Versatile and high-resolution gel doc.

Sensitive

Featuring a high-resolution 5 M pixel camera and motor driven zoom lens, a FXGD3 gives you outstanding images with incredible spatial resolution of both small and large gels. With a FXGD3, you’ll generate images you can trust of close bands or spots.

Flexible

For imaging ethidium bromide gels, you can choose the high-performance UV transilluminator, and you can opt for the blue light converter screen to view safe dyes or choose a white light converter screen for imaging visible stains. Both sit neatly over the transilluminator to give you the right lighting for your application.

Simple

Fully integrated with application-driven GelSys software, you can detect nanogram quantities of DNA and proteins every time with this sensitive imager.

Secure

You can save and print your publication quality results, and with full audit trails, your data is fully secure when used in a 21 CFR Part 11 compliant environment. IQ/OQ/PQ documentation is available, allowing the user to verify that a system meets defined installation, quality, and performance specifications.

Future-Proof

With our guarantee of free software upgrades and unlimited copies of GelTools analysis software, not just today but throughout your system’s life, your FXGD3 will always have the latest imaging and analysis capabilities. FXGD3 can be upgraded to a Chemi FX system for imaging chemiluminescence and western fluorescence.

Imaging System Includes

• The mainframe equipment
• UV Transilluminator (25 x 30 cm; 302 nm)
• Visible light converter (Silver Stain, Coomassie Blue)
• UV to Blue Light converter, suitable for 'safe' dyes (GFP, SYBRGreen, SYPRGold, SYBRSafe, SYPRORuby)

Imaging Unit Includes

• The mainframe equipment
• Order Transilluminator, Visible light converter, and Blue Light converter separately

Specifications


Image Resolution	5 MP
Effective Resolution	15.1 MP
A/D	12 / 16 bit
Greyscale	65,536
Lens	Zoom F1.2 w/ lens feedback option (motor driven)
Filter Wheel	7-Position Motor Driven
UV Filter	Yes
Use with external PC & Printer	Yes (not included)
Lighting (included)	Epi LED White Lights
Max Image Area	12.80 x 9.48 In. | 325 x 241 mm
Min Image Area	2.20 x 1.65 In. | 56 x 42 mm
Dims (WxHxD)	22.44 x 33.07 x 21.26 In. | 570 x 840 x 540 mm
Weight	81.57 In. | 37 kg
Power input	100-240 V
Lighting (optional)	Epi UV Short, Medium and Long wave Visible Light Converter (33 x 31 cm) White light pad for visble stains (20 x 14 cm) UltraBright LED Blue Light Transilluminator (20 x 16 cm) 20 x 20 cm or 25 x 30 cm Short. Medium or Long wave or dual wavelength
