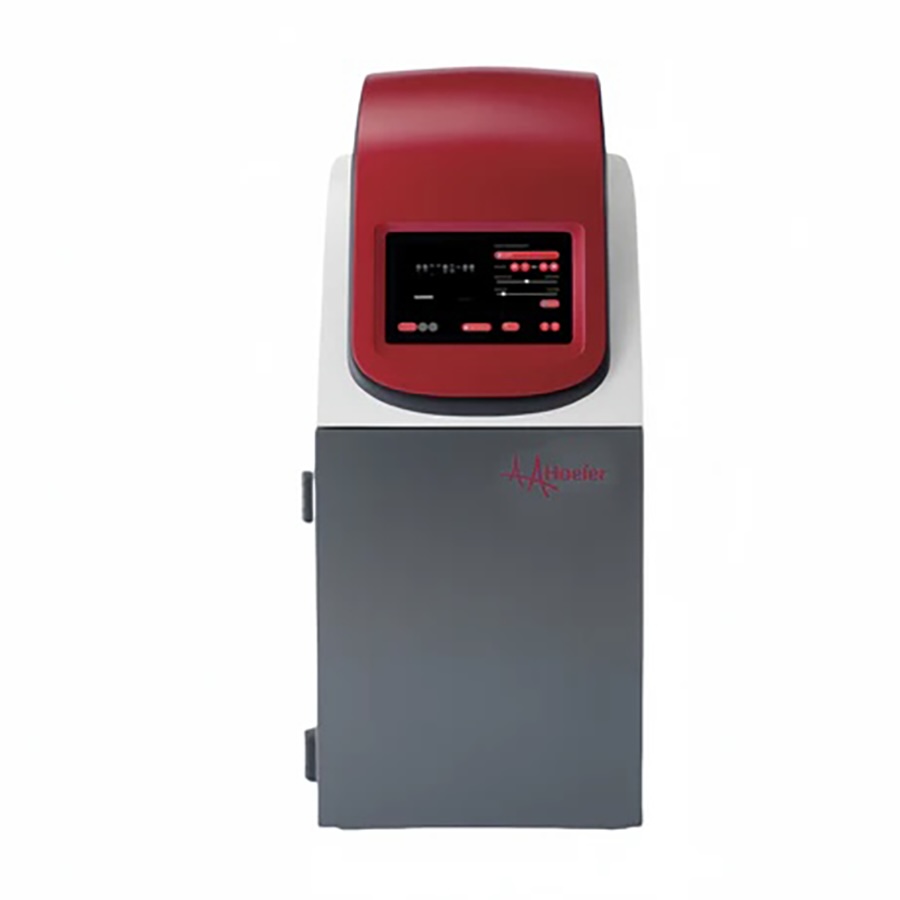

Hoefer® FlexPro Gel Doc Imaging Systems

• Flexible connectivity, great analysis
• Flexible DNA, stain free, autorad analysis
• Intuitive touch screen system
• Compact benchtop size with built in PC

Powerful


A groundbreaking 5 m pixel camera gives exquisite pixel resolution and unrivaled sensitivity in its class. FPGD2 uses an f/1.2 motor-driven zoom lens to enable perfect gel or blot-size imaging. The maximum viewing area is 20 x 24 cm, which is very large for such a small, compact unit.

Flexible

Internal lighting includes a UV transilluminator option for working with DNA gels, stain free and autorad analysis. The overhead LED white lighting is included as standard for easy sample positioning and focusing.

Versatile

The FPGD2 has been designed for stain free applications. Its camera enables the sample to be exposed for extended periods. Safely excise your DNA bands from an agarose gel with the darkroom door open, using the optional safety shield protecting the user when working with UV.

Intuitive

Images are saved directly to USB or network for easy transfer. Quickly generate quantitative data with GelTools analysis software. FPGD2 comes with unlimited copies of GelTools.

Imaging System Includes

• The mainframe equipment
• UV Transilluminator (20 x 20 cm; 302 nm)
• Visible light converter (Silver Stain, Coomassie Blue)
• UV to Blue Light converter, suitable for 'safe' dyes (GFP, SYBRGreen, SYPRGold, SYBRSafe, SYPRORuby)

Imaging Unit Includes

• The mainframe equipment
• Order Transilluminator, Visible light converter, and Blue Light converter separately

Specifications


Image Resolution	5 MP
Bit Depth	12 / 16 Bit
Dynamic Range	3.6 / 4.8 OD
Lens	8 - 48 mm F / 1.2
Sample Size	7.87 x 9.45 In. | 20 x 24 cm
Sensor	25.4 mm | 1 / 2.5 In.
Dims (D x W x H)	17.72 x 12.20 x 29.53 In. | 450 x 310 x 750 mm
Weight	44.09 lb | 20 kg
Power Input	100 - 240 V
Touch Screen Size	7 In.
Memory	80 GB
OS	Windows 10 Enterprise LTSC
