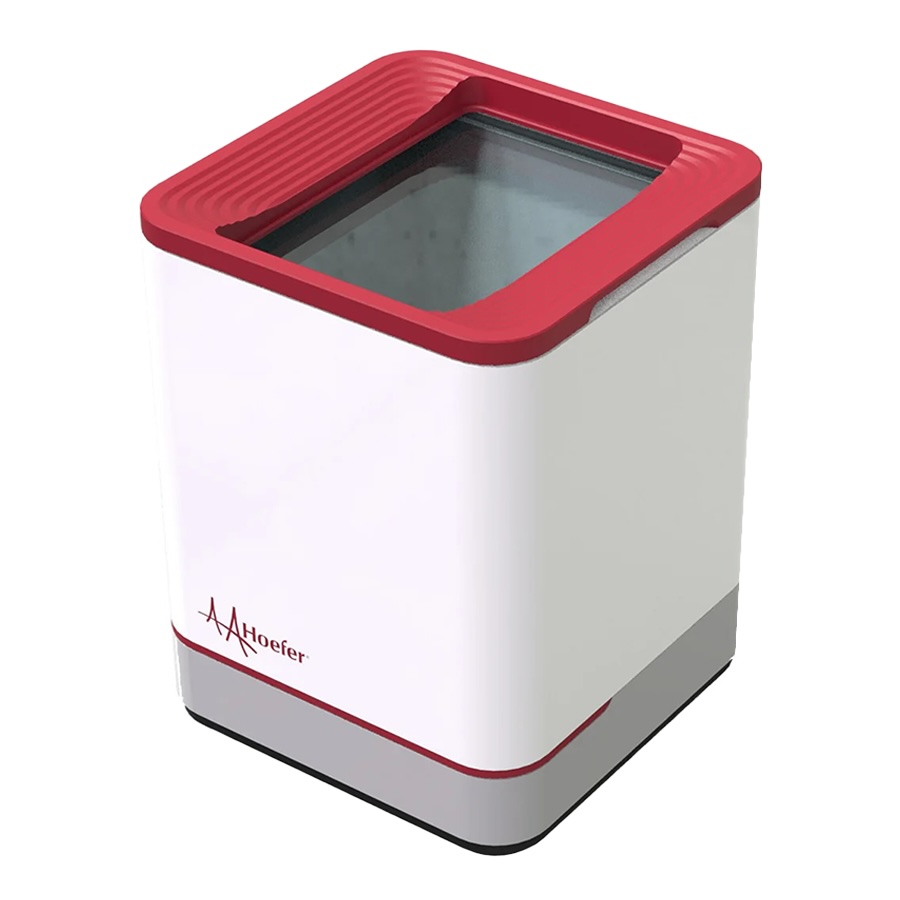

Hoefer® Barcode Reader

Hoefer® Barcode Reader uses a high-resolution, camera-based imaging system to provide a very effective reading of whole SBS rack tubes. With an integrated sample management software, it is an ideal tool for precise identification of 2D codes and sample traceability, can meet the requirements of sample storage of any lab.

• Decode a whole rack of tubes in less than 1 second, capable of reading a whole rack of tubes or a single tube
• Direct USB power supply and data transfer via Type-C or USB 3.1 ports
• Use with any 2D-coded tubes in SBS format rack, available for 24, 48, 96, and 240 format SBS racks
• Data output choice with Excel, CSV, text, TCP/IP, ODBC, etc
• Remote control via TCP/1P, allowing synchronized code-reading in multi-computers
• Compact size, suitable for small workbench operation
• High resolution camera, to provide clearer pictures and more accurate reads

Specifications


Camera Resolution	12 MegaPixel
Linear Barcode Reader	Optional (70-4012)Plug directly into PC
Communication	Type C & USB
Decodable Formats	2D Data Matrix®, QR Codes, ISO 16022, Square and Rectangular Format, ECC 200,0-20 grid sizes, White on Black and Black on White, Numeric and Alphanumeric
Tube Formats	Almost all tubes in SBS format rack. Either 24, 48, 96, 240 or 384-formats.
Total Read Time	< 0.5 second
Operating Systems	Windows7,  Windows8, Windows10, Windows11
DimensionD x W x H	5.79 x 5.79 x 7.87 In. | 147 × 147 × 200 mm
Weight	2.20 lb | 1 kg
