Guardian™ 2000 Hotplates and Stirrers

Item #: ASGRDN2000HS

Specifications

Capacity 15 L
Control Analog
Work Environment 41°F to 104°F (5°C to 40°C), 80% RH, Non-condensing
Safety Certification TUV
Speed Range 200 to 1600 rpm



Item # Function Plate
Construction		 Plate Size
(D x W)		 Temp.
Range		 Power
Consumption		 Dimensions
(D x W x H)		 Net
Weight		 Power
30680257 Heating & Stirring Ceramic-coated
Stainless
Steel		 5.3 In.
135 mm		 50°C to
380°C		 535 W 10.4 x 4 x 6.4 In.
264 x 101 x 163 mm		 5.5 lb
2.5 kg		 N/A

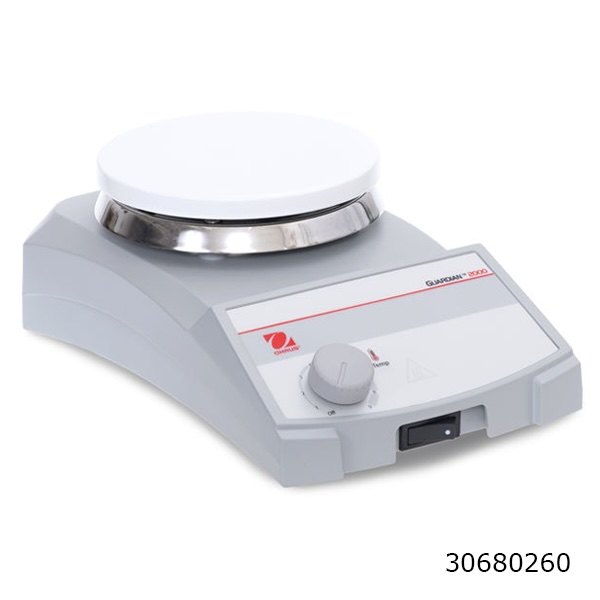

30680260 Heating 505 W 100V-120V~ 5A 50/60Hz

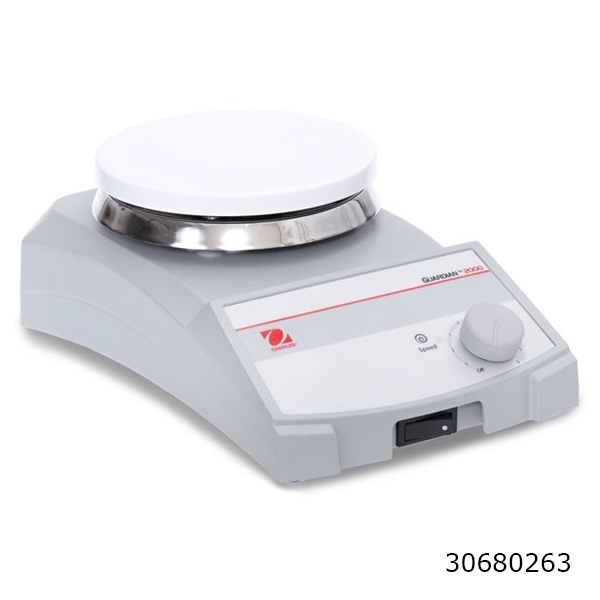

30680263 Stirring 35 W 100V-120V~ 2A 60Hz

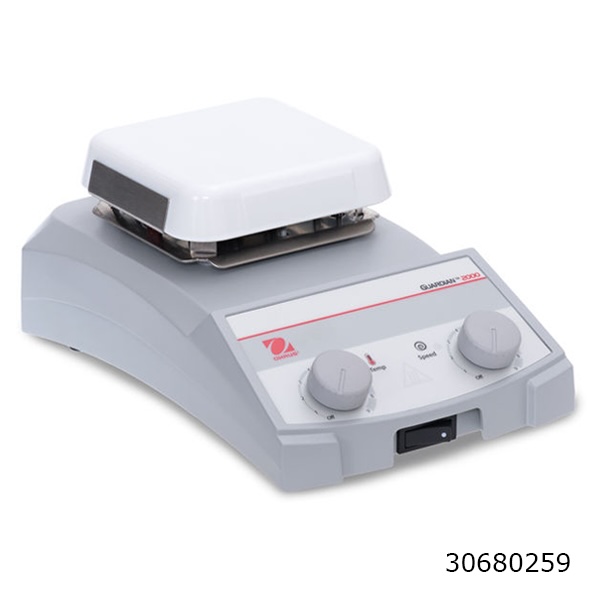

30680259 Heating & Stirring Ceramic 4 x 4 In.
102 x 102 mm		 70°C to
500°C		 535 W 10.4 x 4.3 x 6.4 In.
264 x 110 x 163 mm		 N/A

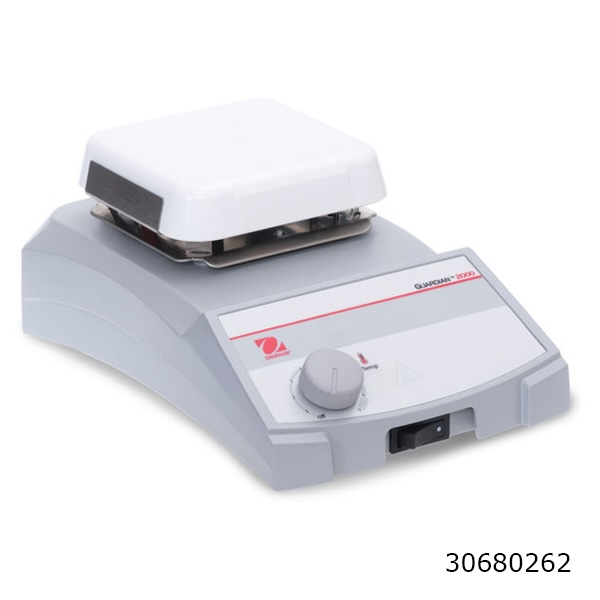

30680262 Heating 505 W 100V-120V~ 5A 50/60Hz

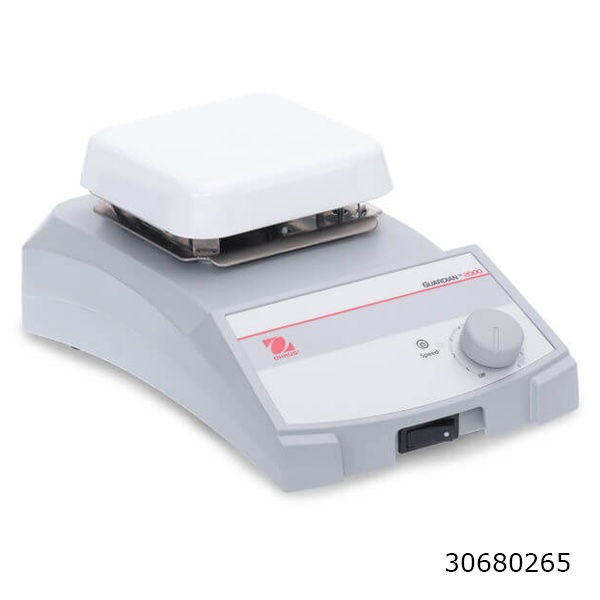

30680265 Stirring Resin 35 W 4.7 lb
2.1 kg		 100V-120V~ 2A 60Hz

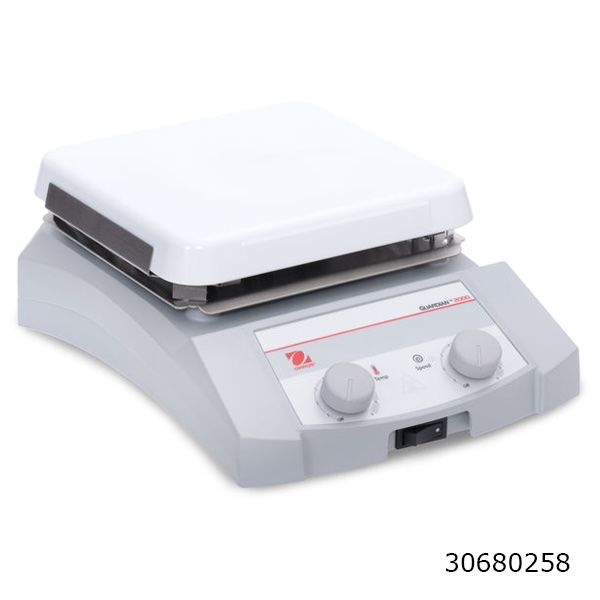

30680258 Heating & Stirring Ceramic 7 x 7 In.
178 x 178 mm		 1,035 W 12.5 x 4.4 x 8.8 In.
318 x 112 x 223 mm		 8.6 lb
3.9 kg		 100V-120V~ 10A 60Hz

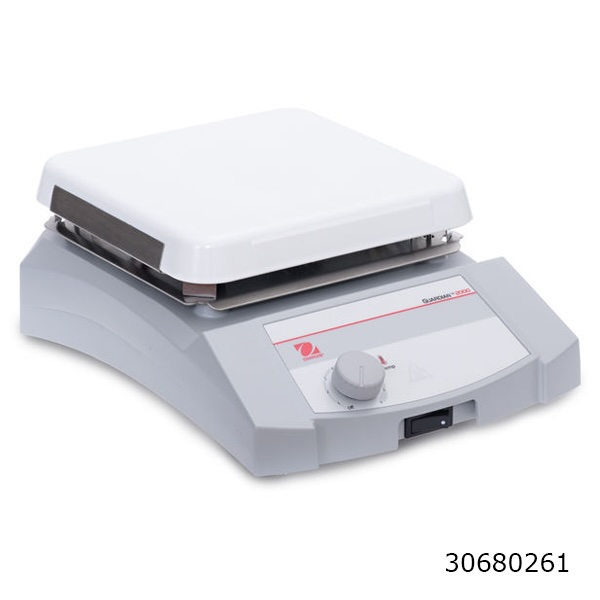

30680261 Heating 1,005 W
30680264 Stirring Resin 35 W 6.2 lb
2.8 kg		 100V-120V~ 2A 60Hz




Guardian™ 2000 Hotplates and Stirrers



Dependable OHAUS Guardian 2000™ Hotplates and Stirrers are ideal for education and other lab environments that require affordable, everyday fast heating and reliable stirring up to 15 L. All three sizes offer simple knob control to easily adjust the heating and stirring functions. The durable housing includes a built-in support rod holder that accepts the optional support rod. Stirring models include PTFE-coated stir bars.

Main Attributes

  • Applications
    • Boiling Liquids, Basic Sample and Solution Preparation, Dissolving Buffers and Reagents, Preparing Media, Concentrating Samples
  • Display
    • Prominent hot top indicator light, green indicator lights when unit is heating and stirring
  • Operation
    • Simple knob control, stirring up to 1600 rpm, temperature up to 500°C (ceramic top) or 380°C (ceramic-coated stainless steel top), power cord (included), stirring models include PTFE-coated stir bar
  • Construction
    • Durable metal housing, PET front panel, control knobs, ON/OFF switch for heater disconnect, built-in support rod holder, easy to clean resin, ceramic or ceramic-coated stainless steel tops
  • Design Features
    • Hot top indicator light to protect user, green indicator lights illuminate when unit is heating and stirring
Gardian 5000 Hotplate Sti
Item#:
ASGRDN5000HS

Hotplate Stirrer
Item#:
ASHOTPLATE2

SKU Number Plate size Spinning Capacity Speed Temp Range Type Price Quantity Add to Cart
30680257 5.3 In. 15 L 200 - 1600 rpm 50 C to 380 C Hotplate Stirrer
444.00
Each
30680260 5.3 In. 15 L N/A 50 C to 380 C Hotplate
319.00
Each
30680263 5.3 In. 15 L 200 - 1600 rpm N/A Stirrer
324.00
Each
30680259 4 x 4 In. 15 L 200 - 1600 rpm 70 C to 500 C Hotplate Stirrer
444.00
Each
30680262 4 x 4 In. 15 L N/A 70 C to 500 C Hotplate
285.00
Each
30680265 4 x 4 In. 15 L 200 - 1600 rpm N/A Stirrer
300.00
Each
30680258 7 x 7 In. 15 L 200 - 1600 rpm 70 C to 500 C Hotplate Stirrer
484.00
Each
30680261 7 x 7 In. 15 L N/A 70 C to 500 C Hotplate
319.00
Each
30680264 7 x 7 In. 15 L 200 - 1600 rpm N/A Stirrer
324.00
Each
Guardian 2000 Hotplate St
Guardian™ 2000 Hotplates and Stirrers
Special Order
Quantity:
