Digital Dry Baths

Item #: ASDIGDRYBATH
Shaking Water Bath

Shaking Water Baths


Operating features

  • +5°C above room temperature
  • Microprocess PID control / automatic tuning / calibration
  • Digital timer for delayed ON/OFF: 1 min to 99 hr 59 min
  • Protection against over-temperature
  • Digital LED display (0.1°C/ 1 rpm resolution)
  • Splash-proof keypad
  • Warranty: 18 months standard; 6 additional months upon receipt of warranty card


Constructional features

  • Separate control keys for shaker mechanism allowing the unit also to be used as a constant temperature bath
  • Minimal shock to the samples thanks to the shaker's gentle start feature
  • Multiple LED displays for setting various values
  • Isolated design of agitator, heater, and sensor by a baffle plate to minimize the turbulence in the bath fluid and also to protect users and samples against direct contact
  • Removable shaking carriage designed for external assembly avoiding direct contact with the bath fluid
  • Minimization of the liquid loss and dripping of the bath liquid into the samples thanks to the included gable cover
  • Included SUS 304 spring wire rack with double-two-tier providing various ways of glassware settings



Specifications

    Model

    BS-06

    BS-11

    BS-21

    BS-31

    Bath Volume

    17 L
    0.6 Cu Ft

    25 L
    0.9 Cu Ft

    37 L
    1.3 Cu Ft

    55 L
    1.9 Cu Ft

    Working Temperature Range

    Ambient +5°C to 100°C | Ambient +9°F to 212°F

    Temperature Stability*

    ± 0.2°C | ± 0.36°F

    Shaking System

    Motion /
    Speed Range

    Reciprocating | 20 to 180 RPM

    Reciprocating Stroke Length

    25, 30, 35 mm | 1.0, 1.2, 1.4 in. Available - Standard 30 / 12

    Dimensions

    Bath
    Opening / Depth
    (W x L, D)

    109 x 243, 235 mm
     4.3 x 9.6, 9.3
    in.

    229 x 243, 235
    mm
    9.0 x 9.6, 9.3
    in.

    389 x 243, 235 mm
    15.3 x 9.6, 9.3
    in.

    670 x 350, 235
    mm
    26.4 x 13.8, 9.3
    in.

    Overall
    (W x L x H)

    430 x 440 x 355 mm
    16.9 x 17.3 x 14
    in.

    550 x 440 x 355
    mm
    21.7 x 17.3 x 14
    in.

    710 x 440 x 355
    mm
    28 x 17.3 x 14.3
    in.

    860 x 490 x 355
    mm
    33.9x19.3x14.0
    in.

    Net Weight

    26 kg
    57 lbs

    30 kg
    66 lbs

    35 kg
    77 lbs

    42 kg
    93 lbs

    Round Flask Maximum Mounting Amount in Spring Wire Rack

    50 mL

    5

    16

    22

    38

    100 mL

    3

    9

    15

    22

    250 mL

    2

    5

    8

    14

    500 mL

    2

    4

    6

    8

    1 L

    -

    2

    3

    6

    2 L

    -

    1

    2

    3

    Maximum Mountable Flask Clamps w/ Universal Platform

    50 mL

    9

    12

    20

    32

    100 mL

    3

    9

    15

    24

    250 mL

    2

    4

    8

    12

    300 mL

    2

    4

    8

    12

    500 mL

    2

    4

    6

    12

    1 L

    1

    2

    4

    6

    2 L**

    -

    1

    2

    3

    2.8 L**

    -

    1

    1

    2

    Electrical Requirements (230V,60Hz)***

    8.9A

    8.9A

    Cat. No.

    AAH44211K

    AAH44311K

    Electrical Requirements
    (230 V, 50 Hz)***

    8.9 A

    8.9 A

    Cat. No.

    AAH44212K

    AAH44312K

    Electrical Requirements
    (120 V, 60 Hz)

    7.1 A

    8.8 A

    Cat. No.

    AAH44063U

    AAH44113U

    * Technical data (according to DIN 12876)
    ** 2 and 2.8 L flasks must by opening the bath cover
    *** BS-21,31 are provided ONLY for 230 voltage


    Ordering Information


    AAH44063U

    BS-06 Shaking Water Bath with Spring Wire Rack, 17 L / 0.6 Cu Ft, 120 V

    AAH44113U

    BS-11 Shaking Water Bath with Spring Wire Rack, 25 L / 0.9 Cu Ft, 120 V

    AAH44212K

    BS-21 Shaking Water Bath with Spring Wire Rack, 37 L / 1.3 Cu Ft., 230 V/50 Hz

    AAH44211K

    BS-21 Shaking Water Bath with Spring Wire Rack, 37 L / 1.3 Cu Ft, 230 V/60 Hz

    AAH44312K

    BS-31 Shaking Water Bath with Spring Wire Rack, 55.52 L / 1.961 Cu Ft, 230 V/50 Hz

    AAH44311K

    BS-31 Shaking Water Bath with Spring Wire Rack, 55.52 L / 1.961 Cu Ft, 230 V/60 Hz

    AAA44521

    Universal Platform for BS-06 Shaking Water Bath

    AAA44522

    Universal Platform for BS-11 Shaking Water Bath

    AAA44523

    Universal Platform for BS-21 Shaking Water Bath

    AAA44524

    Universal Platform for BS-31 Shaking Water Bath

PNH2OBATH

Style
Shaking
SKU Number Type Block Chamber Dims Capacity Operating Temp Hole Dia/Depth Hole Bottom Price Quantity Add to Cart
DB-01A Single Block Digital Dry Bath 4.6 x 3.1 x 1.2 in 1 Block (Varies) Ambient + 5 - 120ºC N/A N/A
470.00
Each

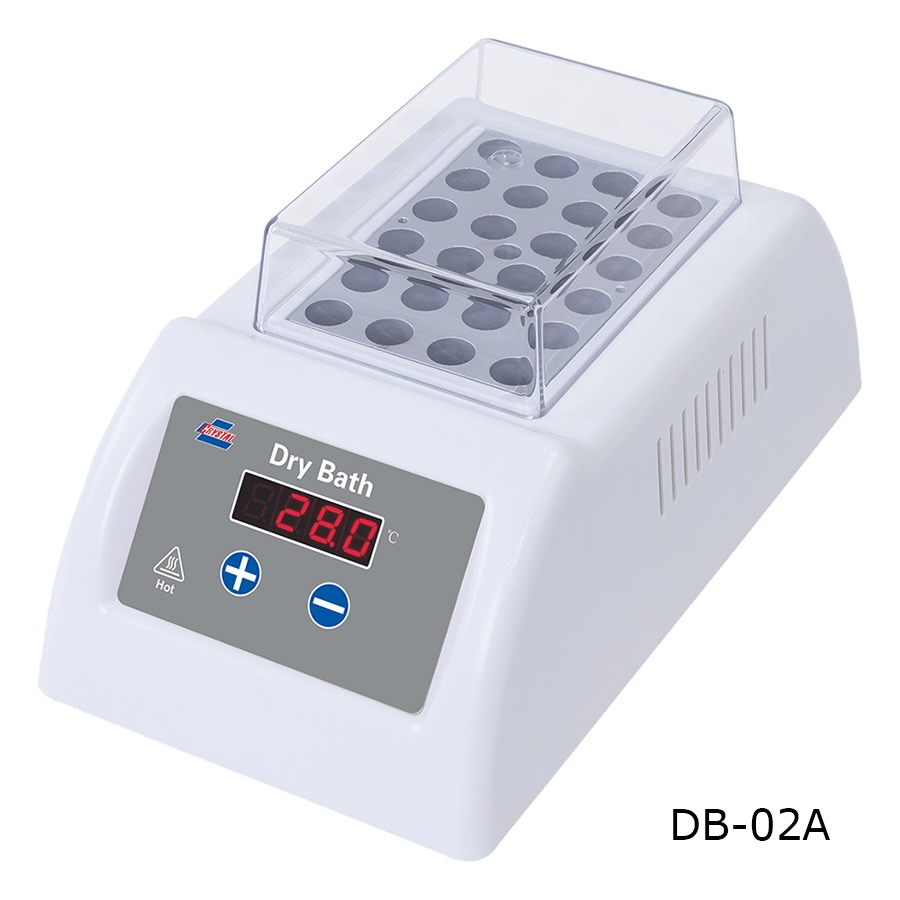

DB-02A Single Block Dry Bath 4.6 x 3.1 x 1.2 in 1 Block (Varies) Ambient + 5 - 120ºC N/A N/A
415.00
Each

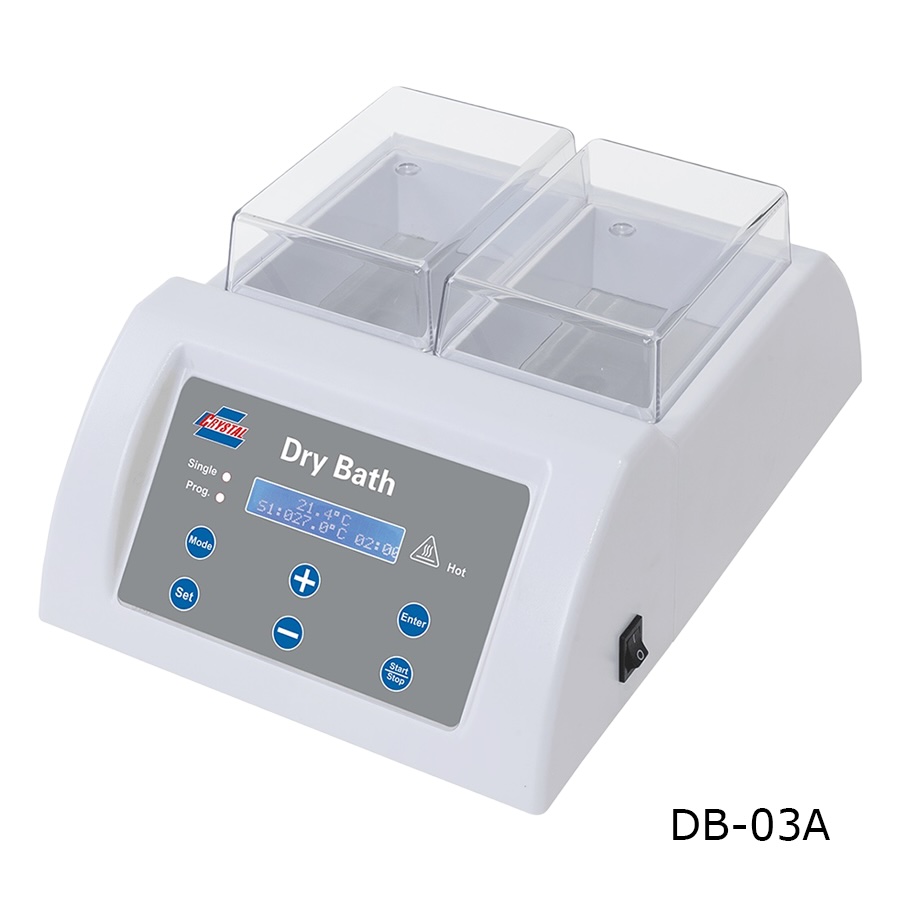

DB-03A Dual Block Digital Dry Bath 4.6 x 3.1 x 1.6 in 2 Blocks (Varies) Ambient + 5 - 120ºC N/A N/A
565.00
Each
DBA01 24 x 5 mL Block 117.8 x 77.8 x 31.5 mm | 4.64 x 3.06 x 1.24 in. 5 mL Round Bottom Tubes N/A 13.5 mm | 0.53 in. Round
72.00
Each
DBA01-H 24 x 5 mL Tall Block 117.8 x 77.8 x 40 mm | 4.64 x 3.06 x 1.57 in. 5 mL Round Bottom Tubes N/A 13.5 mm | 0.53 in. Round
72.00
Each
DBA02 12 x 1.5 mL Half Block 58.9 x 77.8 x 50 mm | 2.32 x 3.06 x 1.97 in. 1.5 mL Microtubes N/A 10.8 mm | 0.43 in. Conical
51.00
Each
DBA03 10 x 10/15 mL Half Block 58.9 x 77.8 x 50 mm | 2.32 x 3.06 x 1.97 in. 10/15 mL Round Bottom Tubes N/A 16 mm | 0.63 in. Round
51.00
Each
DBA04 96 x 0.2 mL Block 117.8 x 77.8 x 40 mm | 4.64 x 3.06 x 1.57 in. 0.2 mL PCR or Microtubes N/A 6.4 mm | 0.25 in. Conical
102.00
Each
DBA06 24 x 1.5 mL Block 117.8 x 77.8 x 40 mm | 4.64 x 3.06 x 1.57 in. 1.5 mL Microtubes N/A 11 mm | 0.43 in. Conical
72.00
Each
DBA07 48 x 0.2 mL Half Block 58.9 x 77.8 x 40 mm | 2.32 x 3.06 x 1.57 in. 10.2 mL Trube o B PCR Strips N/A 6.1 mm | 0.24 in. Conical
89.00
Each
DBA08 24 x 1.5/2 mL Block 117.8 x 77.8 x 40 mm | 4.64 x 3.06 x 1.57 in. 1.5/2.0 mL Microtubes N/A 11.5 mm | 0.45 in. Conical
72.00
Each
DBA09 30 x 0.5 mL Block 117.8 x 77.8 x 40 mm | 4.64 x 3.06 x 1.57 in. 0.5 mL PCR Tubes N/A 7.9 mm | 0.31 in. Conical
72.00
Each
DBA10 Flat Block 117.8 x 77.8 x 40 mm | 4.64 x 3.06 x 1.57 in. Suitable for 96-well/384-well Microplates/Slides N/A N/A N/A
39.00
Each
DBA11 24 x 1.5 mL Block 117.8 x 77.8 x 40 mm | 4.64 x 3.06 x 1.57 in. 1.5 mL V-Shaped Tubes N/A 11 mm | 0.43 in. V-Shape
72.00
Each
DBA12 96 x 0.1/0.2 mL PCR Block 117.8 x 77.8 x 50 mm | 4.64 x 3.06 x 1.97 in. 0.1/0.2 mL PCR Tubes N/A 6.1 mm | 0.24 in. Cone-Shape
106.00
Each
DBA16 12 x 15 mL Block 117.8 x 77.8 x 50 mm | 4.64 x 3.06 x 1.97 in. 15 mL Conical Bottom Centrifuge Tubes N/A 16 mm | 0.63 in. Conical
89.00
Each
DBA17 6 x 50 mL Block 117.8 x 77.8 x 50 mm | 4.64 x 3.06 x 1.97 in. 50 mL Conical Bottom Centrifuge Tubes N/A 29 mm | 1.14 in. Conical
42.00
Each
DBA23 30 x 06 mm Tube Block 117.8 x 77.8 x 50 mm | 4.64 x 3.06 x 1.97 in. 06 mm Standard Round Bottom Test Tubes N/A 6.5 mm | 0.26 in. Round
78.00
Each
DBA24 20 x 010 mm Tube Block 117.8 x 77.8 x 50 mm | 4.64 x 3.06 x 1.97 in. 010 mm Standard Round Bottom Test Tubes N/A 10.7 mm | 0.42 in. Round
78.00
Each
DBA25 20 x 013 mm Tube Block 117.8 x 77.8 x 50 mm | 4.64 x 3.06 x 1.97 in. 012/13 mm Standard Round Bottom Test Tubes N/A 13.9 mm | 0.55 in. Round
78.00
Each
DB-01A
Digital Dry Baths
Special Order
Quantity:
