Home  >  Tubes/Racks  >  Cryogenic Storage  >  Racks and Boxes  >  Storage Racks  > CryoCommand™ for Replacing Ice Baths

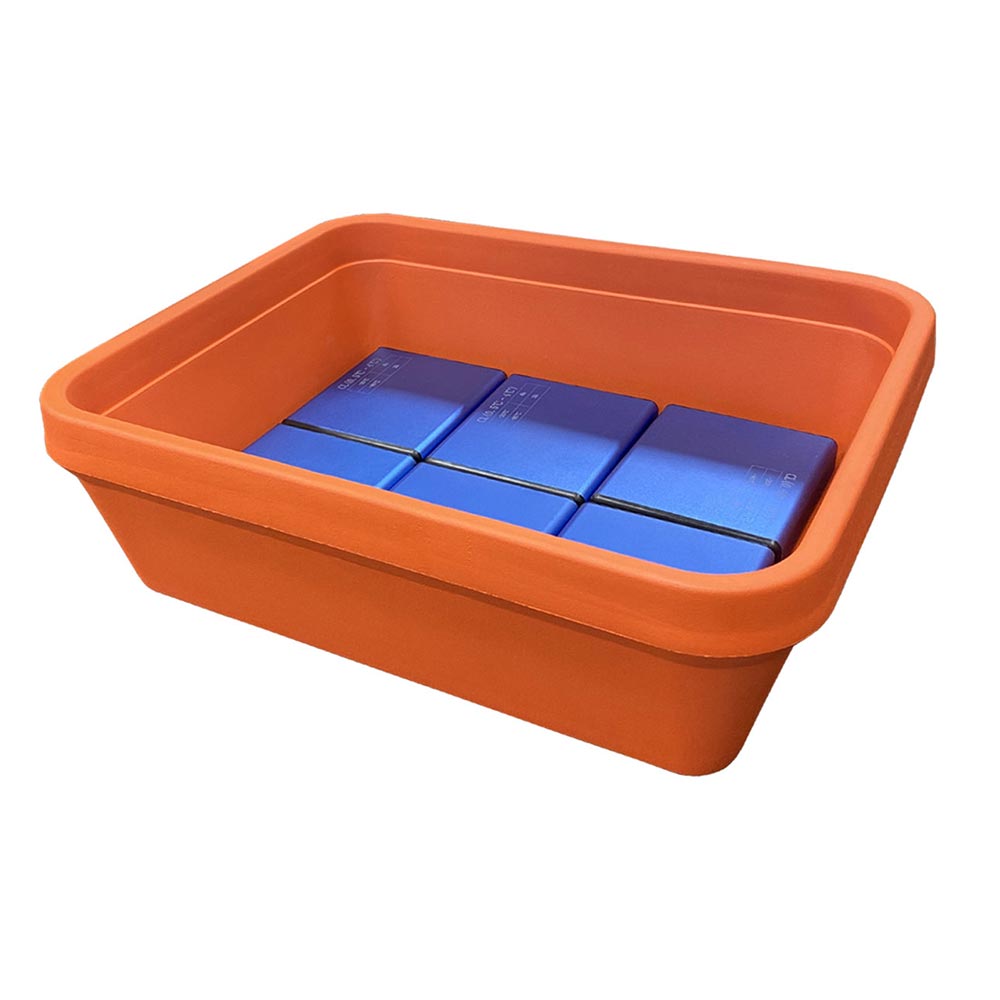

CryoCommand™ for Replacing Ice Baths

Item #: ASCRYOCOMM

Tech Parameters

Temperature Range

Cooling Sources

Cryo-Core Preparation

Tube Module Preparation

Insulation Time (open cover)

0.5°C to 4°C

Cryo-Core CL

-20°C freezer for 4 hours, then 10 minutes at room temp, then use

Precool tube module at 0.5°C to 4°C for 30 min.

4h

0.5°C to 4°C

-20°C freezer for more than 4 hours, then use directly

Use tube module at room temperature

0.5°C to 4°C

-80°C freezer for more than 2 hours, then use directly

-18°C to -4°C

Cryo-Core CF

-20°C freezer for more than 6 hours

Precool tube module at ≤ -20°C for 30 min.

3h

-18°C to -4°C

-80°C freezer for more than 3 hours

-78°C to -30°C

Dry Ice

Add 200g of dry ice into the bottom of the FreezeBox

Use tube module at room temperature

4h





Cryo-Cores

Cryo-Core

Product Name

Temp. Range

Freezer Temp.

Freeze Time

Dimensions

CL

Cooling Core

0.5°C to 4°C

-20°C

4h+

105 x 100 x 26 mm

-80°C

2h+

CF

Freeze Core

-18°C to -4°C

-20°C

6h+

-80°C

3h+





Tube Modules

Tube Module

Part Number

Specifications

Dimensions

2 mL Tubes

CM01

30 x 2 mL Cryo Tube

119 x 101 x 38 mm

1.5 mL Tubes

CM02

48 x 1.5 mL Cryo Tube

5 mL Tubes

CM03

30 x 5 mL Cryo Tube

PCR Tubes

CM04

96 x PCR Module



Deep Well Plates


Nest Deep Well Plates - 24



Nest high-quality deep well plates are ideal for microbiology applications, including sample preparation, bacterial culture growth, and long-term storage.



Available in two configurations: 10 mL 24 Well and 16 mL 24 Well.

  • High chemical stability
  • Temperature range: -80°C to 120°C
  • Autoclavable
  • Compatible with multi-channel pipette and automatic equipment
  • Optimized bottom design to minimize residual volume
  • Clear alphanumeric codes for easy identification
  • Conform to SBS/ ANSI
  • Stackable, reliable tight sealing
  • Non-pyrogenic, DNase/RNase free
  • Both E-beam sterilized, and non-sterilized deep well plates are available

Material

USP VI Polypropylene material



10 mL, 24 Well, Rounded Bottom

  • Designed for growing bacterial cultures and sample purification using magnetic beads (manual and automated systems)
  • Unique square top with round bottom design optimizes mixing and enhances magnetic bead recovery
  • Separated round well bottoms are compatible with post or ring-style magnetic plates
  • Automation-compatible footprint and rigid construction for use with most robotic grippers
  • Raised rims around each well ensure easy and secure sealing with adhesive films, silicone mats, or heat-sealing films

16 mL, 24 Well, V-Bottom

  • Perfect for aliquoting and sample preparation in various biochemical and molecular biology workflows.
  • Autoclavable and RNase/DNase free
  • Safe for use and storage at temperatures as low as -80°C
  • Centrifuge-safe up to 4000 g
  • Stackable for easy storage and handling

Item#:
ASDWPLATESNEST48

SKU Number Capacity (Vol) Color Type of Rack Qty Price Quantity Add to Cart
CM-01 Block 30 x 2 mL Black Block 30 x 2 mL 1/ea
163.77
Each
CM-02 Block 48 x 1.5 mL Black Block 48 x 1.5 mL 1/ea
163.77
Each
CM-03 Block 30 x 5 mL Black Block 30 x 5 mL 1/ea
163.77
Each
CM-04 Block 96 x PCR Black Block 96 x PCR 1/ea
185.61
Each
PF6 9 L Tub + 6 CF Cryo-Cores Orange & Green Temp Range -18 to 4°C 1/ea
597.49
Each
PL6 9 L Tub + 6 CL Cryo-Cores Orange & Blue Temp Range 0.5 to 4°C 1/ea
655.08
Each
Cryo Command
CryoCommand™ for Replacing Ice Baths
Special Order
Quantity:
