Plate, 96 Round Well V-Bottom 14.60 mm Height, 300 uL

Discontinued, Contact us for more options!
Item #: AS96RVB1460H300U
Plate, 96 Round Well V


These items have been discontinued.

Check out ILP Round Well, V-Bottom MicroPlates - 96
for more options.

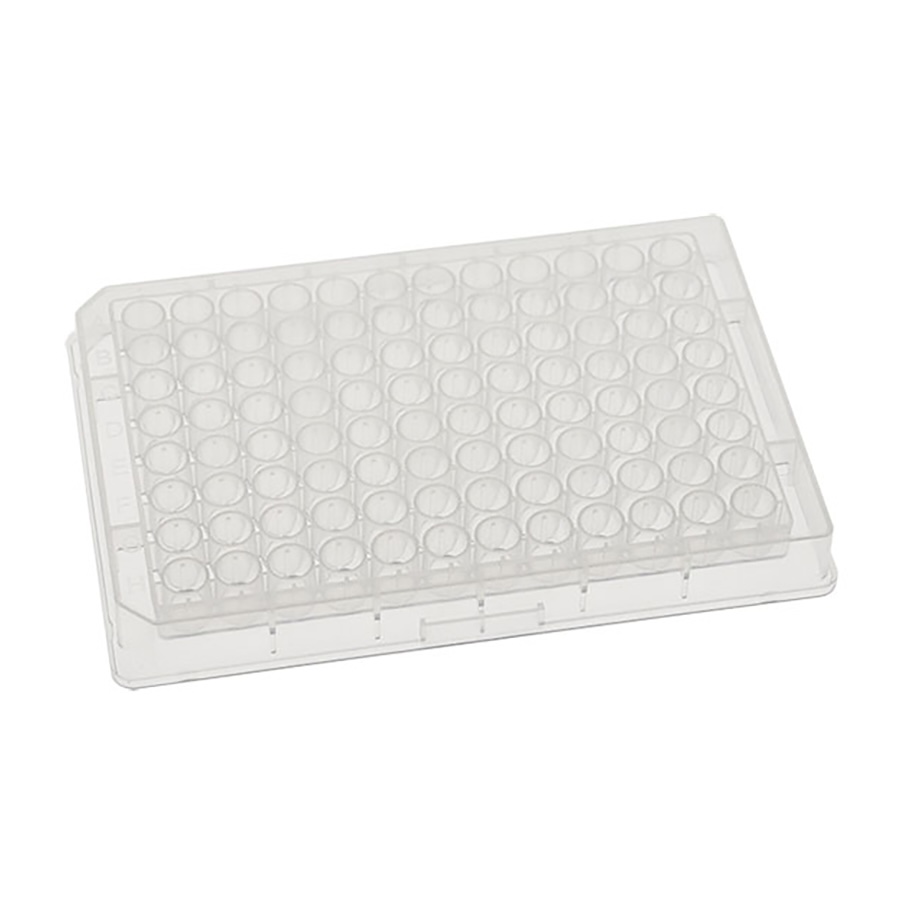

Plate, 96 Round Well V-Bottom 14.60 mm Height, 300 uL

The 96 round well V-bottom design minimizes reagent usage and provides the lowest residual volumes after pipetting (<0.1 l); designed for colorimetric assays and compound storage/ libraries, especially with automated systems.
  • Consistent automated handling – ultra-flat surfaces, sidewall gripper lugs, and rigidity
  • Durable – withstands repeated freeze/thaw cycles down to -20C without adversely affecting dimensional integrity
  • Raised rims on each well help protect from cross contamination and make for enhanced sealing with adhesive films, silicone mats, or heat sealing films.
  • Manufactured of exceptionally clear and inert virgin polypropylene (no mold release agents or regrind)
  • Certified RNase, DNase, DNA, and Pyrogen Free.

Specifications

Product TypeMulti Well Plates
Number of Wells96
Number of Plugs96
Plug ShapeConical – V
Well Shape TopRound
Well Shape BottomConical – V
MaterialUSP Class VI Polypropylene
Adhesive MaterialNone
ColorNatural
AlphanumericMolded in
ComplianceANSI/SBS 6-2012
Surface TreatmentNone
CertifiedDNase-/RNase-/Pyrogen-Free
Overall Height14.60 mm
Well Depth10.90 mm
Overall Length127.00 mm
Adhesive ThicknessNone
Width85.00 mm
Top Width81.10 mm
Well Diameter Bottom6.58 mm
Well Diameter Top6.96 mm
Top Length122.90 mm
Well Bottom To Deck2.25 mm
Max Vol.360 uL
Working Vol.300 uL
Vol. w/ Mat Lid235 uL
Plug Depth10.90 mm
Plug Diameter6.58 mm
Autoclavable121C at 15 psi, 15 min.
Max RCF4,000 RCF
Temp. Range-80 to 120ºC
Quantity10 plt/pk, 10 pks/cs
Case Dimensions6 x 10.75 x 17.75 In. | 152.4 x 273.05 x 450.85 mm
Case Weight9.5 lb | 4.31 kg
dp33vr-9
Item#:
AS96RNDVBOTTOMPL

dp04ur-9-n
Item#:
AS96RNDMICRPLAT

SKU Number Description Volume Color Sterility Qty Price Quantity Add to Cart
MID-36VR-9-N 96 Round Well, V Bottom 335 uL Natural Non-Sterile [PP] 10/pk, 10 pks/cs
325.00
Each
  Item is no longer available.
MID-36VR-9-NS 96 Round Well, V Bottom 335 uL Natural Sterile [PP] 10/pk, 10 pks/cs
380.00
Each
  Item is no longer available.
