ILP Deep Well Round Well, U-Bottom Glass Coated 44 mm Plates - 96

Item #: AS96DPWELRWUBBTM42GL
dp1m-rd-96-gc


ILP Deep Well Round Well, U-Bottom Glass Coated 44 mm Plates - 96

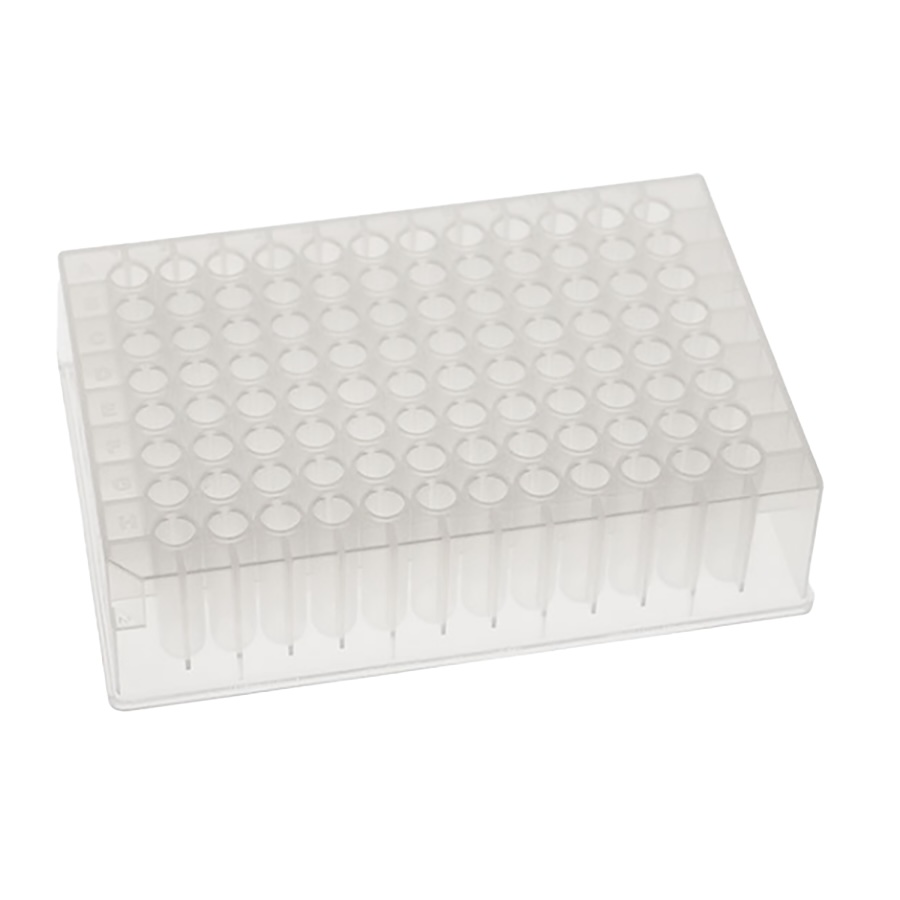

This round deep-well U-bottom plate combines 1.2 mL working volume with automation friendly design. Sturdy and warp-resistant design with ultra-flat surfaces and rigid construction, this plate is ideal for high throughput screening, sample collection, compound storage, screening, and combinatorial chemistry applications. It is compatible with stackers, grippers, heater/cooler blocks, and other instruments that comply with the ANSI/SLAS 2004-1 (SBS) footprint.

Raised rims on each well help protect from cross-contamination, minimize sample loss during storage, and make for enhanced sealing with adhesive films, silicone mats, or heat sealing films. Manufactured of inert, chemically resistant, and exceptionally clear virgin polypropylene.
Made from medical grade virgin polypropylene (no mold release agents or regrind); certified RNase, DNase, DNA, and Pyrogen Free.

  • Uniform wall thickness
  • Easy well identification with molded-in alpha-numeric position markings
  • Raised rims for easy and secure sealing with adhesive films, silicone mats, or heat-sealing films
  • Raised rims help protect from cross contamination

Specifications

Number of Wells96
Number of Plugs96
Plug ShapeRound – U
Well Shape TopRound
Well Shape BottomRound – U
MaterialUSP Class VI Polypropylene
Adhesive MaterialSiO2; 0.0079 Mil
ColorNatural
AlphanumericMolded in
ComplianceANSI/SBS 6-2012
Surface TreatmentSiO2
CertifiedDNase-/RNase-/Pyrogen-Free
Overall Height1.67 In. | 42.50 mm
Well Depth1.54 In. | 39.05 mm
Overall Length5.03 In. | 127.78 mm
Adhesive ThicknessSiO2; 0.0079 Mil
Width3.37 In. | 85.48 mm
Top Width3.24 In. | 82.20 mm
Well Diameter Bottom0.25 In. | 6.24 mm
Well Diameter Top0.28 In. | 7.00 mm
Top Length4.90 In. | 124.48 mm
Well Bottom To Deck0.14 In. | 3.45 mm
Max Vol.1.3 mL
Working Vol.1.2 mL
Vol. With Mat Lid1.1 mL
Plug Depth1.54 In. | 39.05 mm
Plug Diameter0.25 In. | 6.24 mm
Autoclavable121ºC at 15 psi, 15 min. (249.8ºF)
Max RCF4,000 RCF
Max Temp.120ºC (248ºF)
Min Temp.-80ºC (-112ºF)

MID-DP1M-RD-96-N
Item#:
AS96DPWELRWUBBTM42MM

dp10ur-9-gc10
Item#:
AS96DPWELRWUBBTM33GL

SKU Number Description Volume Color Sterility Qty Price Quantity Add to Cart
MID-DP1M-RD-96-GC10 96 Round Well, U Bottom, Glass Coated 2.0 mL Natural, Glass Coated Non-Sterile, Indiv Wrap [PP] 1/pk, 10 pks/cs
759.00
Each
MID-DP1M-RD-96-GC100 96 Round Well, U Bottom, Glass Coated 2.0 mL Natural, Glass Coated Non-Sterile, Indiv Wrap [PP] 1/pk, 100 pks/cs
6400.00
Each
