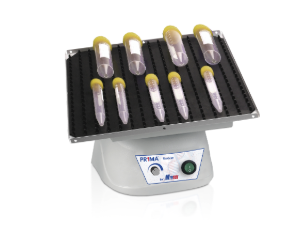

PR1MA™ 3D Nutating Shaker with Variable Speed

• Adjustable speed & tilt for a wide range of applications
• Large 12 x 12 in. work surface
• Insta-TILT™ technology for instant adjustment to the tilt angle
• Dual platform accessory doubles work surface
• Cold room and incubator safe

The PR1MA™ 3D is designed to provide the precise speeds and tilt angles required for a broad range of molecular and biological mixing applications. The user can adjust both parameters to match the vessel size and the volume of liquid being mixed, yielding optimum results.
This model includes both flat and dimpled (autoclavable) mats for mixing a wide variety of tubes and other vessels.

Stacking platforms can be purchased as accessories, effectively doubling the usable surface area of each model. PR1MA™ 3D features a maintenance-free, brushless motor, capable of loads up to 4.4 lbs, and is safe for use in cold rooms and incubators.

Specifications

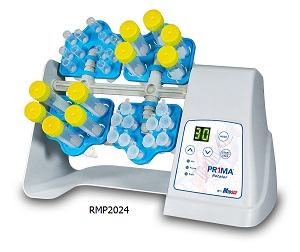

PR1MA™ Roto-Mini Series

• Includes tube holders for common tube sizes, 11 x 1.5 / 0.2 mL (pack of 2), 5 x 10-15 mL (pack of 2), 5 x 5-7 mL (pack of 2), 6 x 50 mL (pack of 1)
• Plus model available with variable speed control and advanced shaking / mixing modes: Mix (Oscillating), Pause, Rock

The new PR1MA™ Roto-Mini Series of rotating mixers provide a wide range of mixing capabilities. Suitable for an array of laboratory applications including resuspension, protein binding, nucleic acid purification, etc. the mixers include interchangeable tube holders for accommodating all common tube sizes from 0.5 mL to 50 mL. The motion can be adjusted from vertical (end over end) mixing, to horizontal (rolling or hybridization style) mixing.

The Roto-Mini rotator is also available in a "Plus" configuration, providing the following additional features:

Specifications

Item #s RFP2020 and RMP2024 are made in the USA! Click here for more made in America products!



Benchmark™ Roto-Therm™ Incubated Rotators

• Rotated mixing with temperature control
• Includes tube holders for common tube sizes
• Available with variable speed control and advanced shaking / mixing modes: Mix (Oscillating), Pause, Rock (Plus Model)

The Roto-Therm™ series of incubated rotating mixers provide a wide range of mixing capabilities. Suitable for an array of laboratory applications including resuspension, protein binding, nucleic acid purification, histochemistry, hybridization, etc. The mixers include interchangeable tube holders for accommodating all common tube sizes from 0.5 mL to 50 mL. The motion can be adjusted from vertical (end over end) mixing, to horizontal (rolling or hybridization style) mixing.

For applications requiring temperature control, the Roto-Therm™ series can be digitally programmed to maintain chamber temperatures of ambient 5°C to 60°C and include an “in-lab” calibration function for ensuring accurate temperature control.

The Roto-Therm™ is also available in a “Plus” configuration, providing the following additional features:

• Variable speed: 5 to 70 rpm
• “Mix” function: Rotating in combination w/ oscillations (increased mixing)
• “Pause” function: Rotating with intermittent “stops” during rotation
• “Rock” function: Back and forth, gentle rocking motion (see-saw)

The Plus model also offers an additional rocking platform (4.5 x 3 in.), as well as a 96 x 0.2 mL tube/strip/plate holder for mixing PCR vessels in the “Mix” (oscillating) mode.

Specifications


Model	H2020	RTP2024
Temperature	Ambient 5° to 60°C
Speed	24 rpm	5 to 70 rpm
Mixing Modes	N/A	Mix, Pause, Rock
Dimensions	11.6 x 8.5 x 9 In. | 29.5 x 21.6 x 22.9 cm
Weight	9 lbs. | 4 kg.	10 lbs. | 4.5 kg.
Electrical	115 or 230 V, 50-60 Hz, 0.5 A	Universal Voltage 100 to 240 V, 50-60 Hz, 0.5 A
Warranty	2-Year



Item #s H2020 and RTP2024 are proudly made in the USA! Click here for more made in America products!


• Compact design
• Wide selection of motions
• Noiseless operation
• Cold room compatible
• Dual format rotisseries
• Three easily interchangeable rotisseries
• Holds various size tubes:
• 36 x 1.5 / 2.0ml
• 10 x 15ml & 12 x 5ml
• 6 x 50ml
• 2 x 96 well plates

Speed:

115 volt model: 24 rpm
230 Volt model: 20 rpm

Simple, yet versatile, the Mini LabRoller Rotator is designed for mixing samples in both a horizontal and vertical plane. The unit accepts a broad assortment of tube sizes as well as micro plates. Safe for cold room or incubator use, this mixer is ideal for a wide range of applications in areas such as biochemistry, molecular biology, clinical testing and histochemistry.

Compact and sleek design. A small footprint and efficient housing design conserve valuable bench space and make the Mini LabRoller Rotator suitable for any size laboratory. It has an ambient operating range of 4° to 40°C and will easily fit into most incubators. Lightweight and portable, the unit is easily moved from the bench to a biological or chemical hood. Simple construction allows for easy cleaning and decontamination.

Wide range of motion The Mini LabRoller Rotator is uniquely designed so that the level of agitation can be adjusted from gentle rolling, through two levels of tumbling, to forceful end over end mixing simply by changing the rotisserie position. When a rotisserie is inserted horizontally (tubes held vertically), an end over end motion is produced. The unit can then be used for simple rotating, or rested on either end to create a tumbling motion.

Interchangeable rotisseries hold numerous tube sizes The Mini LabRoller Rotator is supplied with a rotisserie for 36 x 1.5 or 2.0 ml tubes. Two additional rotisseries are available separately. The first accommodates ten conical 15 ml or other tubes with a 15-17 mm diameter as well as twelve tubes with a 12-13 mm diameter. The second holds six 50 ml conical tubes. Microplates can be used on any of the three rotisseries.

Benchmark™ Rotating Mixer

• Adjustable speed and tilt angle
• Reversing mode, for more intense mixing
• Cold room and incubator safe
• Includes three rotisseries for all common tube sizes

The Rotating Mixer provides gentle to vigorous mixing of laboratory samples up to 50 mL. With adjustable speed control and tilt angle, the Rotating Mixer is ideal for a variety of applications, from mixing blood samples to the preparation of homogenous dispersions.

Three rotisserie tube holders are included for mixing all common laboratory sample tubes and each individual tube holder is rubber coated to provide a secure grip, preventing any "wobble" or loosening during mixing at high speeds.

For more intense mixing, a unique reversing mode is available. In reversing mode, the mixer rotates for up to 360° then stops and rotates in the reverse direction. This back-and-forth motion occurs repeatedly until the set time has expired.

Specifications


Speed	Variable, 1 to 40 rpm
Tilt Angle	Variable, 0° to 90°
Capacity	12 x 50 mL, 20 x 15 mL or 48 x 2 mL
Timer	1 second to 9 hours, or continuous
Temperature Range	+4° to +65°C
Dimension	8.25 x 10.5 x 12.5 in 21 x 27 x 32 cm
Weight	7 lbs | 3.2 kg
Electrical	100V to 240V, 50-60 Hz | 25 W
Warranty	2 years

Benchmark™ TubeRoller Rocking Rollers

• Gentle rolling motion
• Smooth 5° tilting notion
• Accepts tubes and bottles from 8mm to 200 mm

Benchmark™ TubeRollers are designed for the gentle, thorough mixing of a variety of containers, including Vacutainers™, bottles, test tubes, centrifuge tubes, and roller bottles. Both models feature variable speed control (2-80 rpm), suitable for the broadest range of mixing applications.


Specifications

Typical Tube Capacities


Vessel	TR3005	TR3010
12 x 75 mm Tubes	12	26
16 x 100 mm Tubes	8	18
16 x 125 mm Tubes	8	18
15 mL Screw Cap Tubes	8	18
50 mL Screw Cap Tubes	8	18
850 cm2 Roller Bottles	1	2


Benchmark™ Mini Nutating Rocker

• Includes dimpled mat; ideal for mixing in blood & centrifuge tubes
• Tri-directional motion for thorough, uniform mixing
• Cold room and incubator safe

The Mini Rocker is a multi-functional shaker that provides a three-dimensional nutating motion for thorough foam-free mixing in tubes as well as a variety of flat vessels.  The model comes standard with an autoclavable dimpled mat and optional flat mats are available for mixing with other vessel types. This mixer features maintenance-free, brushless motors and is capable of loads up to 2 kg, and is safe for use in cold rooms or incubators.


The Benchmark™ Mini Nutating Rocker comes with a flat cord and an 8 x 6-inch platform with dimpled and flat mats. The rocker is designed to fit inside Digital Mini Incubators (H2200-H/H220-HC)

Specifications

The RotoBot and RotoBot Mini each include an assortment of vertical tube holders. The Mini model is supplied with holders for 12 x 1.5 mL tubes, 2 x 15 mL & 2 x 50 mL tubes; the standard model, 30 x 1.5 / 2.0 mL, 8 x 15 mL & 2 x 50 mL tubes. For higher capacity applications, more of these holders can be purchased as accessories. In addition, horizontal holders are available for applications such as Western blotting and hybridization. The unique, sliding attachment allows for quick and easy changing of tube holders.

For rocking applications, a platform with a non-slip rubber mat is available. Once attached, simply select the "PP" mode to turn the rotator into a platform rocker.

• Advanced programming with a wide variety of rotational modes
• Set for full 360° rotation, or interrupt rotations with pausing & mixing intervals
• Slow rotating to vigorous mixing
• Cold room and incubator safe
• Accepts common tubes from 1.5 to 50 mL
• Optional rocking platform

Specifications


	RB4040	RB4045
Speed Range	1 to 80 rpm
Timer	1 sec. to 99 hours 59 min. / Continuous
Capacity	6 x 50 mL, 10 x 15 mL or 60 x 1.5 mL	12 x 50 mL, 22 x 15 mL or 84 x 1.5 mL
Dimensions (D x W x H)	11.4 x 5.4 x 7.8 In. 2 x 13.7 x 19.9 cm	16.1 x 5.4 x 7.8 In. 41 x 13.7 x 19.9 cm
Temp. Range	2° to  70°C
Weight	4 lbs. | 1.8 kg.
Electrical	100 to 240 V, 50-60 Hz, 3A
Warranty	2 years

The Belly Button is a compact version of the Belly Dancer Shaker. At 8" X 8" X 4 ¾", it is small enough to fit in labs where space is at a premium. The Belly Button can be used for many applications such as:

• CO resistant
• Staining & Destaining Gels
• Northern & Southern Hybridizations
• Western Blotting & Rinsing Membranes
• Cell Culture Incubation
• Retroviral Infection
• Phage Evolution, Amplification of cDNA Libraries
• Mixing of Small Tubes and Blood Samples

Belly Button features include:

• Compact size fits easily into laboratory incubators, ovens & refrigerated units without rearranging shelves or distributing other materials
• Very thin, flat power cord reached external outlets without damaging incubator or refrigerator gaskets
• Platform tilt is continuously adjustable from level to a sharp angle and can be effortlessly adjusted in seconds
• Variable speed control 0 -100 rpm; no cogging at slow speeds; direct drive, no belts or pulleys
• Wide ambient operating range, 0 ° C to 60 ° C , allows the shaker's use in a variety of lab environments, high humidity or dry incubators and refrigerated units
• Lightweight (5 lbs), durable aluminum, brass and stainless steel and ABS plastic construction
• Non-skid platform mat stabilizes loads
• Accessory rubber "finger mat" available for small tubes
• Maximum load: 5 lbs
• Cool running, 12V, DC motor
• 1 Year Warranty

Specifications
