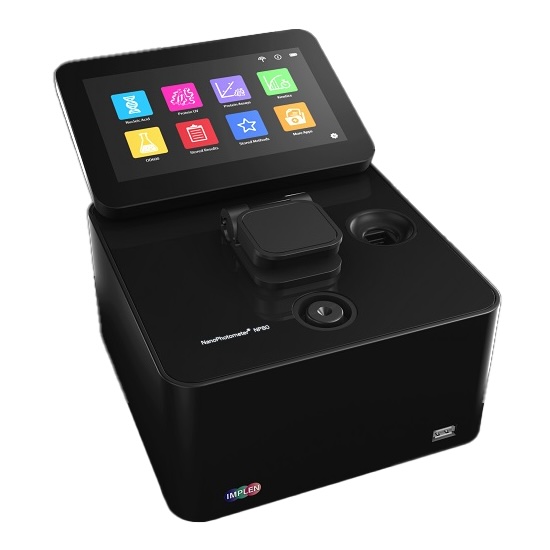

Implen NanoPhotometer® NP80 Spectrometer

• Accurate: Patented Sample Compression Technology™ with guaranteed fixed path lengths allows for unmatched accuracy and precision. Independent from surface tension and free from evaporation. Lifetime accuracy guaranteed.
• Recalibration-free: Sealed optics without path length drift eliminates the need for costly and time-consuming recalibrations. Durable, inert surfaces provide easy-to-clean, scratch-resistant surfaces that do not require reconditioning.
• Easy: NPOS Operating System: intuitive graphical user interfaces (GUI) providing one-step method access, pre-programmed and customizable applications based on the ultimate level of data security.
• Flexible: Control your NanoPhotometer® via Touch Screen / Smart Phone / Tablet / PC.
• Equipped with Wi-Fi, USB A/B, HDMI, and LAN interface connections. Define and store your methods.
• Mobile: Spectroscopy can now be taken anywhere. The optional integrated battery pack provides up to 8 hours of stand-alone battery-powered operation.
• Powerful: Built-in computer with a high-performance Q7 quad core 1 GHz processor and 8 GB of onboard memory provides rapid analysis and easy data storage.
• Fast: Power on and instantly measure without lamp warm-up time. Full scan capability from 200 - 900 nm provides rapid and complete sample analysis in only 3.5 - 6 sec.

Specifications


Item	NP80	N60	N50	C40
Full Spectrum Scan	200 - 900 nm	200 - 900 nm	200 - 650 nm	200 - 900 nm
Detection Range Nanovolume	dsDNA: 1-16,500 ng / uL BSA: 0.03-478 mg / mL	dsDNA: 1-16,500 ng / uL BSA: 0.03-478 mg / mL	dsDNA: 5 -7,500 ng / uL BSA: 0.15-217 mg / mL	N/A
Detection Range Cuvette	dsDNA: 0.1-130 ng / uL BSA: 0.003-3.7 mg / mL	N/A	N/A	dsDNA: 0.1-130 ng / uL BSA: 0.003-3.7 mg / mL
Path-lengths	0.67 and 0.07 mm	0.67 and 0.07 mm	0.67 and 0.07 mm	10 mm
Pre-programming nucleic acid & protein methods	Yes	Yes	Yes	Yes
Measure 260/230 & 260/280 ratios	Yes	Yes	Yes	Yes
LCD Touchscreen	Optional	Optional	Optional	Optional
Customizable Methods	Yes	No	No	Yes
Built-in Vortex	Yes	Yes	No	No
Built-in Battery Pack	Optional	Optional	No	Optional



Implen NanoPhotometer® N120

Microvolume high throughput champion

Fast High Throughput

• Full scan capability range from 200 - 900nm for rapid and complete sample analysis in as little as 1/7 seconds per sample.
• Measure 96 samples up to 126 times faster with 33% less operational steps required compared to microplate readers and other scanning measurement methods.
• The one step Auto Sample Feature saves you hands-on time while giving detailed information for each sample including full high-resolution scan results along with sample purity ratios.

Stand Alone Operation

• The N120 features an integrated computer with an Intel Celeron dual core 2.4 GHz processor and 128 GB of SSD data storage.
• Compact, all-in-one design includes a 7" glove compatible touch display
• Built-in 3hr battery pack saves valuable bench top workspace

Trusted Technology

• For over a decade prestigious biological, chemical and pharmaceutical companies, as well as research organizations around the globe have relied on Implen spectrophotometers. The NanoPhotometer® is the most innovative line of microvolume UV/Vis spectrophotometers - cited by thousands of scientific publications worldwide.

Easy Sample Application

• The N120 features a unique and proprietary 12 Point Technology™ consisting of several positional guides for single and multi-channel pipettes.
• Patented illuminated sample windows and animated sample processing grid endures convenient and error free sample application.

Clean with Confidence

• Smooth quartz glass surfaces provide straightforward cleaning. Feel confident your instrument is clean with integrated warnings that alert users of dirty sample surfaces, fingerprints or lint. A simple swipe with a KimWipe™ makes sample cleaning a breeze.

Accurate

• Patented Sample Compression Technology™ with guaranteed fixed path lengths allows for unmatched accuracy and precision.
• Guaranteed lifetime accuracy.

Consistent Results

• Analyzes up to 12 samples per fun over a wide concentrating range (2 to 8,000 ng/L for dsDNA).
• Black Control™ and Sample Control™ monitor the entire measurement process and highlights reading that are outside of the expected purity range.

Easy

• NPOS Operating System: intuitive graphical user interfaces (GUI) providing one-step method access, pre-programmed and customizable applications based on the ultimate level of data security. Import and export of sample IDs from Excel files is available for fast and automated sample mapping.

Flexible

• Controllable via touchscreen, tablet, or computer.
• Equipped with WiFi, USB A/B, HDMI, and LAN interface connections
• USB flash drive for quick and easy data transfer

Additional Features

• Maintenance Free - no calibration necessary
• Mobile Design - integrated battery, you can now work under laminar flow hood/clean benches or share the device between different lab members or groups
• Sample Control - identifies air bubbles, sample impurities, turbidity, lint residue and potential contaminations
• Optional CFR21 Software - complies with FDA 21 CFR Part 11 requirements
• Universal Linguist - User interface offers selection of languages as well as printing in selected language - currently including English, Chinese, French, German, Japanese, Portuguese, Russian and Spanish
• Ultimate Data Security - The proprietary NanoPhotometer® Operating System (NPOS) protects data in a secure environment immune to known malicious software.
• Universal Data Output - every NanoPhotometer® is able to generate formatted Excel and PDF document files for data processing or archiving of measurements on the lab network
• Flexible Unit Control - Mobile and easy control of the NanoPhotometer® is possible via Wi-Fi from tablets (Android OS & iOS). Easy control from PCs (Windows & Mac) with fast and flexible connection options including Wi-Fi, USB and LAN.
• Confidence with Blank Control™ - Be sure that your data are precise with Implen's unique Blank Control™ feature. Blanks with high background or residues from previous users are the main cause for inaccurate readings. Blank Control™ will protect you from wasting time and precious sample on inaccurate readings caused by high background blanks or inappropriate cleaning.

Click here to shop the updated models NP60 NanoPhotometer® and N50 Spectrometer.

Implen NanoPhotometer® C40 Spectrophotometer

Powerful
Built-in computer with a high performance Q7 quad core 1 GHz processor and 8 GB of onboard memory provides rapid analysis and easy data storage.

Mobile
Spectroscopy can now be taken anywhere. The optional integrated battery pack provides up to 8 hours of stand-alone battery powered operation.

Easy
NPOS Operating System: intuitive graphical user interfaces (GUI) providing one-step method access, pre-programmed and customizable applications based on the ultimate level of data security.

Flexible
Control your NanoPhotometer® via Touch Screen / Smartphone / Tablet / PC.
Equipped with Wi-Fi, USB A/B, HDMI, and LAN interface connections. Define and store your own methods.

Fast
Turn on and instantly measure without lamp warm-up time. Full scan capability from 200 - 900 nm provides rapid and complete sample analysis in only 3.5 sec.

Upgradable
The C40 NanoPhotometer® can be upgraded to a full microvolume Spectrophotometer using Implen's proven Submicroliter cell which utilizes its patented Sample Compression Technology. Being able to measure 0.3µl samples you will have access to comprehensive life science methods and application detecting concentrations from 2ng/ul up to 18,750 ng/ul.

Disposable Cuvettes and Caps

MTC™ Bio's disposable cuvettes are compatible with most popular spectrophotometers. Manufactured from high-quality, optically clear polystyrene. They are intended for determinations in the 340 to 800 nm (visible) wavelength range. Available in 3 sizes: 1.5 mL micro, 2.5 mL semi-micro, and 4.5 mL macro. All sizes are 12.5 mm square and 45 mm height and are compatible with various spectrophotometer models, including Carolina®, Spectronic®200, Spectronic®20 and 20D, Spectronic®Educator, Genesys™, and Accuris SmartDrop™.

Caps are available and can be ordered separately.

• Fits most spectrophotometers and photometers
• Polystyrene for use in visible range (340-800 nm)
• Dust-proof, non-scratch protective packaging
• Absorption reproductivity error of ≤1%

Specifications


Path Length	0.39 In. | 10 mm
Dimensions (D x W x H)	0.49 x 0.49 x 1.77 In. | 12.5 x 12.5 x 45 mm
Wavelength Range	340 to 800nm (Visible)
Material	Polystyrene
Temp Range	4°C to 70°C
Absorption	Less than + / - 1%



VIS and UV-VIS Cuvettes

Polystyrene (VIS) and Methacrylate (UV-VIS) Cuvettes. Optically superior designs specifically for fluorimetry make this an excellent choice for nephelometry and spectrophotometry. A negligible variation in absorbance between the 4 optical sides allows readings from any side. The polystyrene cuvettes are accurate in the 340 to 750 nm visible spectral range. The methacrylate cuvettes are accurate throughout the 285 to 750 nm UV-VIS spectral range. Standard 1 cm light path.

Disposable VIS and UV-VIS cuvettes

Cuvettes, UV-VIS Range Semi-Micro, 1.5 mL (Item 302225-0002)

Injection molded from a superior grade of methacrylate designed for accuracy throughout the VIS-UV spectral range from 300 nm to 750 nm. Excellent optical qualities throughout the spectral range make these cuvettes perfect for scanning small volumes, enzyme rate reactions, and standard curve determinations. Windows: 5 x 23 mm.

Cuvettes, Visible Range Semi-Micro, 1.5 mL (Item 302205-0002)

These exceptionally fine-quality polystyrene cuvettes are designed for assays throughout the 340 nm to 750 nm visible spectral range. A standard 1 cm light path and recessed windows provide maximum light transmission. Scale down your assay volumes to save on costly reagents using these specially designed cuvettes that have a minimum filling volume of 1.2 mL. Windows: 5 x 23 mm.

Cuvettes, Visible Range Macro, 4.5 mL (Item 302195-0002)

Designed for assays throughout the 340 nm to 750 nm visible spectral range. These specially designed cuvettes handle up to 4.5 mL total volume with a minimum filling volume of 2.5 mL and a maximum of 4.5 mL. Molded arrow indicates the direction of transmission for optimal signal and reproducibility. Windows: 10 x 35 mm


DiluCell™ Disposable Cuvettes

DiluCell™ provides automatic dilution of higher concentrated samples for standard 1 cm cuvette-compatible spectrophotometers. DiluCell™ 10 allows automatic 1/10 dilutions. Combined with small sample volume requirements and bubble-free filling, the DiluCell™ allows for convenient spectrophotometric analysis from 340 – 1100 nm.

Previously it was necessary to use standard cuvettes with a volume of at least 1 ml and additionally to dilute the sample manually. DiluCell™ from Implen allows for lower sample volume requirements and provides automatic virtual sample dilution. Due to the unique design of DiluCell™ cuvettes, the light-path is reduced from the standard 10 mm to 1.0 mm (DC 10). According to the Lambert Beer Law, this shortened pathlength results in an automatic sample dilution by factor 10 (DC 10). Automatic dilution with DiluCell™ saves time and excludes dilution errors and cross contaminations.


Electroporation Cuvette

These cuvettes are compatible with most electroporation systems. The cap has been designed to improve aseptic handling techniques, while the lip and positive seal reduce potential aerosol and contamination issues. Available in 1 mm, 2 mm, and 4 mm gap sizes with individual color caps. Every cuvette is guaranteed sterile, packed using gamma irradiation, and has a simple tear wrapper for easy access when you need it. All 1 mm and 2 mm cuvettes have a tapered V bottom so that reduced sample volumes can be used while aiding sample pick up and minimizing dead volumes.

The Cell Projects range of HiMaX Electroporation cuvettes is designed to maximize molecular electroporation and electrofusion efficiencies for Bacteria, Yeast, Insects, Plants, and mammals. Each batch of cuvettes must undergo rigorous testing at several stages during the manufacturing process for engineering tolerances, biocompatibility, and sterility before being Quality tested for optimal and reproducible impedance measurements.

All batches are checked to optimize bio- and Transfection compatibility. Stringent use of high-quality polycarbonate and chemicals ensures consistent, uniform pulse generation and improved gene transfer.

The molding process ensures extremely high tolerances so that the electrodes have a consistent gap and parallel configuration. The electrodes are also cleaned chemically and physically to fully optimize the cuvette for high transformation efficiencies.


Visable and UV Cuvettes

Semi-Micro Cuvette 1.5 mL

Implen OD600®

Enhancing Microbial Growth Analysis, the Implen OD600® offers a cutting-edge solution designed to streamline and elevate your laboratory measurements. Featuring two built-in programs, OD600 and McFarland, along with a sample-list function for easy data management and export, this device offers unparalleled accuracy and convenience.

The OD600 program enables precise monitoring of bacterial growth in liquid culture media by measuring the optical density at 600 nm, essential for determining growth stages and optimal harvesting conditions. The McFarland program simplifies the estimation of cell suspension density, aiding in tasks such as antimicrobial susceptibility testing and bacterial inoculum preparation.

The Implen OD600® is ideal for diverse laboratory environments worldwide, thanks to its user-friendly design, robust data management capabilities, and seamless LIMS integration. Its multilingual support and adaptable sample compatibility further enhance its versatility. This makes the Implen OD600® perfect for various industries and applications, including microbiology, biotechnology, pharmaceuticals, water quality monitoring, breweries and wineries, the food and beverage industry, clinical and medical research, environmental science, and industrial applications.

Benefits

• Accurate Growth Monitoring: Track bacterial growth phases—from lag to log and beyond—to ensure cells are harvested at peak viability.
• Mobility: Unlimited mobility, suitable for use in fieldwork, safety cabinets, and in incubation chambers, even under anaerobic conditions. (Certain restrictions or limitations apply)
• Efficient Data Management: 4GB internal storage allows for storing over 500,000 measurements. Ensures efficient data management and quick access to all previously measured sample data through the sample list feature.

Product Features

• Higher concentration range, accuracy and reproducibility!
• Pre-programmed with Intuitive OD600 & McFarland Applications
• Utmost Compatibility (DiluCell, Cuvette, Tubes) Without Adapters
• User-friendly, Multilingual Interface
• Stand-alone Operation
• Glove-Compatible 3.5 In. Touch Screen Display
• Integrated Battery with a Runtime > 8 hours (continuous use)
• High Precision Versatile Measurements, Linear up to 4 A
• Data Export to USB in .cvs and .xls Formats
• Large Data Storage & Universal Capabilities
• Easy LIMS integration via WiFi, LAN/Ethernet (REST API PUSH)
• Extremely Lightweight, Compact and Portable
• No Maintenance or Recalibration Needed Ever!

Applications

• Microbiology and Biotechnology: Accurate microbial growth and cell density measurements.
• Pharmaceuticals: Enhanced bioprocess monitoring and liquid pharmaceutical quality testing.
• Water Quality Monitoring: Compliance with safety standards for drinking water, environmental monitoring, and wastewater treatment.
• Breweries and Wineries: Fermentation process control and product quality assurance.
• Food and Beverage Industry: Product quality assurance and microbial growth monitoring.
• Clinical and Medical Research: Diagnostic assay development and vaccine production.
• Environmental Science and Industrial Applications: Ecosystem monitoring, soil microbiology studies, chemical manufacturing quality control, and bioremediation projects.
