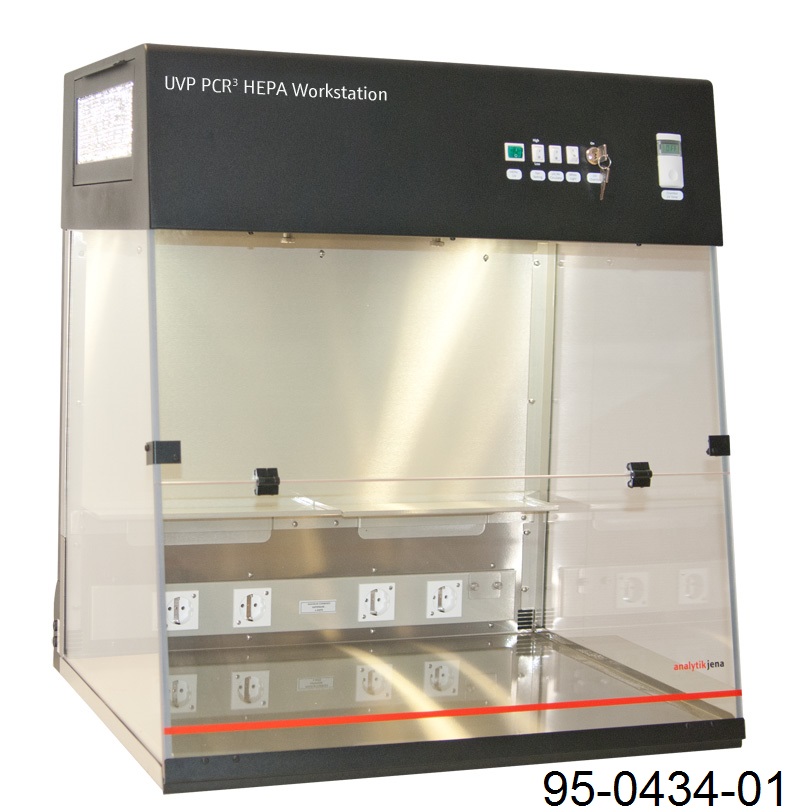

UV3 HEPA Sterilizing PCR Cabinet

Item #:ACRPCRHOOD5

2 year Warranty

Multi-featured equipment for eliminating PCR contamination! Two HEPA/UV PCR models now available: NEW smaller HEPA/UV PCR Cabinet and larger HEPA/UV PCR Workstation

PCR equipment brings together UV irradiation and antimicrobial stainless steel to create a dual-attack environment against PCR contamination. HEPA/UV PCR models feature a four-stage filter assembly plus to UV to provide eliminate contamination.

Filtered and sterilized air circulates from the UV/HEPA system into the PCR chamber via positive pressure laminar airflow with high/low settings. Control potential PCR contamination with built-in UV for inactivation of DNA between experiments. Shortwave UV can be used as a standard laboratory practice to reduce surface and airborne contaminants in the chamber.

  • Four stage filter system:
    • Pre-filter captures large dust particles
    • Carbon filter (activated charcoal) eliminates gases, odor, smoke and also reduces ozone to improve microarray data quality
    • HEPA (high efficienty energy particulate) filter blocks particles down to 0.3 microns
    • Zerozone catalyst grid removes ozone
  • Three UV (UV3) sources:
    • Filter area
    • Chamber work area
    • UV/air recirculator
  • A 30-minute timer sets shortwave UV exposure to decontaminate apparatus and work chamber for specific times
  • Antimicrobial coated stainless steel reduces bacterial growth
  • A safety shut-off switch automatically turns the ultraviolet light off when the door is open
  • Place large instruments on the work area or tubes, flasks and pipettes on the two removable shelves
  • Built-in power outlets allow operation of equipment for use in PCR applications
  • Acrylic panels are specially formulated to block UV wavelengths below 400nm
  • 1 year warranty

HEPA / UV PCR Systems

STANDARD UV PCR Systems

UV3 HEPA PCR Cabinet

UV3 HEPA PCR Workstation

UV PCR Cabinet

UV2 PCR Cabinet

UV PCR Workstation

UV2 PCR Workstation

Item Number

95-0434-01

95-0438-01

95-0437-01

95-0436-01

95-0367-01

95-0439-01

UV Sources

3

3

1

2

1

2

UV Light Sources

254 nm, White 8-watt

254 nm, White 8-watt

254 nm, White 8-watt

254 nm, White 8-watt

254 nm, White 8-watt

254 nm, White 8-watt

Stage Filters

4

4

N/A

N/A

N/A

N/A

Power Outlets

2

4

2

2

4

4

Shelves

2

2

2

2

2

2

UV Timer

Yes

Yes

Yes

Yes

Yes

Yes

Material

Stainless Steel

Stainless Steel

Stainless Steel

Stainless Steel

Stainless Steel

Stainless Steel

Acrylic Panels

below 400 nm

below 400 nm

below 400 nm

below 400 nm

below 400 nm

below 400 nm

Exterior Dimensions (WxDxH) (in)

21.4 x 24 x 32.5

29 x 24 x 32.5

21.4 x 24 x 28.7

21.4 x 24 x 28.7

29 x 24 x 28.7

29 x 24 x 28.7

Interior Dimensions (WxD) (in)

19.7 x 21.4

27.8 x 21.4

19.7 x 21.4

19.7 x 21.4

27.8 x 21.4

27.8 x 21.4

Electrical

115V - 60 Hz, 230V - 50 Hz, 100V - 50/60 Hz

Warranty

1-year; Tube and filters are 90-days

24.00
Each
26.00
Each
81.00
Each
SKU Number Type Style Size Price Quantity Add to Cart
95-0434-01 Hood HEPA Sterelizing PCR Cabinet 32.5H x 21.4W x 24D in.
5890.00
Each
95-0438-01 Hood HEPA Sterelizing PCR workstation 32.5Hx 29W x 24D in.
6290.00
Each
98-0077-01 Table Stainless Steel 36H x 31.5W x 26D in.
1115.00
Each
